Outdoor Unit Si04-306
162 Removal Procedure

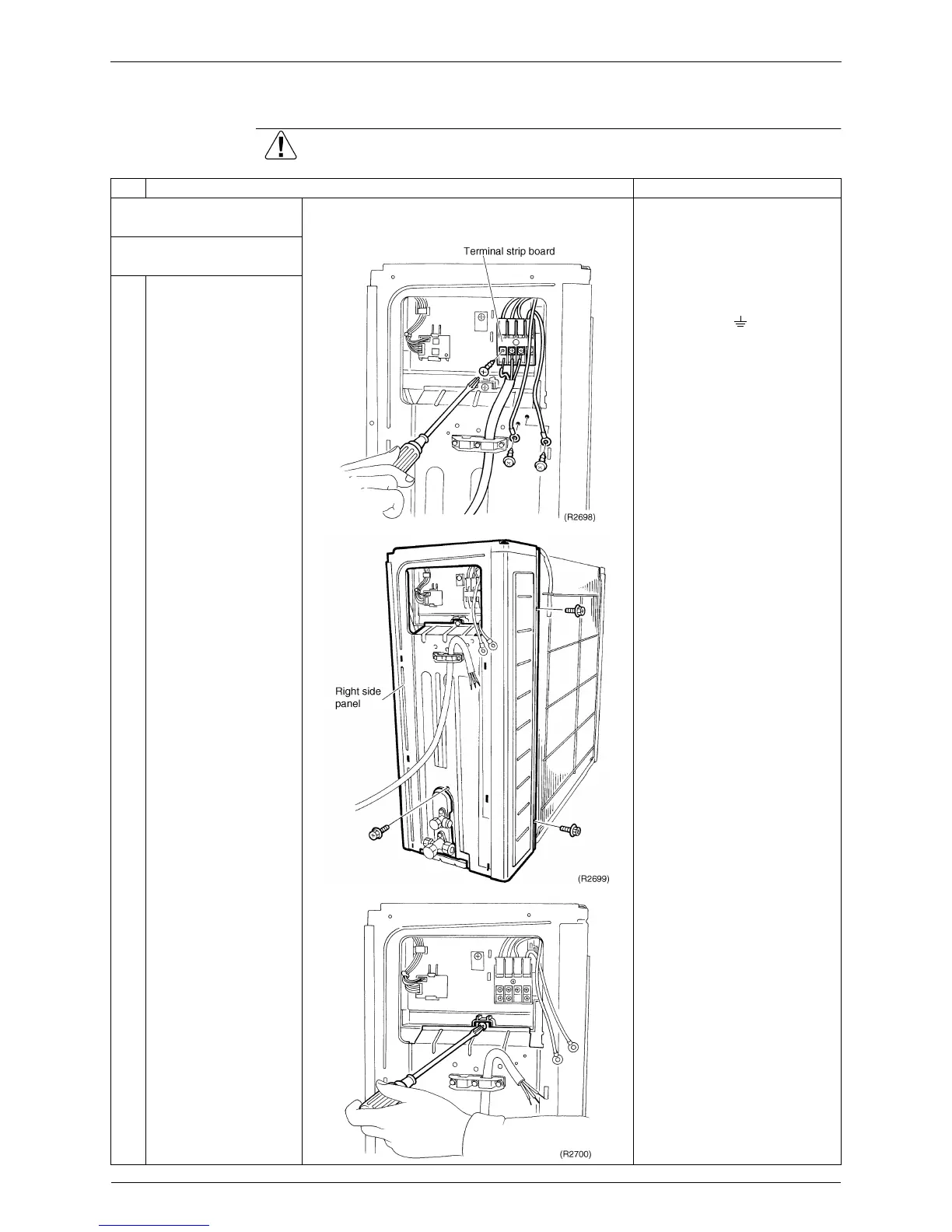

2.3 Removal of the PCB / Electrical Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

Remove the top panel
and the front panel.
1. Remove the right side
panel.
Terminal strip number
black (1) ----- power supply
white (2) ----- power supply
red (3) ----- transmission
yellow / green ( ) ----- earth
1
Disconnect the three
connection wirings and
the two earth wires.
2
Loosen the three
screws of the right side
panel.
3
Loosen the fixing screw
of the electrical box.
