Piping Diagrams Si04-306
184 Appendix

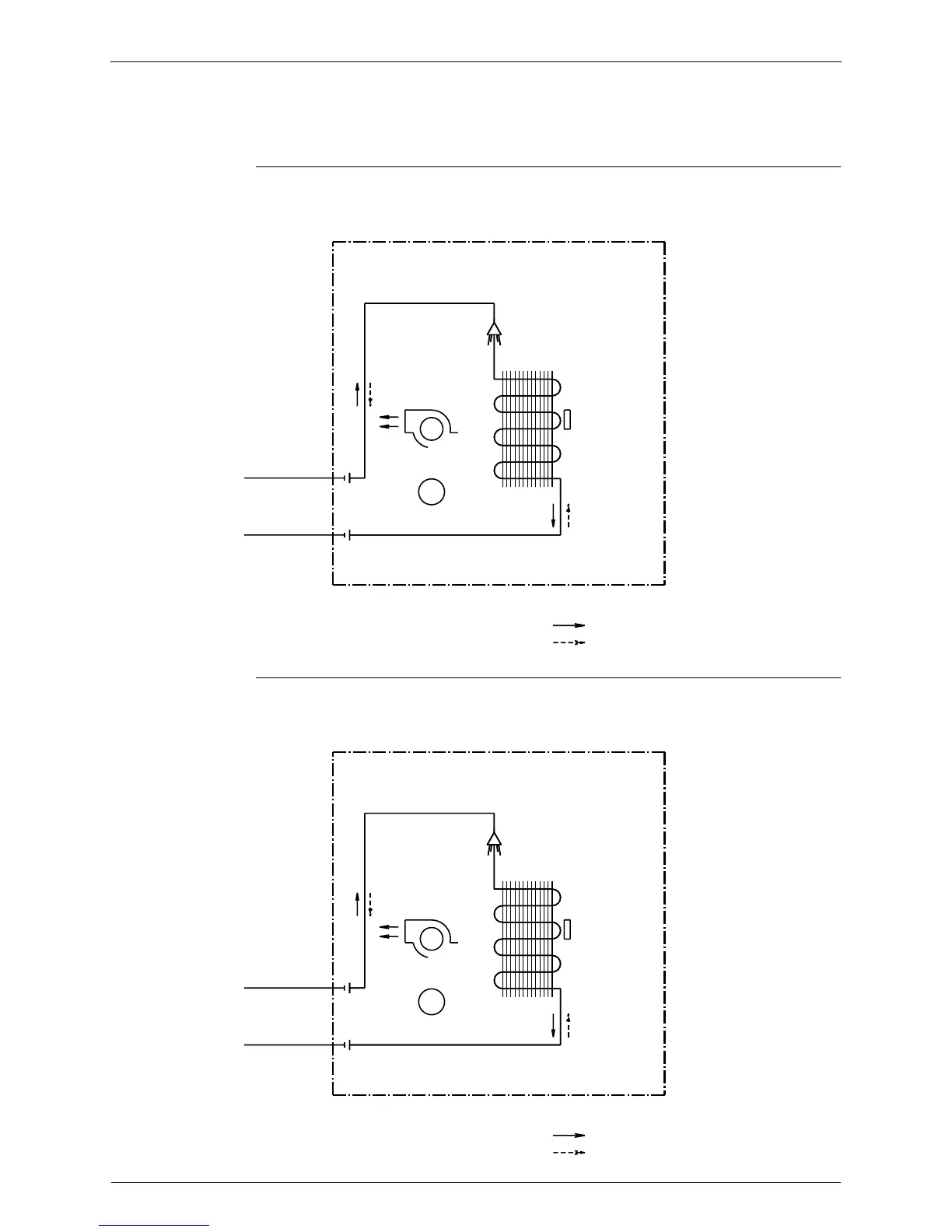

1. Piping Diagrams
1.1 Indoor Units
FTK(X)S 50/60 BVMA, FTK(X)S 50/60 BVMB, FT(Y)S 50/60 BVMB
FTKD50BVM, FTK(X)D50BVMA, FTK(X)D50BVMT
FTK(X)S71BVMA, FTK(X)S71BVMB
FTKD60BVM, FTK(X)D60BVMA, FTK(X)D60BVMT, FTKD18BVMS
FIELD PIPING
FIELD PIPING
(
12.7CuT
)
(
6.4CuT
)
CROSS FLOW FAN
FAN MOTOR
(
7.9CuT
)
INDOOR UNIT
(
12.7CuT
)
M
REFRIGERANT FLOW
ON HEAT EXCH.
THERMISTOR
HEATING
COOLING
4D040081A
HEAT EXCHANGER
FIELD PIPING
FIELD PIPING
(
15.9CuT
)
(
6.4CuT
)
CROSS FLOW FAN
FAN MOTOR
(
7.9CuT
)
INDOOR UNIT
(
12.7CuT
)
M
REFRIGERANT FLOW
ON HEAT EXCH.
THERMISTOR
HEATING
COOLING
4D040082A
HEAT EXCHANGER
