Daikin RXYSQ-TAV User Manual

6 Configuration
Installation and operation manual
18
RXYSQ8~12TMY1B
VRV IV-S system air conditioner
4P400263-1F – 2017.02

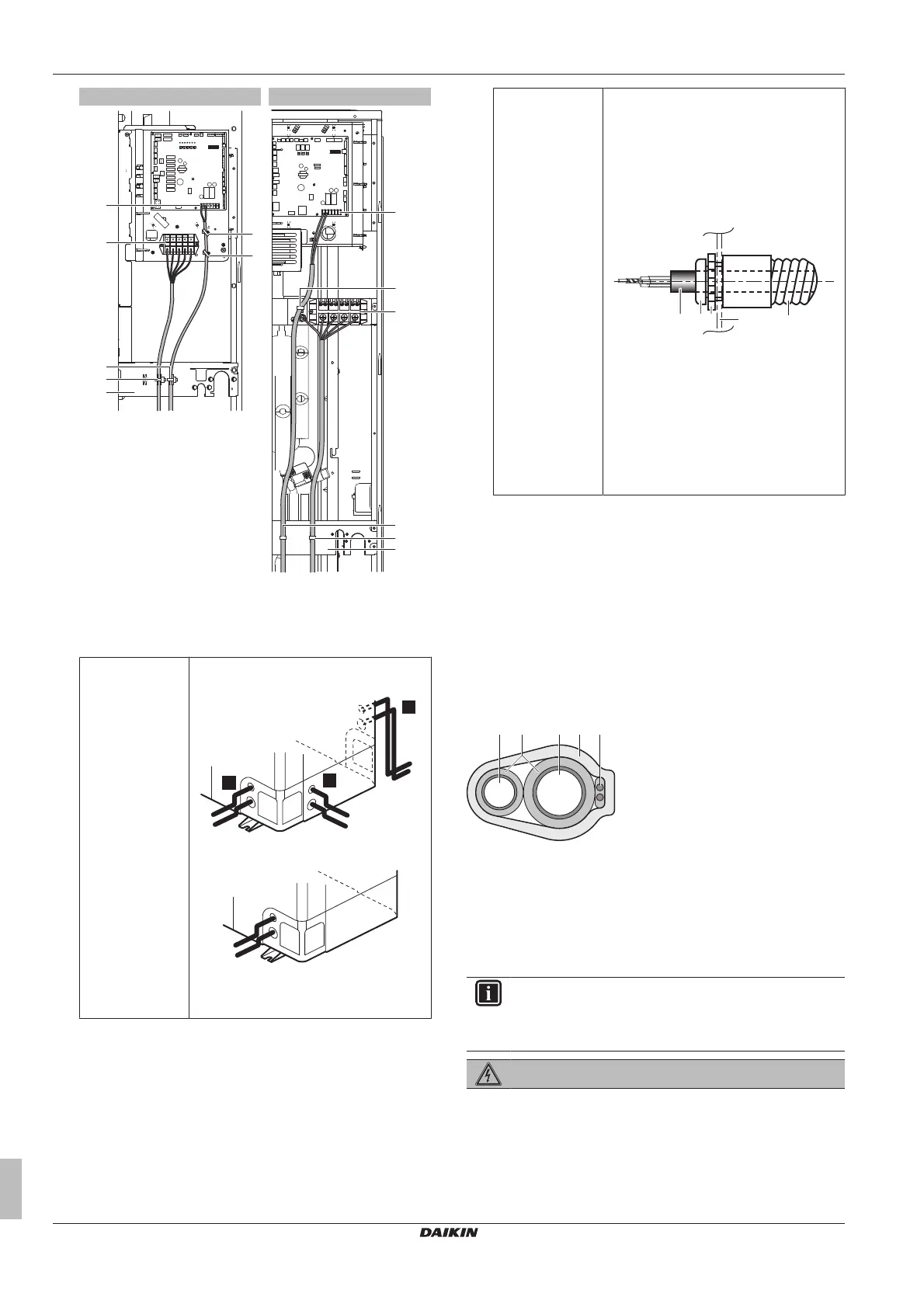

X1M
(A1P)
X1M
a
a
b
X1M
X1M
(A1P)
a
a
b
a
a
a
8 HP
10+12 HP
a Cable tie
b Attachment plate
X1M Power supply
X1M (A1P) Transmission wiring
5 Route the wiring through the frame and connect it to it.
Routing through
the frame
In case of RXYSQ8: Choose one of the 3
possibilities:
a
b
a
b
a
b
2
3
1
In case of RXYSQ10+12:
a
b
a Power supply cable
b Transmission wiring cable
Connecting to the
frame
When cables are routed from the unit, a
protection sleeve for the conduits (PG
insertions) can be inserted at the knockout
hole.
When you do not use a wire conduit,
protect the wires with vinyl tubes to
prevent the edge of the knockout hole from
cutting the wires.
a b c d e
A B
A Inside of the outdoor unit
B Outside of the outdoor unit
a Wire
b Bush
c Nut
d Frame
e Hose
6 Reattach the service cover.
7 Connect an earth leakage circuit breaker and fuse to the power
supply line.
5.8 Finishing the outdoor unit
installation
5.8.1 To finish the transmission wiring
After installing the transmission wires inside the unit, wrap them
along with the on-site refrigerant pipes using finishing tape, as
shown in figure below.
a bc de
a Liquid pipe
b Gas pipe
c Insulator
d Transmission wiring (F1/F2)
e Finishing tape
6 Configuration
INFORMATION
It is important that all information in this chapter is read
sequentially by the installer and that the system is
configured as applicable.
DANGER: RISK OF ELECTROCUTION
