Outdoor Unit - 50~75 Class SiBE121021_C
388 Removal Procedure

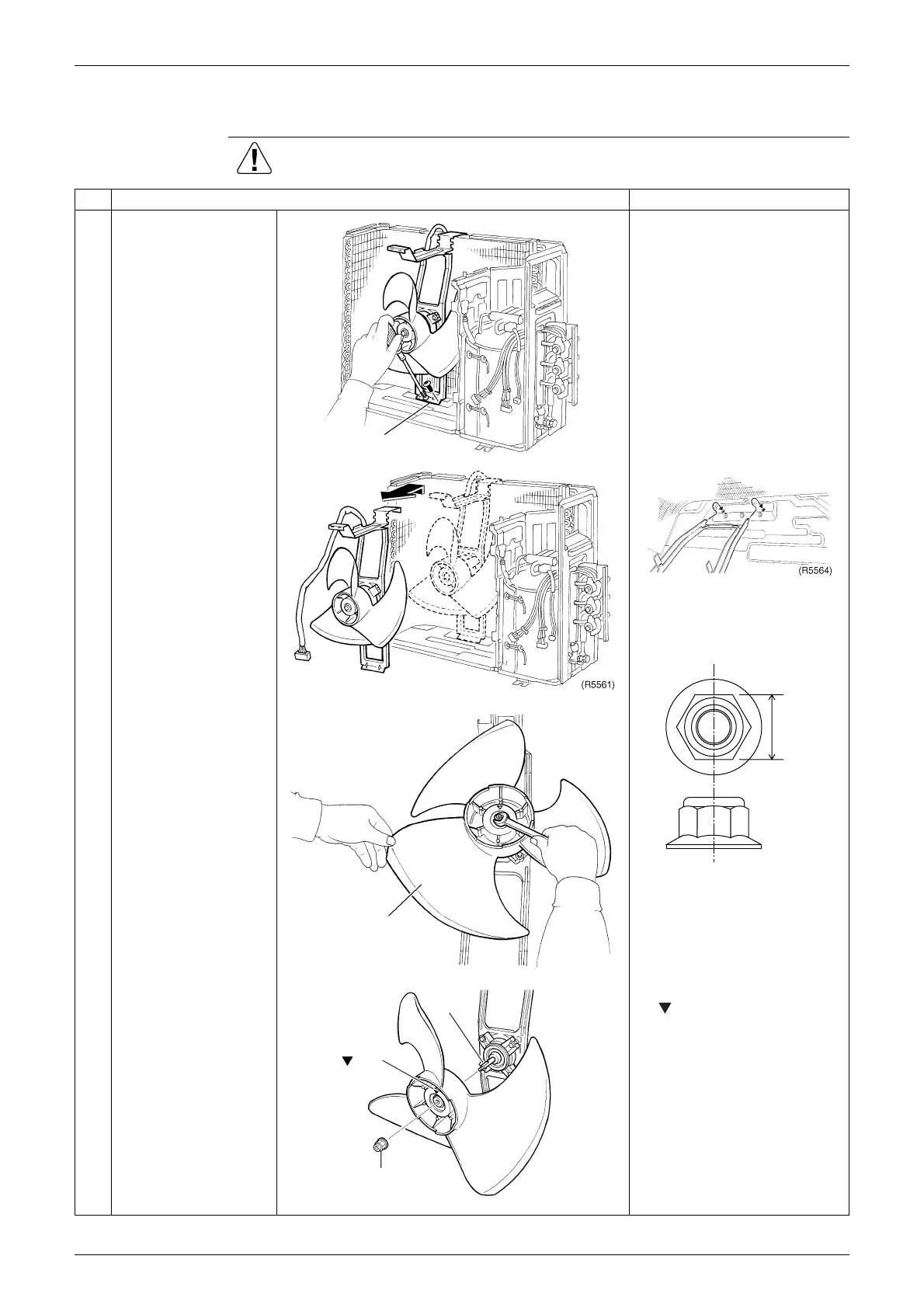

1.4 Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the 2 screws
of the fan motor fixing
plate.
îš„
Remove the outer panels
and plates.
îš„
Remove the electrical box.
2
Remove the fan motor
fixing plate.
îš„
When reassembling, fit the
lower hooks.
îš„
Nut size: M6
îš„
When reassembling, align
mark of the outdoor fan
with D-cut section of the
motor shaft.
3
Remove the nut and
remove the outdoor fan.
Fan motor fixing plate
(R12908)
10 mm
(R12236)
Outdoor fan
(R12909)
(R14592)
Nut
D-cut
mark
To Next Page
