Removal Procedure 401
2. Outdoor Unit - 80/90 Class
Note: The illustrations are for heat pump models as representative.
2.1 Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
External appearance

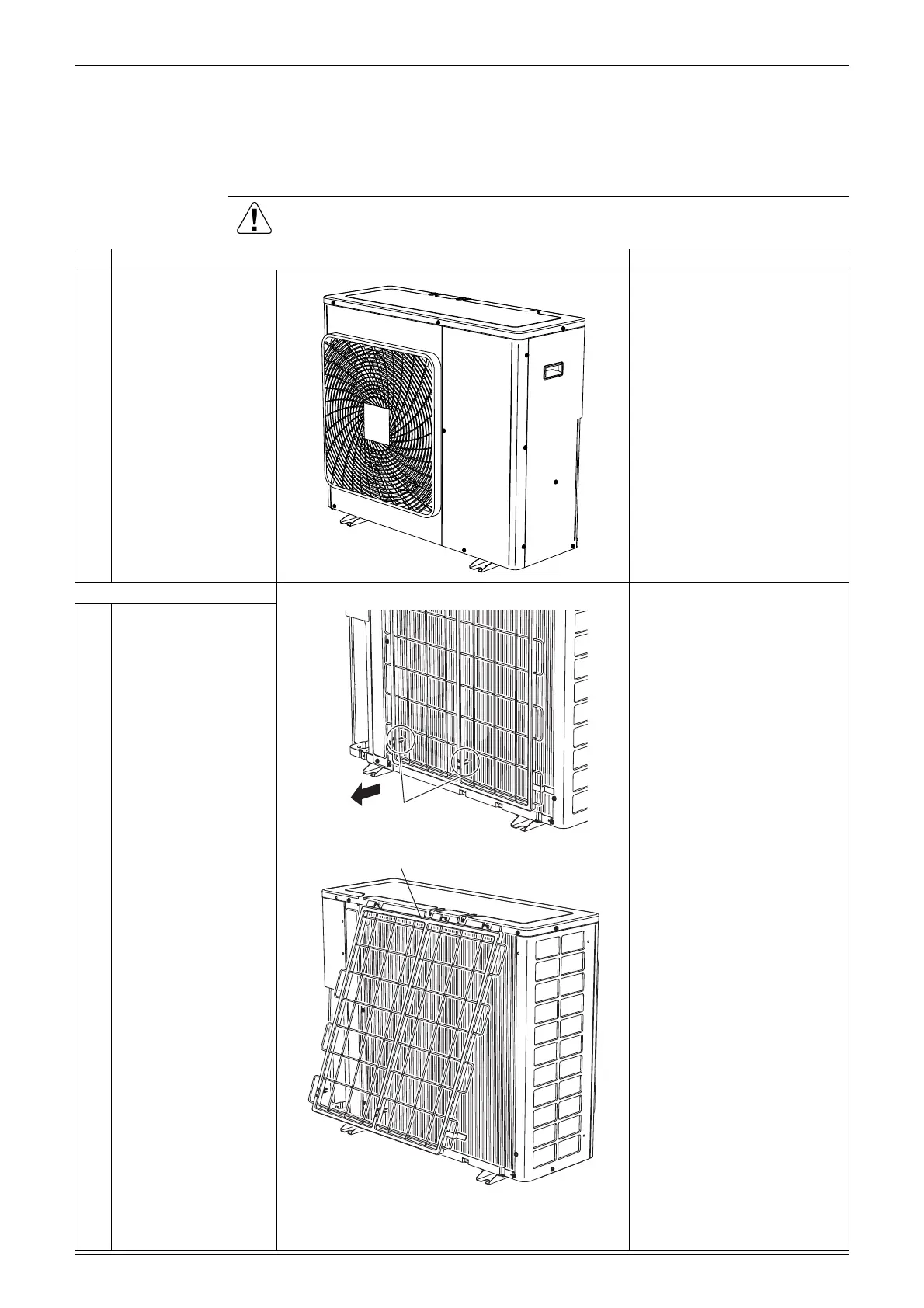

1. Remove the suction grille.

The hooks are secured in
the clearances of the heat
exchanger fins.
1
Release the 2 hooks at
the bottom first.
(
R6368
)
Hook
Rear side
(R14612)
Suction grille
(R6370)
