434 Removal Procedure
2.6 Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Open the sound blanket
(outer).
2
Remove the sound
blanket (top upper).

The sound blanket is fragile.
Carefully pass the blanket
through the discharge pipe.
3
Remove the screw from
the partition plate and
push the plate to the left
slightly for easy work.

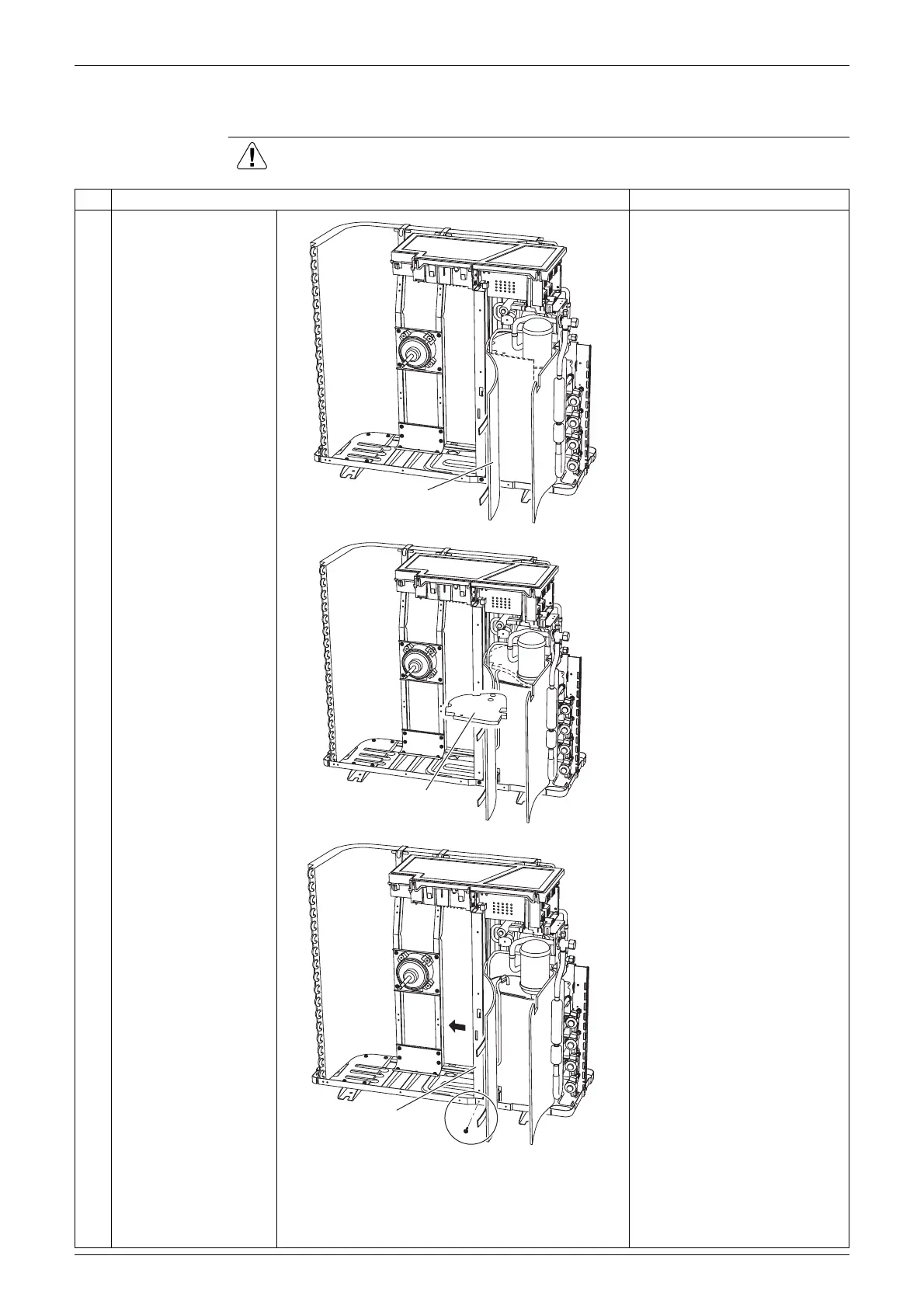

(R10433)
Sound blanket
(outer)
(R10434)
Sound blanket (top upper)
(R10435)
Partition plate
