Function of Indoor Unit (RA Models) SiBE121021_C
86 Function and Control
1.3 Operation Starting Control
Wall Mounted Type: FTXG and CTXG Series
The system carries out the following control at the beginning to conduct every functional parts
properly.
1. Opening the front panel fully
2. Output of the
∆
D signal after the front panel starts moving
3. Opening the flap fully after the front panel opens fully
4. Making the fan rotate when the flap passes over the fan-banned area

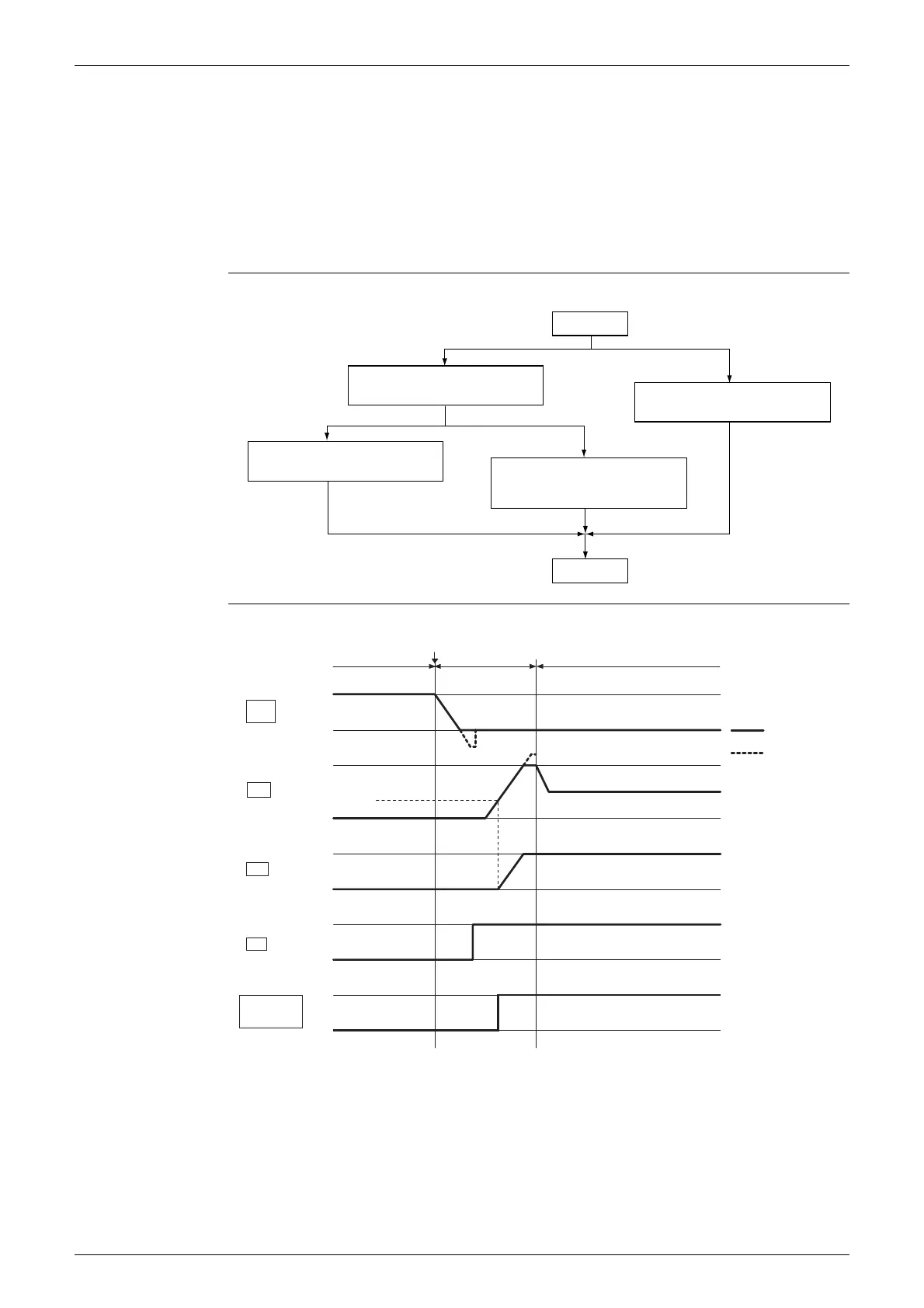

Control Flow
Timing Chart
(1) Opening the front panel fully
Start
Running
(2) Output of the ∆D signal after
the front panel starts moving
(4) Making the fan rotate when
the flap passes over the
fan-banned area
(3) Opening the flap fully
(R14049)
Fully close
OFF
Start
ON
Flap
Under running control
Under operation mode control
Under operation mode control
Fan
∆D
Fully open
Fully open
Fully close
ON
OFF
OFF
Output
ON
∆0
Fan-banned area
(R11910)
Front
panel
Force supply
(from the
outdoor unit)
The outdoor unit provides force
when it receives the ∆D signal.
Operation
starting control
: Actual position
of panel or flap
: Additional
control of motor
