Danfoss ECL COMFORT User Manual

The grey
side of the
ECL Card
Basic set-up
General principles
When the controller is connected and operating you can
check and adjust all or some of the basic settings. Turn the
ECL Card so that the grey side is facing you (see the example
below).

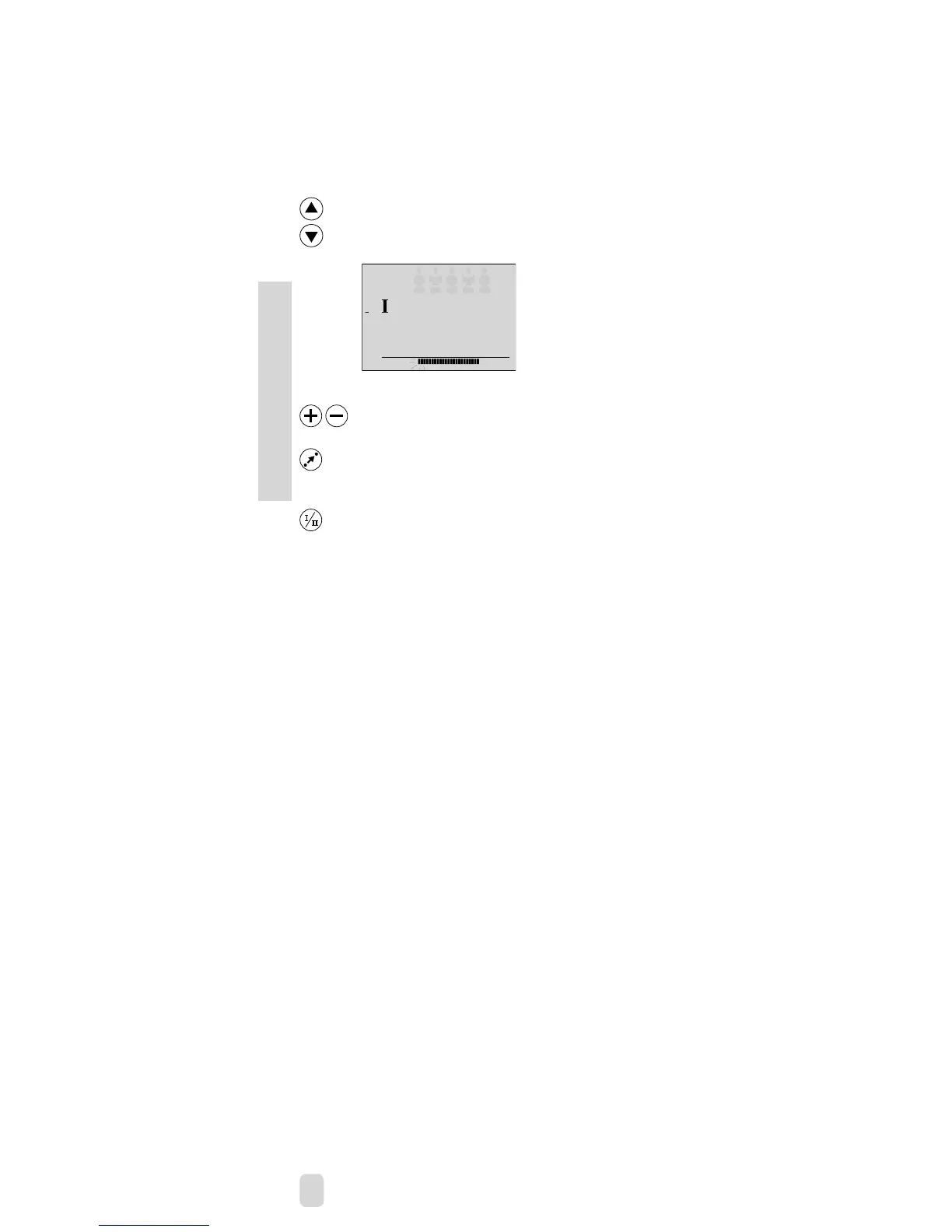

Use the arrow buttons to move from line to line of
the ECL Card, for example line 2:
Circuit
Line
Setting
to be
adjusted
1
1
ON
2
ON
09
2
04
2
3
ON
Value in range indicator
Use the plus / minus buttons to adjust the
settings.
In some displays more than one setting or value
can be adjusted. Use the shift button to switch
between the options.
The circuit selector shifts between circuit I
and II. You can adjust all settings and service
parameters individually.
Update of the ECL Card after maintenance and service
All new settings can be stored on the ECL Card. For details
about copying, see section 34.
Adjusting the ECL Card
settings
16
