The yellow

side of the

ECL Card

Schedule,

DHW circulation pump (P3)

Choose the schedule of the circulation pump

by pushing the button until there is no circuit

indication (display / lights).

Go to display C.

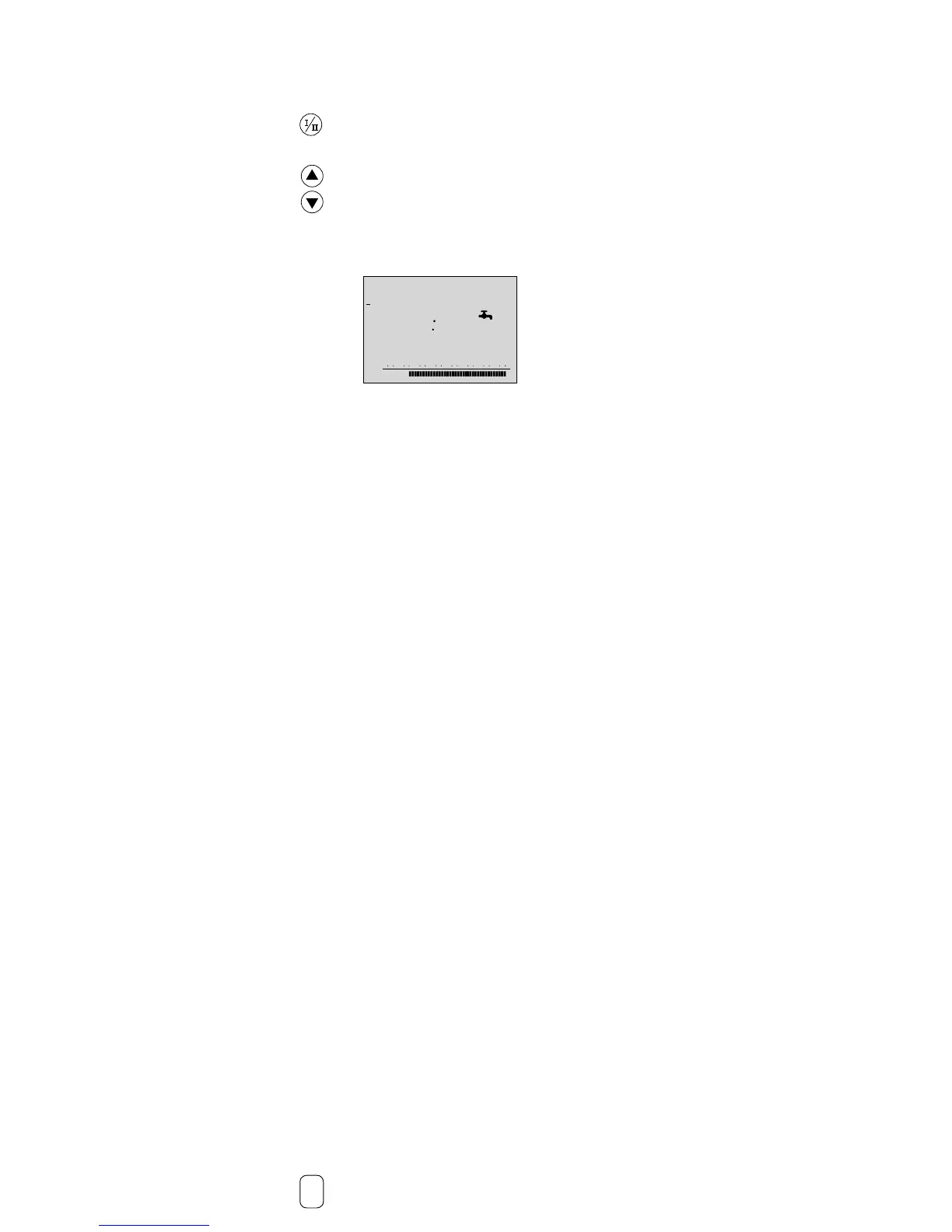

Schedule of the circulation pump (P3) - display C

Line

Start / end time

0 3 6 9 12 15 18 21 24

Circulation pump schedule

There is one common schedule for all days of the week.

See section 4 for the setting procedure.

List of Components2
Controller Mode2
Table of Contents3
Before You Start5
- Installation6
- System Settings6
Identifying the System Type6
- Mounting on a Wall12
- Mounting on a DIN Rail12
- Mounting in a Panel12
Mounting the ECL Comfort Controller12
Electrical Connections - 230 V A.C.14
Electrical Connections 24 V A.C15
Electrical Connections - 24 V A.C.16
Connecting and Placing the Temperature Sensors18
- Connecting the Room Panel / Remote Control20
- Override20
Inserting the ECL Card22
- Understanding the ECL Card23
- Basic Set-Up24
Adjusting the ECL Card Settings24
Setting the Time and Date - Line a25
Monitoring Temperatures and System Units - Line B26
Manual Control - Line B27
- The Motorized Actuator27
- The Thermo Actuator27
- Storage Temperature (Circuit II) - Line C28
- Setting the Heat Curve (Circuit I)28
- Heating Cut-Out - Line 130
- Flow Temperature Limits - Line 231
- Room Temperature Influence - Line 332
- Max. Room Temperature Limitation32
- Reference Room Temperature Control33
- Control Parameters - Lines 4-734
- Cut-In and Cut-Out Temperature at DHW Charging - Lines 1-2, Circuit II36
- Controls and Overviews38
Check List38
- ECL Card Settings (Circuit I)40
- ECL Card Settings (Circuit II)41
- Time and Date41
Service Parameters42
Extended Service46
Adjusting the Service Parameters46
- Choice of Room Panel / Remote Control47
- Setback Temperature Dependent on Outdoor Temperature47
- Boost48
- Reference Ramping48
- Optimizing Time Constant49
- Adaptive Function of Room Temperature49
- Inﬂuence on Desired Flow Temperature50
- Optimization Based on Room / Outdoor Temperature51
- Total Stop51
- Pump Exercise52
- Valve Exercise52
- Gear Motor / Thermo Actuator52
- Return Temperature Limitation53
- Return Temperature Inﬂuence - Max. Limitation55
- Return Temperature Inﬂuence - Min. Limitation56
- Time Constant for Return Temperature Limitation57
- DHW Pump Post-Run (P2)57
- DHW Charging Pump Post-Run (P4)57
- Parallel Operation of DHW and Heating Circuits58
- Max. DHW Charging Time59
- DHW Charging Deactivation Time59
- Closed Valve / Normal Operation59
- Compensation of Heat Loss in Circulation Circuit60
- Activation / Deactivation of DHW Circulation Pump During DHW Charging60
- Internal Relationship between Circuits I and II61
- Anti-Bacteria Function Period61
- Desired Temperature for Anti-Bacteria Function61
- Pump P2 in DHW Circuit, Primary Side62
- Assignment (Number) of Heat Meters63
- Function of Temperature Sensor S564
- Override Input Selection65
- Acceptable Temperature Deviation below Desired Flow Temperature66
- Acceptable Temperature Deviation above the Desired Flow Temperature67
- Time Interval Alarm before Activation of Alarm Function68
- Motor Protection69
- LON Reset69
- Daylight Saving Time Changeover69
- Master / Slave Address70
Copying with the ECL Card72
- Copy Personal Settings to Additional Controller in Identical Systems73
- Deﬁnitions74
- Factory Settings74
- Hot Points76
- Advantages of the ECL Card78
- Save Your Personal Settings to the ECL Card78
- Restore ECL Card Data79
- Set Your Personal Schedule80
- Monitor the Current Schedules80
- Change the Schedules80
- Change the Schedule for Circuit II80
- Add an Extra Comfort Period81
- Remove a Comfort Period81
- Cancel Changes in Your Personal Settings81
Select Circuit Mode82
Set Your Room and DHW Charging Temperature83
- Choose Your Favorite Display (Circuit I)84
- Room Temperature - Display a84
- System Information - Display B84
- Today's Schedule - Display C84
- Choose Your Favorite Display (Circuit II)85
- DHW Temperature - Display a85
- Schedule, DHW Circulation Pump (P3)86
- Operating the ECL Comfort Controller87
Set Your Personal Schedule88
Advantages of the ECL Card88
Hot Points88
Deﬁnitions88
