SCANNER AND RADIO BASE LEDS
PRODUCT REFERENCE GUIDE
17
SCANNER AND RADIO BASE LEDS
A specific LED on the QBT/QM2500 Scanner provides information about: good reading
result, battery status and charging status (with USB Type-C only). The Battery Status
information can be easily retrieved by double-tapping with your fingers on top of the
head of the scanner. The following table and figure explain the main colors' combina-
tions provided by the Battery Status LED.
Table 1 - Battery and Recharge LED Description
COLOR
BATTERY
STATUS
Blinking color
(1s ON - 1s OFF)
Green (charge = 50% - 99%)
Red (charge less than 1%)
NOTE: Scanner is unus-
able until 1% is reached
Charge in Progress
through USB Type-C
Solid Green
(charge = 100%)
It goes OFF when Scan-
ner's unplugged
Charge Complete
through USB Type-C
Solid color
(3s time-out)
Green (charge = 50% -
100%)
Amber (charge = 2% - 50%)
Red blinking (charge less
than 2%)
Battery Status

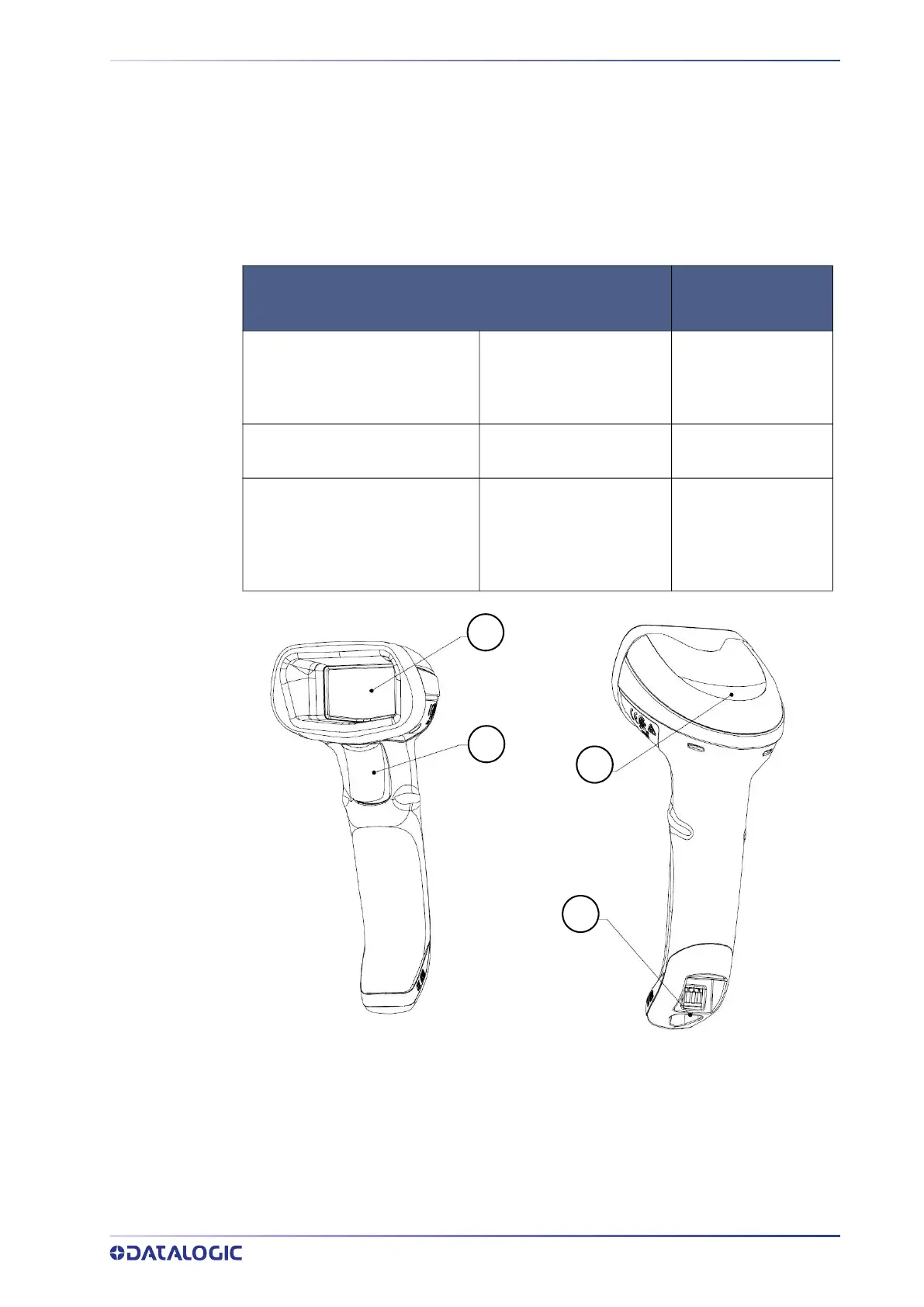

1. Scan Window 3. Battery & Recharge LED
2. Trigger 4. USB Port
1
2
3
4
