Datalogic QuickScan QD2590 User Manual

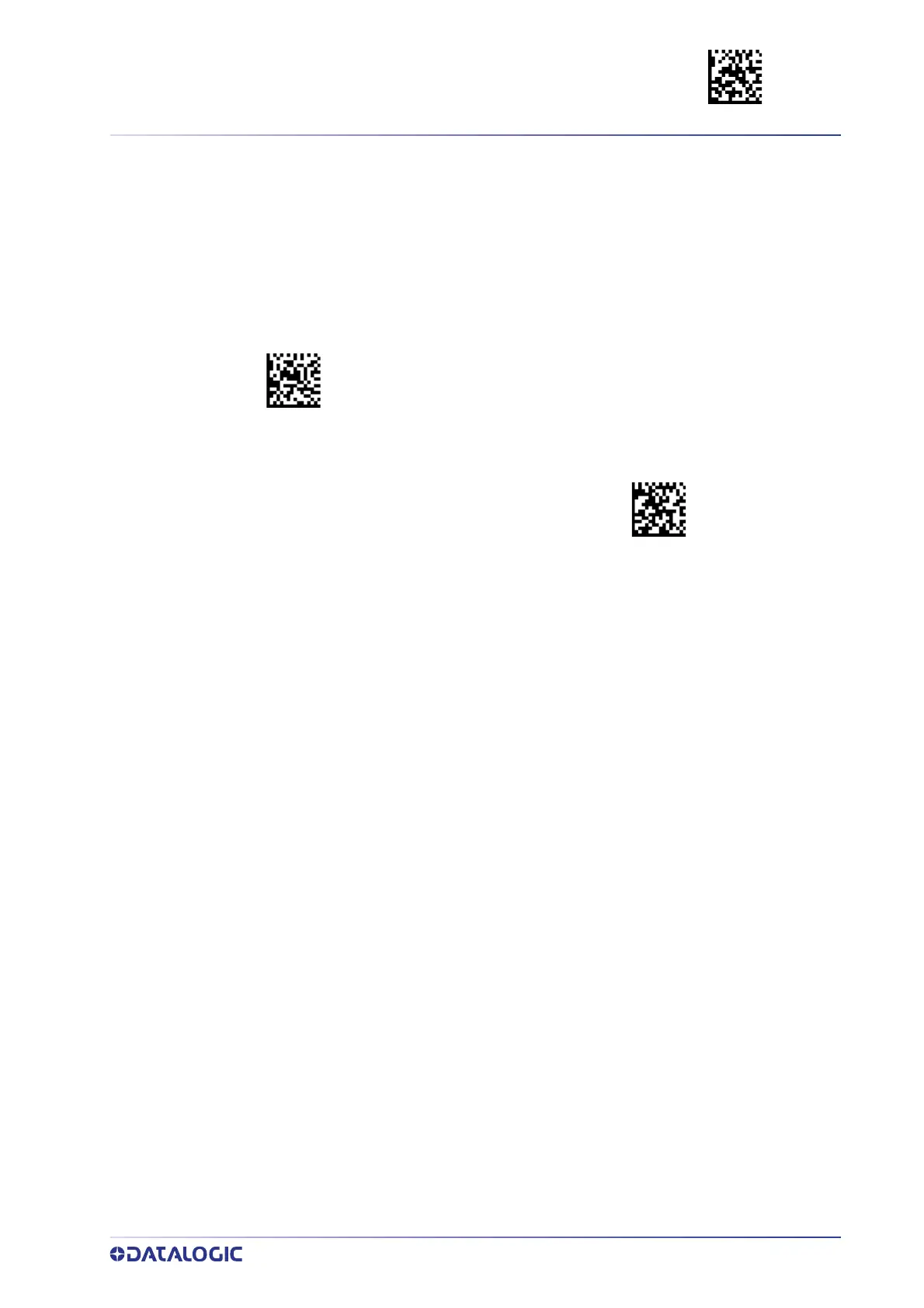

MICRO PDF417 ENTER/EXIT PROGRAMMING MODE
PRODUCT REFERENCE GUIDE 209
Micro PDF417 Set Length 2
This feature specifies one of the bar code lengths for "Micro PDF417 Length Control" on
page 208
. Length 2 is the maximum label length if in Variable Length Mode, or the sec-
ond fixed length if in Fixed Length includes the bar code’s data characters only. Charac-
ters can be set from 0001 to 0366 characters (pad with zeroes) in increments of 01. Any
value greater than 0366 will be considered to be 0366.
See "
Set Length 2" on page 250 for detailed instructions on setting this feature.
Select Micro PDF417 Length 2 Setting
$CMIL2
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in Appendix D, Keypad represent-
ing your desired character(s). End by scanning the
ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL

Length 2 i s 0366 Characters

Datalogic QuickScan QD2590 Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Scanner resolution	0.17 mm
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Codabar 125, Code 11, Code 128, Code 128A, Code 128B, Code 128C, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 3 of 9, Code 32, Code 39, Code 93, DUN 14, DataBar14, Discrete 2 of 5, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, Facing Identification Mark, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), HIBC, IATA, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Intelligent Mail, Interleaved 2 of 5, JAN, Latent image, MSI, Matrix 2 of 5, PDF417, PLANET, POSTNET, Pharmacode, Plessey, PostBar, RM4SCC / KIX, S-Code, Telepen, Trioptic, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 800 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, QR Code
Cable length	2 m
Standard interfaces	USB
Connectivity technology	Wired
Product color	Black
Image formats supported	BMP, JPEG, TIFF
International Protection (IP) code	IP52
Input voltage	5 V
Power consumption	450 mA
Cables included	USB Type-C
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS
Material	Polyvinyl chloride (PVC)
Connector 1	USB C
Product type	USB cable
Connector gender	Male/Male
Brand compatibility	Datalogic
Connector 1 form factor	Straight
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	126 mm
Width	148 mm
Height	68 mm
Weight	145 g
