Dell EMC PowerEdge R350 Service Manual

Air shroud
Removing the air shroud
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Hold the air shroud at both ends and lift the air shroud out of the system.

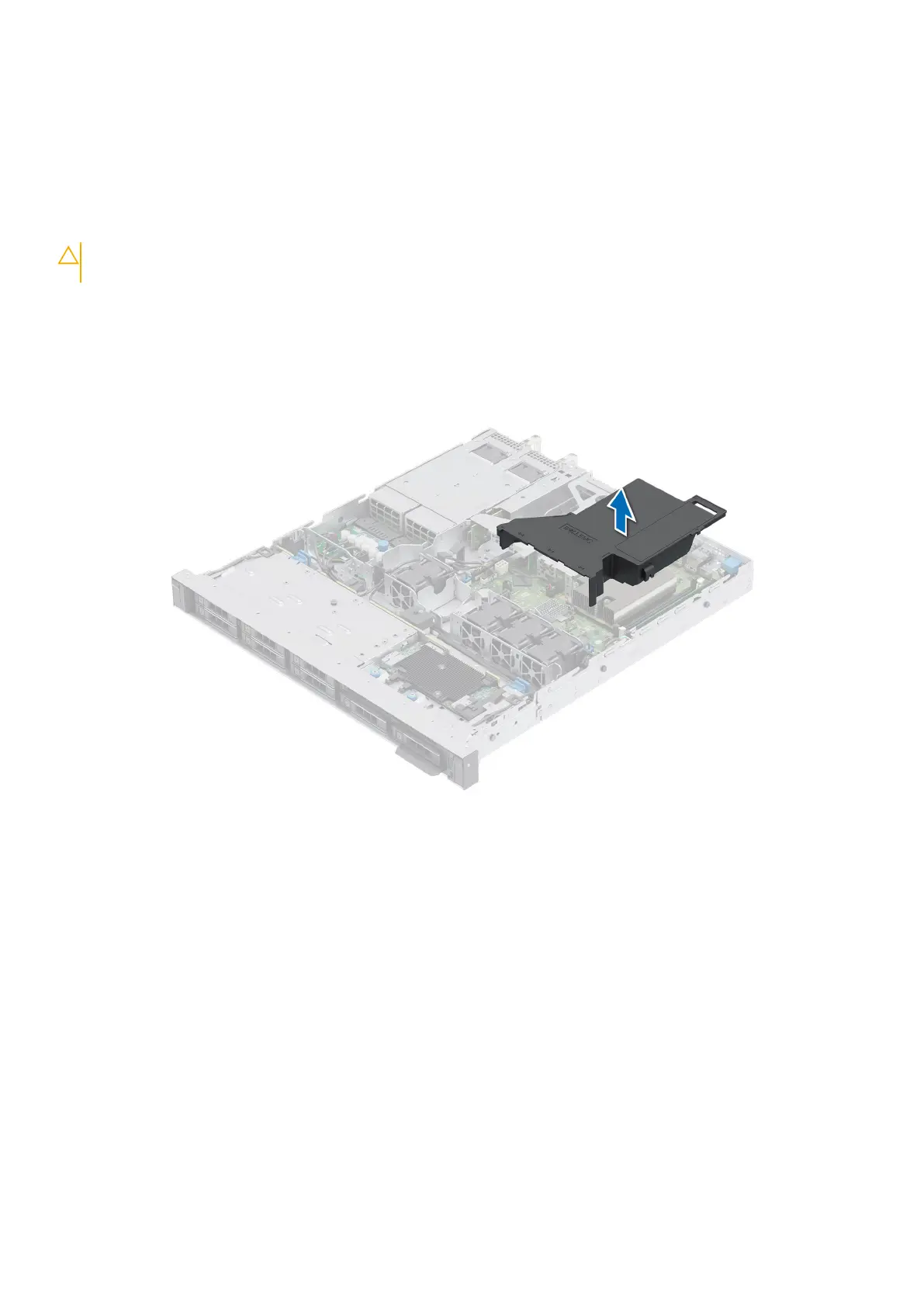

Figure 13. Removing the air shroud
Next steps
Replace the air shroud.
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the slot on the air shroud with the standoff on the chassis.
2. Lower the air shroud into the system until it is firmly seated.
Installing and removing system components
27

Dell EMC PowerEdge R350 Specifications

General

Chassis type	Rack (1U)
Product color	Black
Rack mounting	Yes
Memory slots	4x DIMM
Memory ranking	1
Internal memory	8 GB
Memory clock speed	3200 MHz
Buffered memory type	Unregistered (unbuffered)
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Processor cache	8 MB
Processor model	E-2334
Processor frequency	3.4 GHz
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
On-board graphics card	-
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA III
Total storage capacity	4000 GB
Maximum storage capacity	- TB
Supported RAID controllers	PERC H345
Power supply	600 W
Power cable length	3 m
Power cable current	15 A
Power cable connector 1	C13 coupler
Power supply input voltage	125 V
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Width	- mm
Height	42.8 mm
