Dell EMC PowerEdge R350 Service Manual

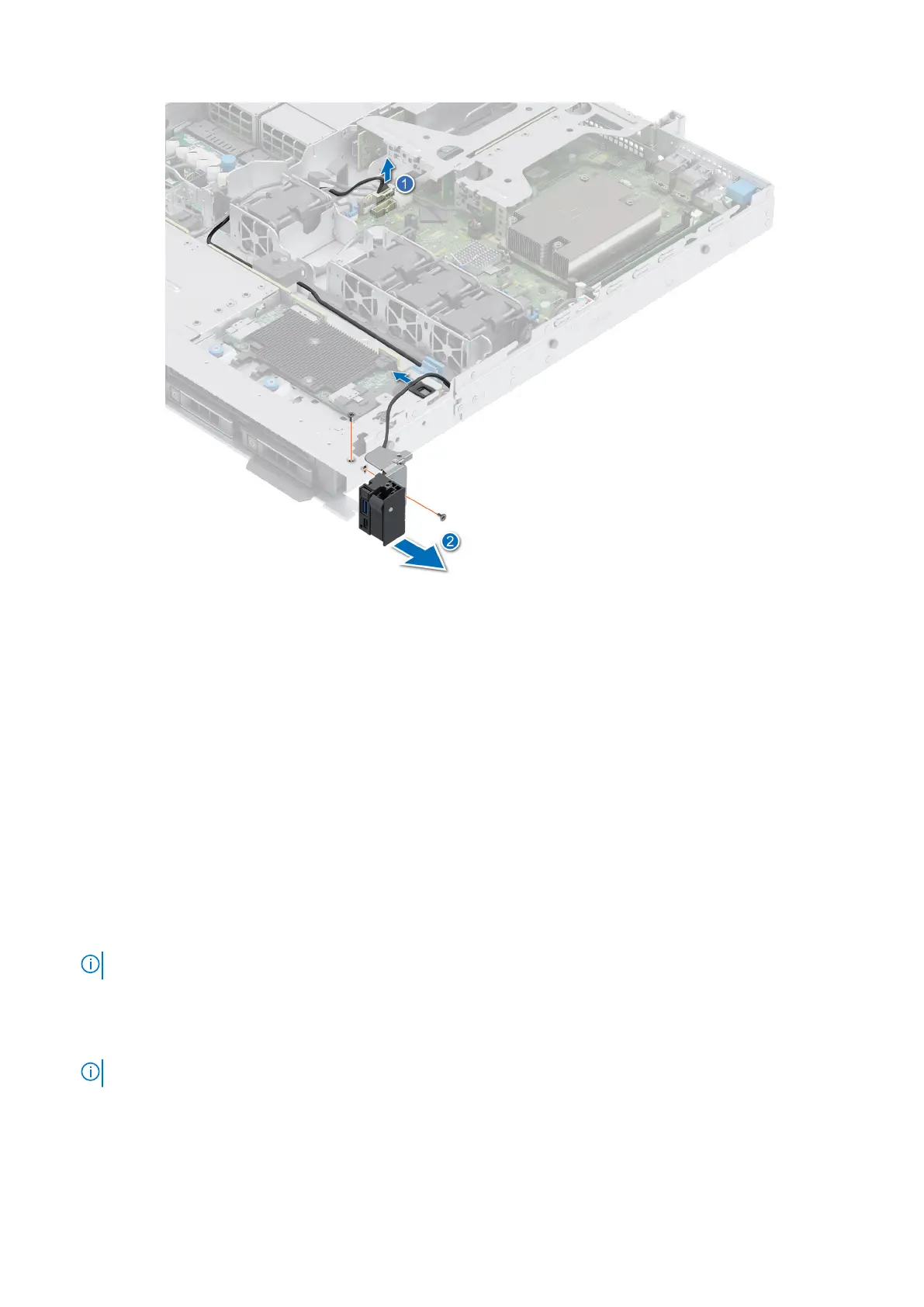

Figure 82. Removing the right control panel
Next steps
Replace the right control panel.
Installing the right control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the front bezel.
4. Remove the air shroud.
Steps
1. Route the control panel cable through the latch, side wall of the system, and then slide the cable into the clip.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
2. Align and insert the right control panel in the slot on the system.
3. Connect the right control panel cable to the connector on the system board.
4. Using the Phillips #1 screwdriver, tighten the screws that secure the right control panel to the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 89

Dell EMC PowerEdge R350 Specifications

General

Chassis type	Rack (1U)
Product color	Black
Rack mounting	Yes
Memory slots	4x DIMM
Memory ranking	1
Internal memory	8 GB
Memory clock speed	3200 MHz
Buffered memory type	Unregistered (unbuffered)
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Processor cache	8 MB
Processor model	E-2334
Processor frequency	3.4 GHz
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
On-board graphics card	-
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA III
Total storage capacity	4000 GB
Maximum storage capacity	- TB
Supported RAID controllers	PERC H345
Power supply	600 W
Power cable length	3 m
Power cable current	15 A
Power cable connector 1	C13 coupler
Power supply input voltage	125 V
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Width	- mm
Height	42.8 mm
