Dell EMC PowerEdge R350 Service Manual

Next steps
1. Install the air shroud.
2. Follow the procedure listed in After working inside your system.
Removing the processor
Prerequisites
WARNING: The processor will be hot to touch for some time after the system has been powered down. Allow the
processor to cool before removing it.
CAUTION: The processor is held in its socket under strong pressure. If the release lever is not held firmly, it can
spring up suddenly.
NOTE: Remove the processor only if you are replacing the processor or the system board. This step is not required when
replacing a heat sink module.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
4. Remove the heat sink .
CAUTION: An expected CMOS battery loss or CMOS checksum error message may be displayed during the first
instance of powering on the system after replacing the processor or system board. To resolve this issue, go to
setup option to configure the system settings.
Steps
1. Release the socket lever by pushing the lever down and out from under the tab on the processor shield.
2. Lift the lever upward until the processor shield lifts.
CAUTION:
The processor socket pins are fragile and can be permanently damaged. Be careful not to bend the
pins in the processor socket when removing the processor out of the socket.
3. Lift the processor out of the socket.
NOTE: Ensure that the processor and the bracket are placed in the tray after you remove the heat sink.

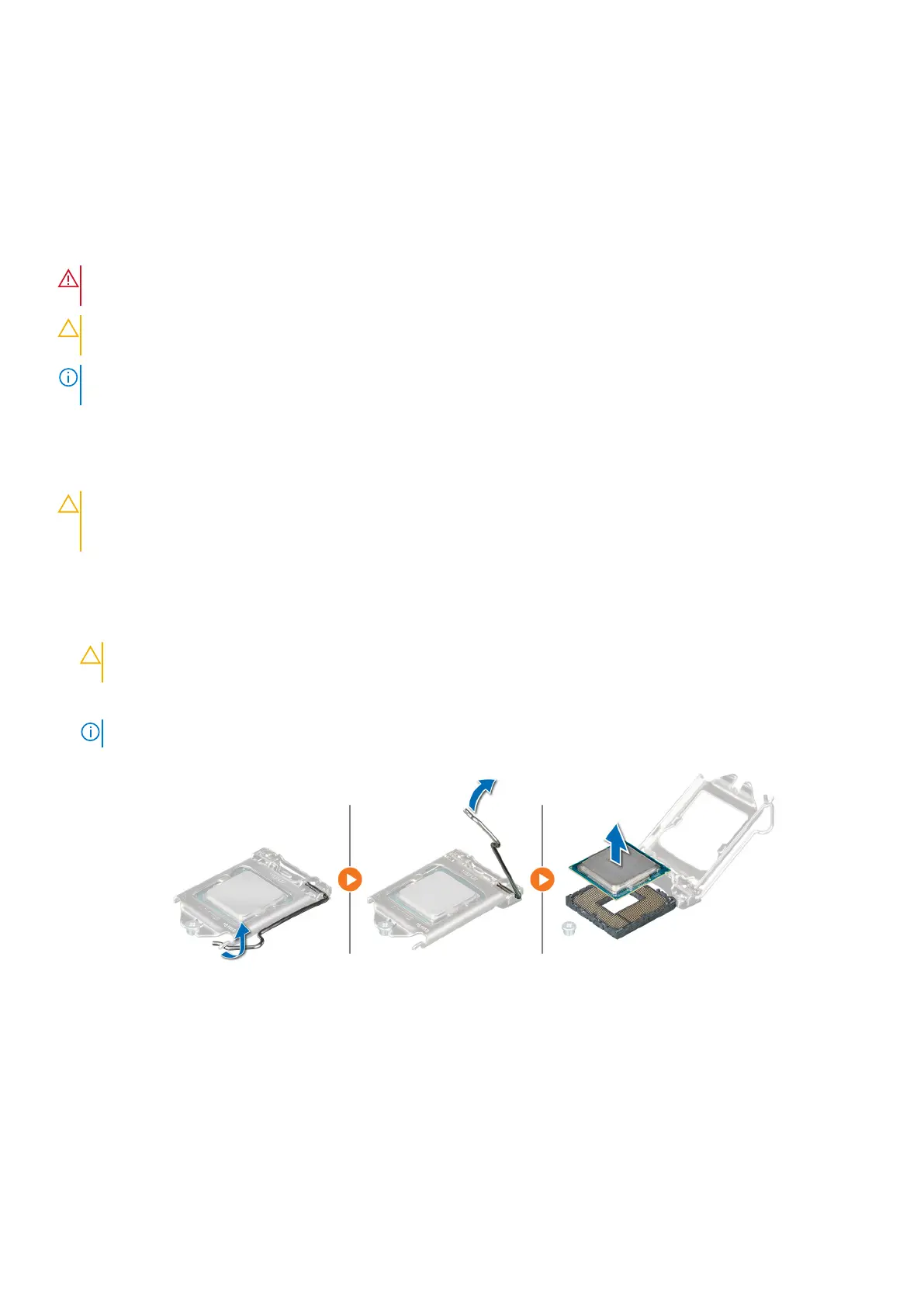

Figure 43. Removing the processor
Next steps
Replace the processor .
Installing and removing system components
53

Dell EMC PowerEdge R350 Specifications

General

Chassis type	Rack (1U)
Product color	Black
Rack mounting	Yes
Memory slots	4x DIMM
Memory ranking	1
Internal memory	8 GB
Memory clock speed	3200 MHz
Buffered memory type	Unregistered (unbuffered)
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Processor cache	8 MB
Processor model	E-2334
Processor frequency	3.4 GHz
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
On-board graphics card	-
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA III
Total storage capacity	4000 GB
Maximum storage capacity	- TB
Supported RAID controllers	PERC H345
Power supply	600 W
Power cable length	3 m
Power cable current	15 A
Power cable connector 1	C13 coupler
Power supply input voltage	125 V
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Width	- mm
Height	42.8 mm
