Dell EMC PowerEdge R350 Service Manual

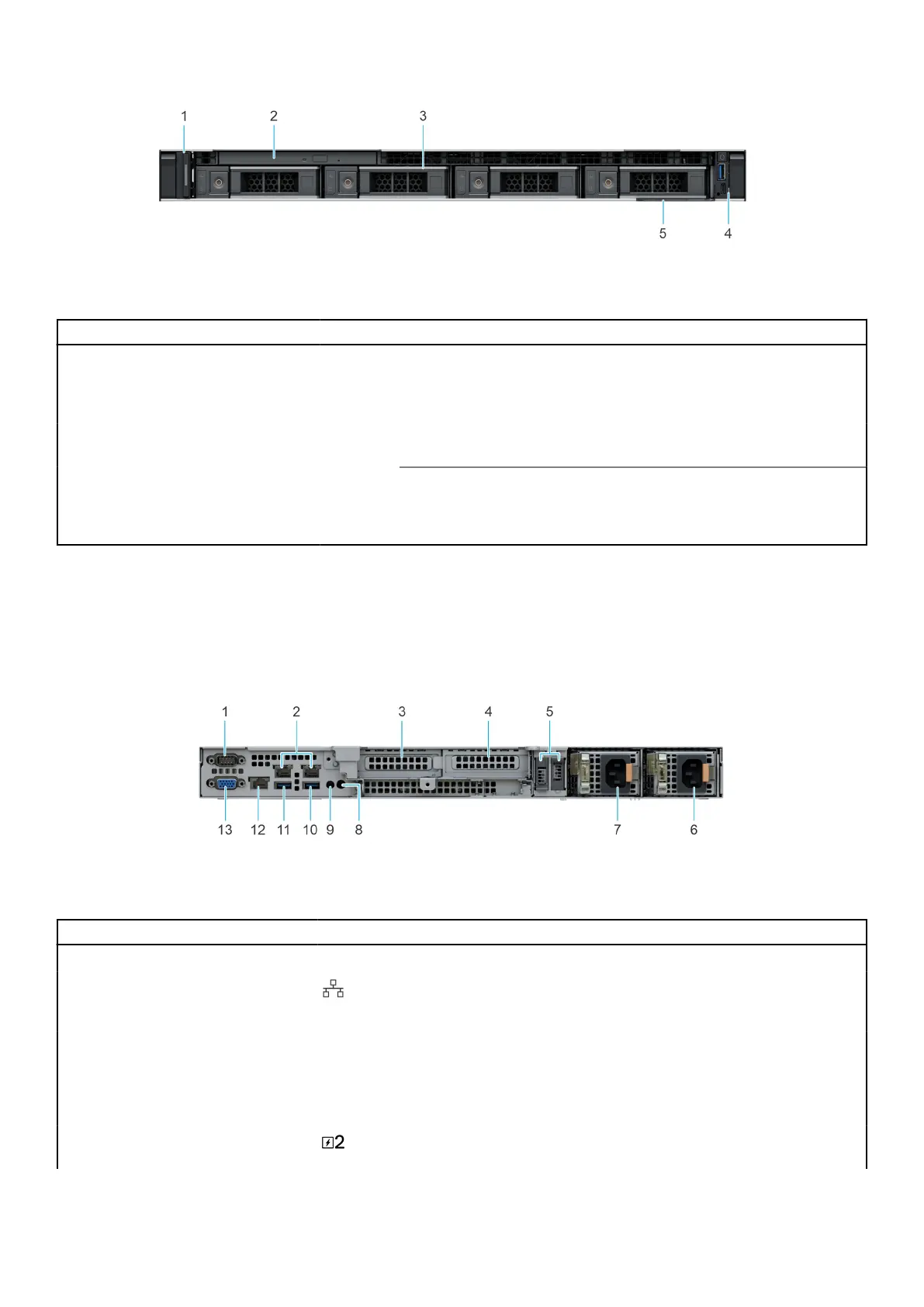

Figure 2. Front view of 4 x 3.5-inch drive system
Table 2. Features available on the front of the system
Item Ports, panels, and slots Icon Description
1 Left control panel N/A Contains the system health, and system ID.
2 Optical drive N/A Enables you to install optical drive that is supported on your system.
3 Drive N/A Enables you to install drives that are supported on your system.
4 Right control panel N/A Contains the power button, USB port, iDRAC Direct micro port, and the
iDRAC Direct status LED.
5 Information tag N/A
The Information tag is a slide-out label panel that contains system
information such as Service Tag, NIC, MAC address, and so on. If you
have opted for the secure default access to iDRAC, the Information tag
will also contain the iDRAC secure default password.
For more information about the ports, see the Dell EMC PowerEdge R350 Technical Specifications on the product
documentation page.
For more information about the ports, see the www.dell.com/poweredgemanuals section.
Rear view of the system
Figure 3. Rear view of the system
Table 3. Rear view of the system
Item Ports, panels, or slots Icon Description
1 Serial connector Enables you to connect serial devices.
2 Ethernet ports The Ethernet ports that are integrated on the system board
provide network connectivity. These NIC ports can also be shared
with iDRAC when iDRAC network settings is set to shared mode.
3 PCIe expansion card slot 1 Enables you to connect PCI Express expansion cards.
4 PCIe expansion card slot
2
Enables you to connect PCI Express expansion cards.
5 BOSS riser slots Enables you to connect BOSS card.
6 Power supply unit (PSU
2)
Indicates the PSU.
PowerEdge R350 system overview 9

Dell EMC PowerEdge R350 Specifications

General

Chassis type	Rack (1U)
Product color	Black
Rack mounting	Yes
Memory slots	4x DIMM
Memory ranking	1
Internal memory	8 GB
Memory clock speed	3200 MHz
Buffered memory type	Unregistered (unbuffered)
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Processor cache	8 MB
Processor model	E-2334
Processor frequency	3.4 GHz
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
On-board graphics card	-
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA III
Total storage capacity	4000 GB
Maximum storage capacity	- TB
Supported RAID controllers	PERC H345
Power supply	600 W
Power cable length	3 m
Power cable current	15 A
Power cable connector 1	C13 coupler
Power supply input voltage	125 V
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Width	- mm
Height	42.8 mm
