Dell EMC PowerEdge R350 Service Manual

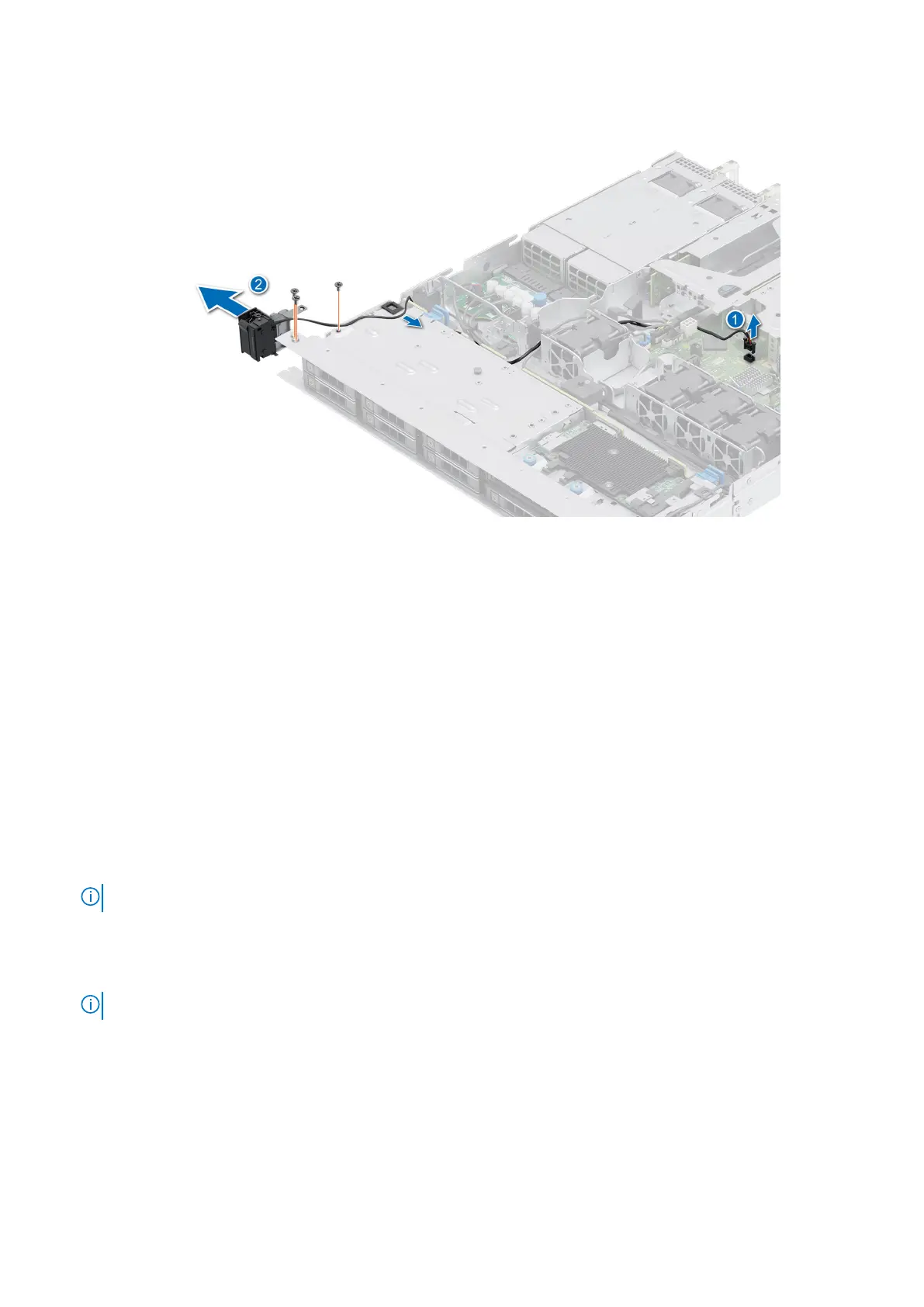

Figure 80. Removing the left control panel
Next steps
Replace the left control panel.
Installing the left control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the front bezel.
4. Remove the air shroud.
Steps
1. Route the control panel cable through the cable clip, the guide slots in the system and connector on system board.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
2. Close and secure the cable guiding latch.
3. Align and insert the left control panel assembly in the slot on the system.
4. Using the Phillips #1 screwdriver, tighten the screws that secure the left control panel assembly to the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 87

Dell EMC PowerEdge R350 Specifications

General

Chassis type	Rack (1U)
Product color	Black
Rack mounting	Yes
Memory slots	4x DIMM
Memory ranking	1
Internal memory	8 GB
Memory clock speed	3200 MHz
Buffered memory type	Unregistered (unbuffered)
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Processor cache	8 MB
Processor model	E-2334
Processor frequency	3.4 GHz
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
On-board graphics card	-
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA III
Total storage capacity	4000 GB
Maximum storage capacity	- TB
Supported RAID controllers	PERC H345
Power supply	600 W
Power cable length	3 m
Power cable current	15 A
Power cable connector 1	C13 coupler
Power supply input voltage	125 V
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Width	- mm
Height	42.8 mm
