Dell EMC PowerEdge R350 Service Manual

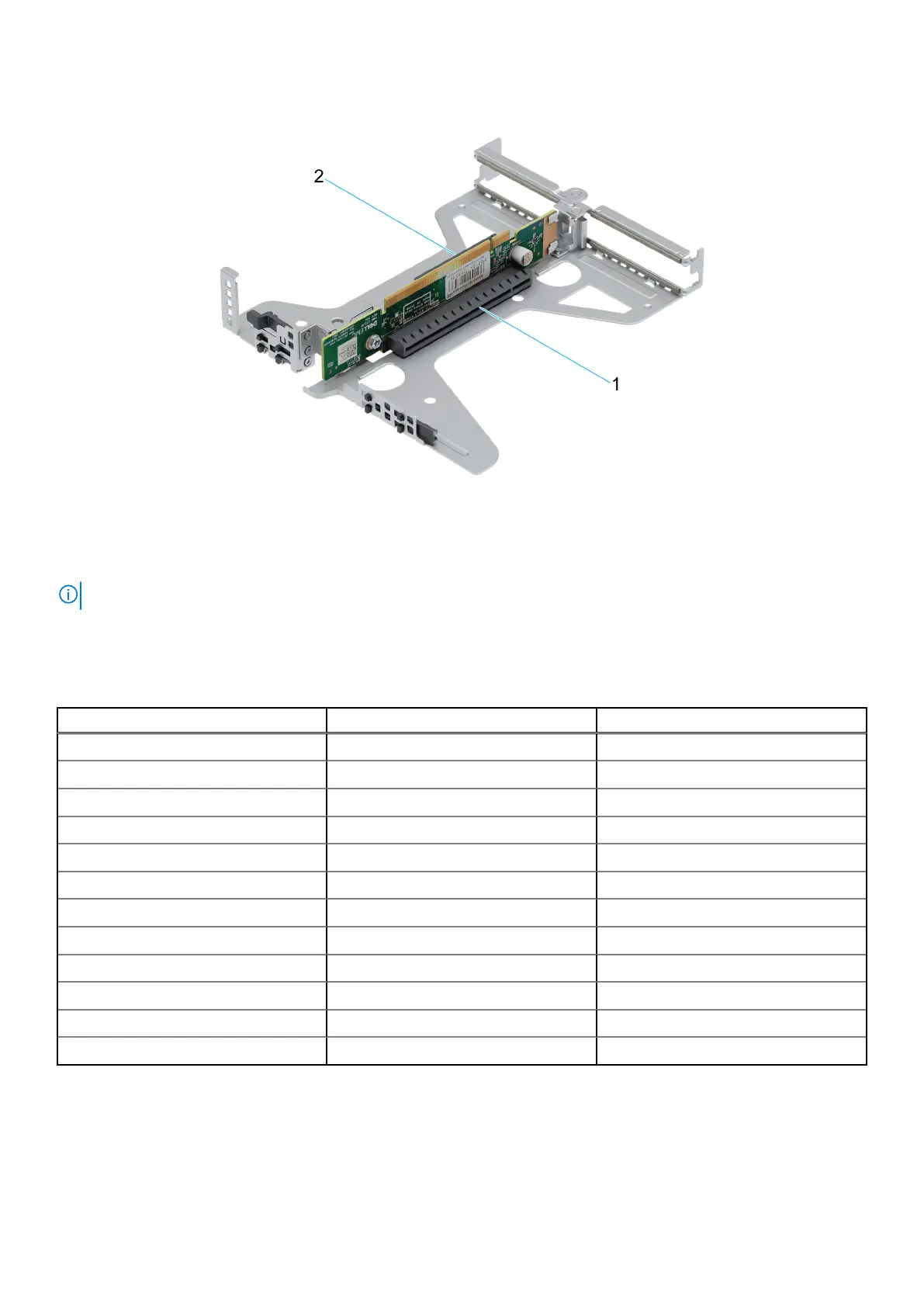

Figure 46. Butterfly riser
1. Slot 2 (Low profile) (x16 connector)
2. Slot 1 (Low profile) (x8 connector)
NOTE: The expansion-card slots are not hot-swappable.
To ensure proper cooling and mechanical fit, the following table provides guidelines for installing expansion cards. The expansion
cards with the highest priority should be installed first using the slot priority indicated. All the other expansion cards should be
installed in the card priority and slot priority order.
Table 22. Configuration 0: butterfly riser
Card type Slot priority Maximum number of cards
Dell BOSS S2 Module BOSS 1
Intel (NIC: 10 Gb) 1, 2 2
Broadcom (NIC: 10 Gb) 1, 2 2
Intel (NIC: 1 Gb) 1, 2 2
Broadcom (NIC: 1 Gb) 1, 2 2
Dell External Adapter 1, 2 2
aPERC 11 Integrated slot 1
FPERC 11 Integrated slot 1
FPERC 10.15 Integrated slot 1
aPERC 10.15 Integrated slot 1
FPERC HBA11 Integrated slot 1
aPERC HBA11 Integrated slot 1
Removing the expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
56
Installing and removing system components

Dell EMC PowerEdge R350 Specifications

General

Chassis type	Rack (1U)
Product color	Black
Rack mounting	Yes
Memory slots	4x DIMM
Memory ranking	1
Internal memory	8 GB
Memory clock speed	3200 MHz
Buffered memory type	Unregistered (unbuffered)
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Processor cache	8 MB
Processor model	E-2334
Processor frequency	3.4 GHz
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
On-board graphics card	-
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA III
Total storage capacity	4000 GB
Maximum storage capacity	- TB
Supported RAID controllers	PERC H345
Power supply	600 W
Power cable length	3 m
Power cable current	15 A
Power cable connector 1	C13 coupler
Power supply input voltage	125 V
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Width	- mm
Height	42.8 mm
