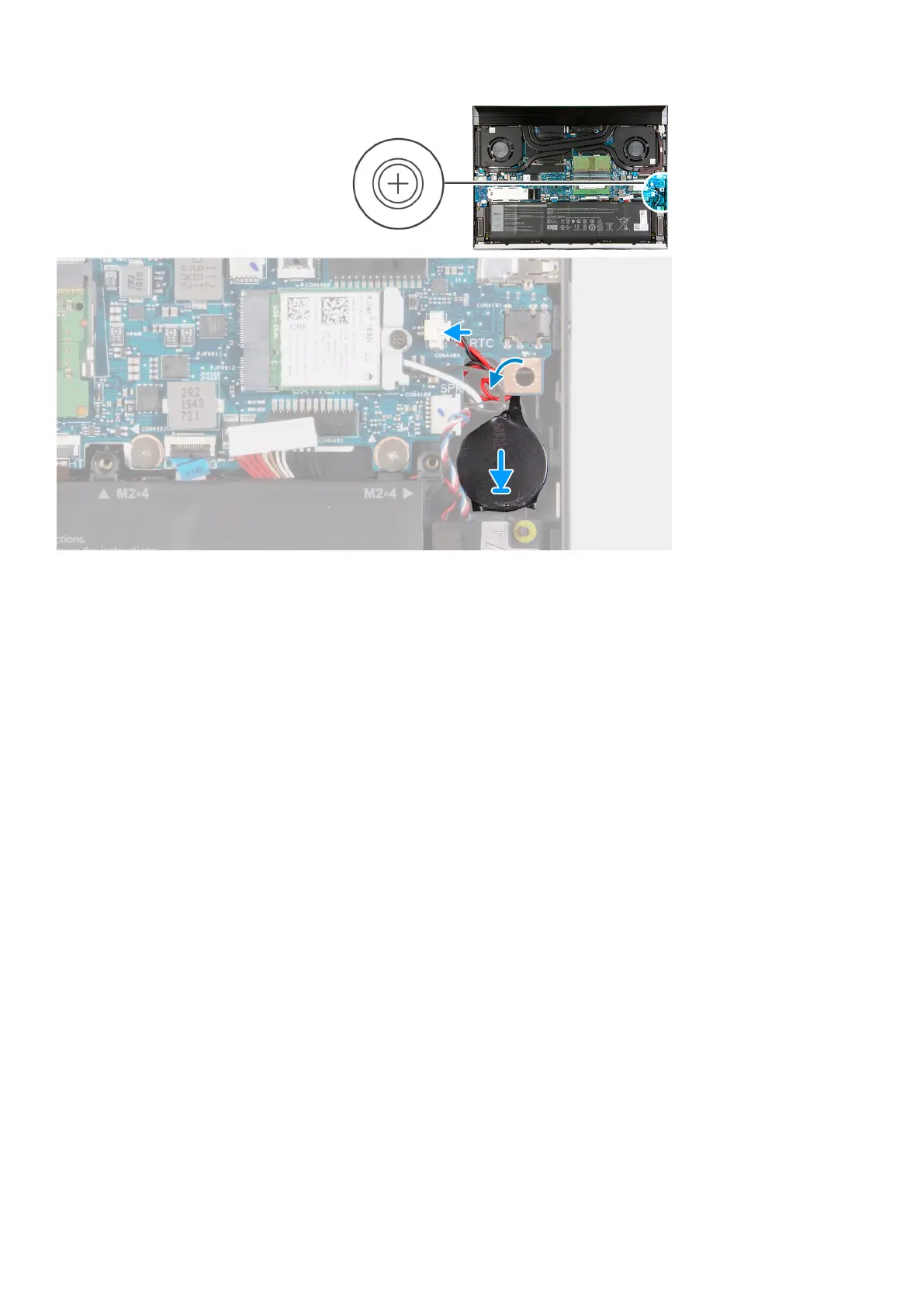

Steps
1. Adhere the coin-cell battery to the palm-rest and keyboard assembly.
2. Route the coin-cell battery cable under the speaker cable and through the routing guides.
3. Connect the coin-cell battery cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Rear cover
Removing the rear cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the rear cover and provides a visual representation of the removal procedure.
Removing and installing components
19
