Steps
1. Place the keyboard on a flat and clean surface.

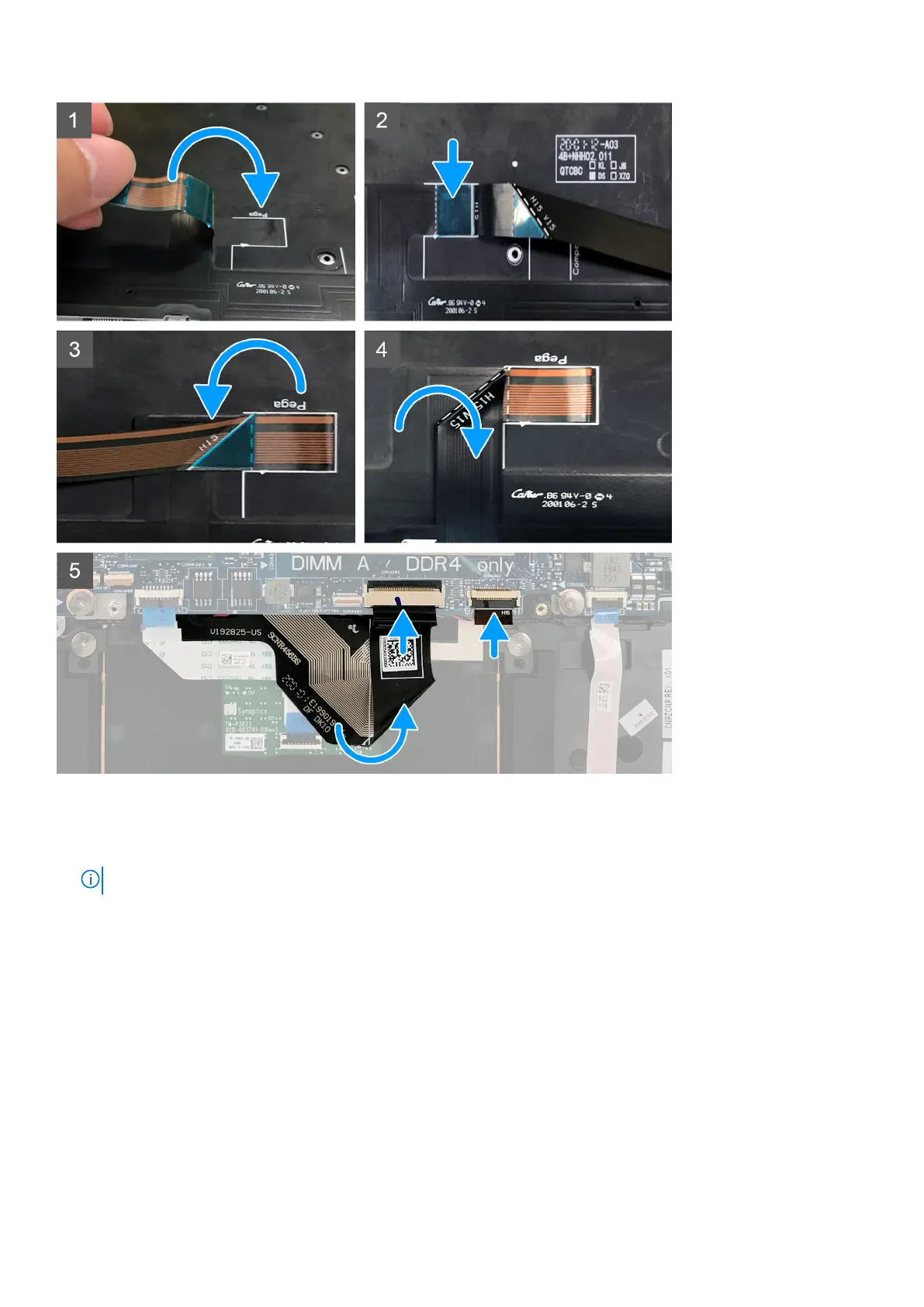

2. Using the alignment lines on keyboard bracket and keyboard cable, fold the keyboard cable as shown in the images.
NOTE: Ensure that the QR code on the keyboard cable is facing up before connecting it to the system board.
3. Install the keyboard.
Installing the keyboard
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the keyboard and provides a visual representation of the installation procedure.
Removing and installing components
63
To Next Page
