Steps

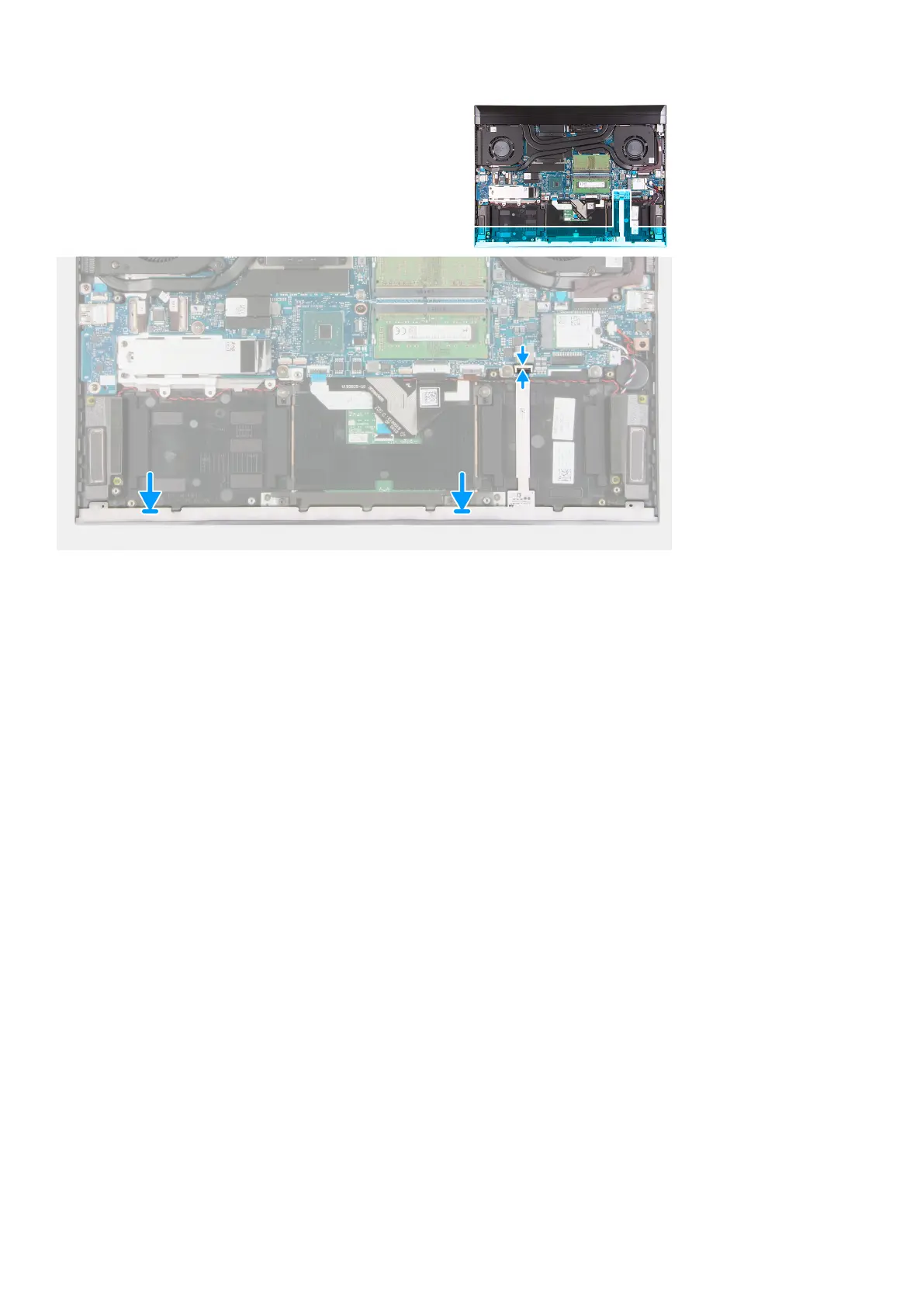

1. Align the light bar with the slots on the palm-rest and keyboard assembly.
2. Connect the light-bar cable to the system board and close the latch to secure the cable.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
I/O board
Removing the I/O board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.
