G key
Removing the G key
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear cover.
4. Remove the rear-cover bracket.
5. Remove the processor fan.
6. Remove the graphics-card fan.
7. Remove the heat sink.
8. Remove the power-adapter port.
About this task

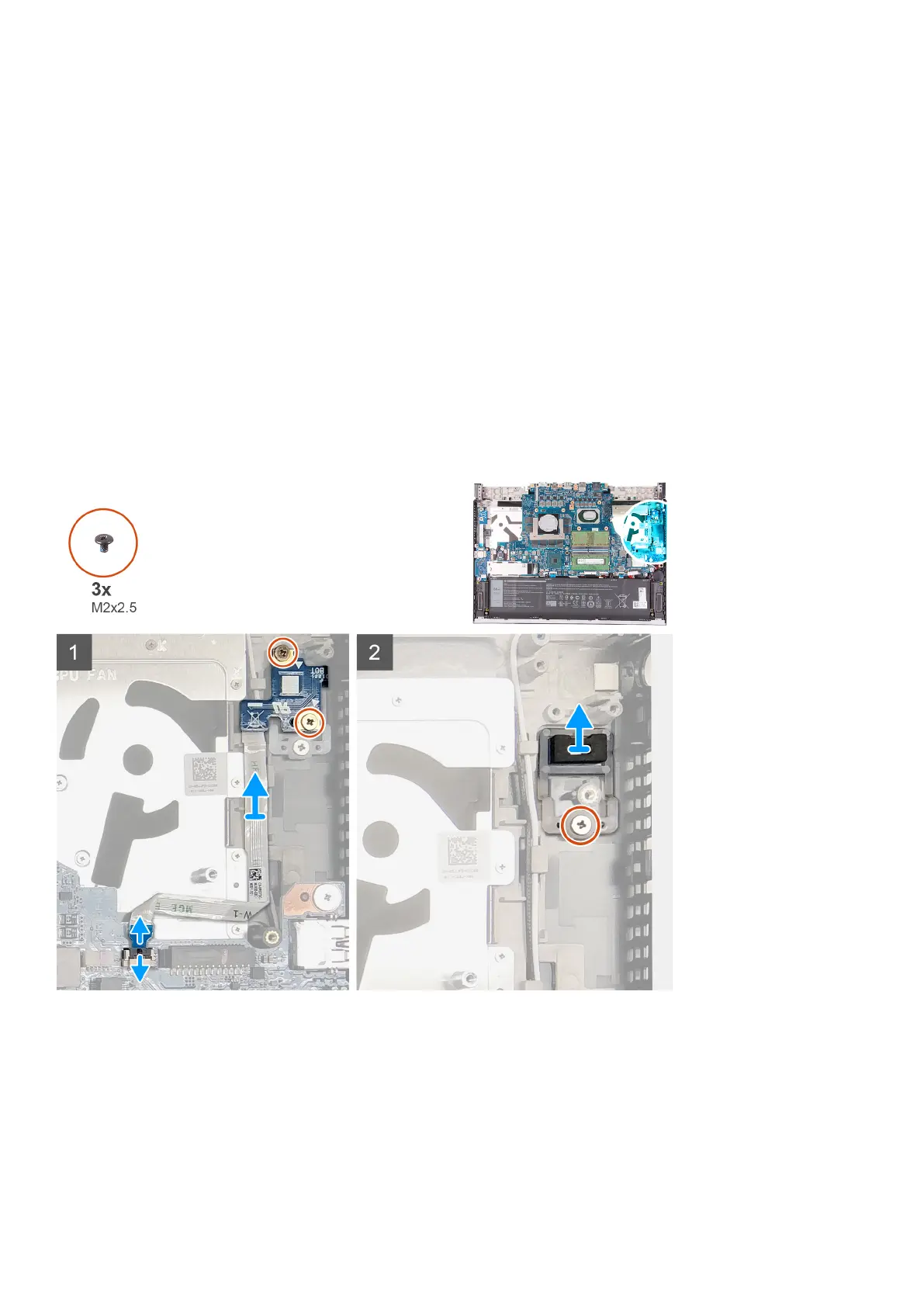

The following image indicates the location of the G key and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (M2x2.5) that secure the G-key board to the palm-rest and keyboard assembly.
2. Open the latch and disconnect the G-key cable from the system board.
3. Lift the G-key board off the palm-rest and keyboard assembly.
4. Remove the screw (M2x2.5) that secures the G key to the palm-rest and keyboard assembly.
5. Lift the G key off the palm-rest and keyboard assembly.
Removing and installing components
51
