Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

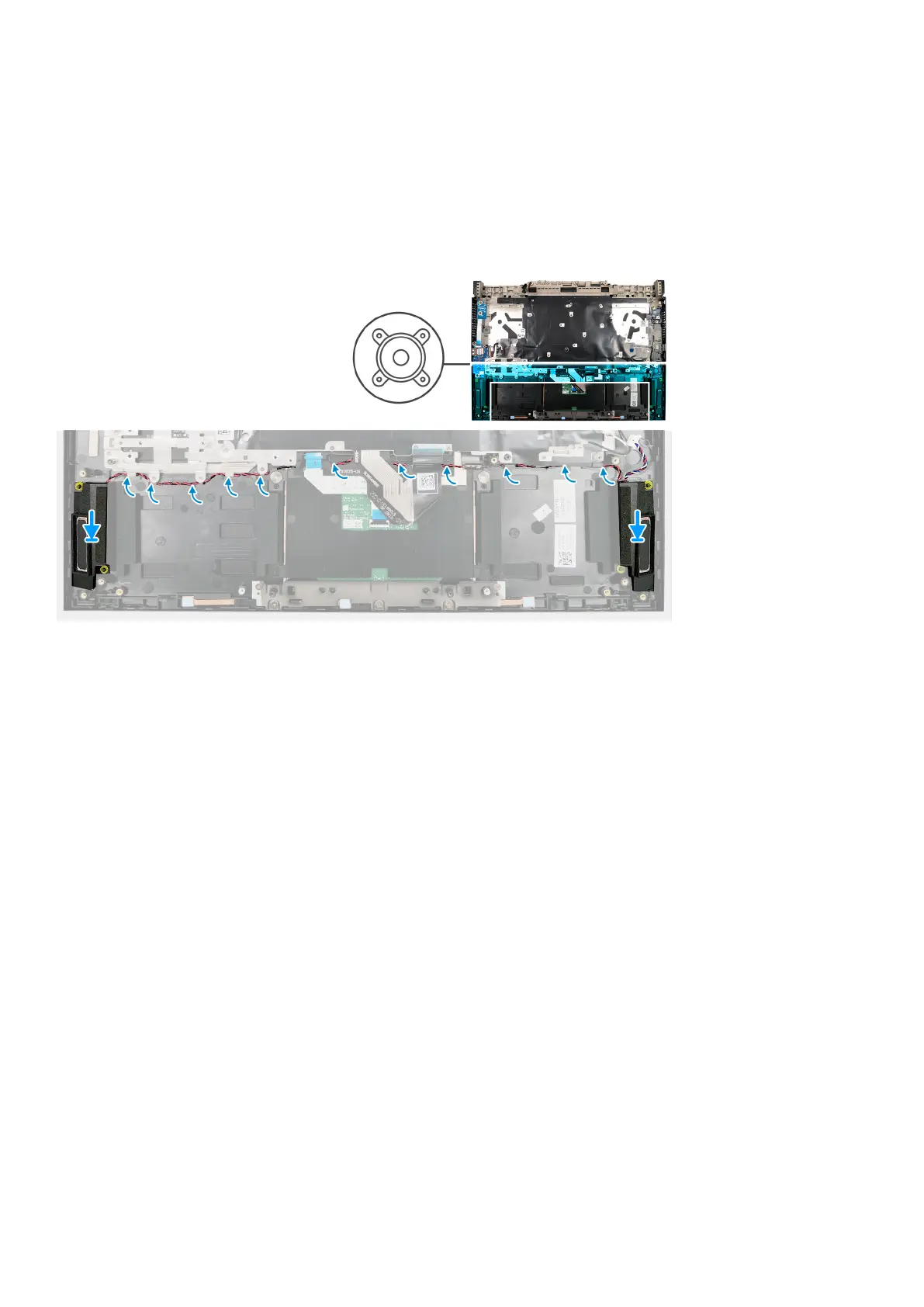

The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
Steps
1. Using the alignment posts and rubber grommets, place the speakers on the slots on the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
Next steps
1. Install the system board.
2. Install the light bar.
3. Install the graphics-card fan.
4. Install the processor fan.
5. Install the memory modules.
6. Install the M.2 2280 solid-state drive or M.2 2230 solid-state drive.
7. Install the wireless card.
8. Install the rear-cover bracket.
9. Install the rear cover.
10. Install the coin-cell battery.
11. Install the battery.
12. Install the base cover.
13. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in Before working inside your computer.
58
Removing and installing components
