Steps
1. Align the tabs on the hinges with the slots on the palm-rest and keyboard assembly and place the display assembly on the palm-rest
and keyboard assembly.
2. Align the screw holes on the palm-rest and keyboard assembly with the screw holes on the right and the left display-assembly hinges.
3. Replace eight screws (M2.5x5) that secure the display-assembly hinges to the palm-rest and keyboard assembly.
4. Align the display assembly with the screw hole on the palm-rest and keyboard assembly.

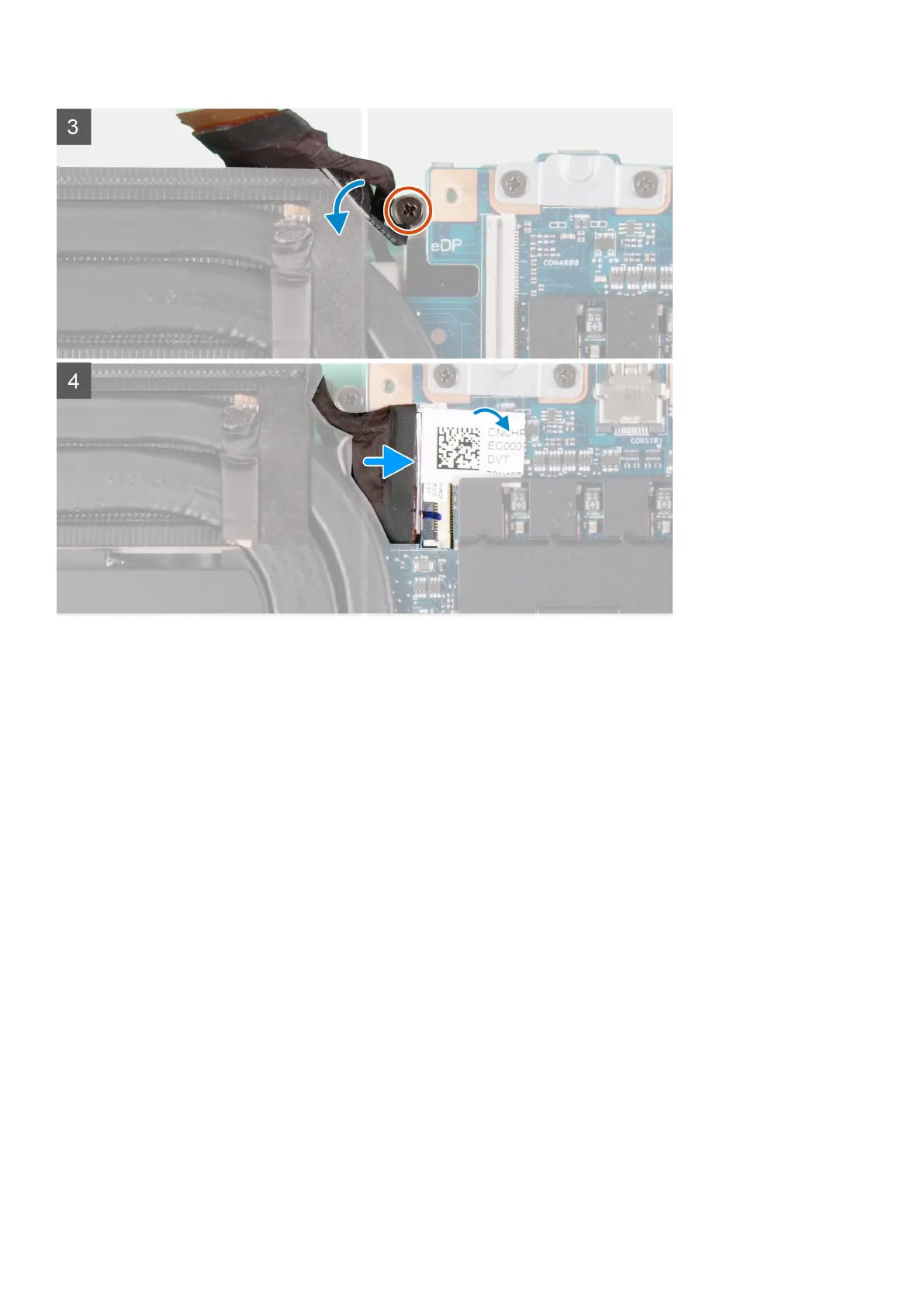

5. Replace the screw (M2x4) that secures the display cable to the system board.
6. Connect the display cable to the connector on the system board and close the latch to secure the cable.
Next steps
1. Install the rear-cover bracket.
2. Install the rear cover.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the wireless card and provides a visual representation of the removal procedure.
28
Removing and installing components
To Next Page
