Steps

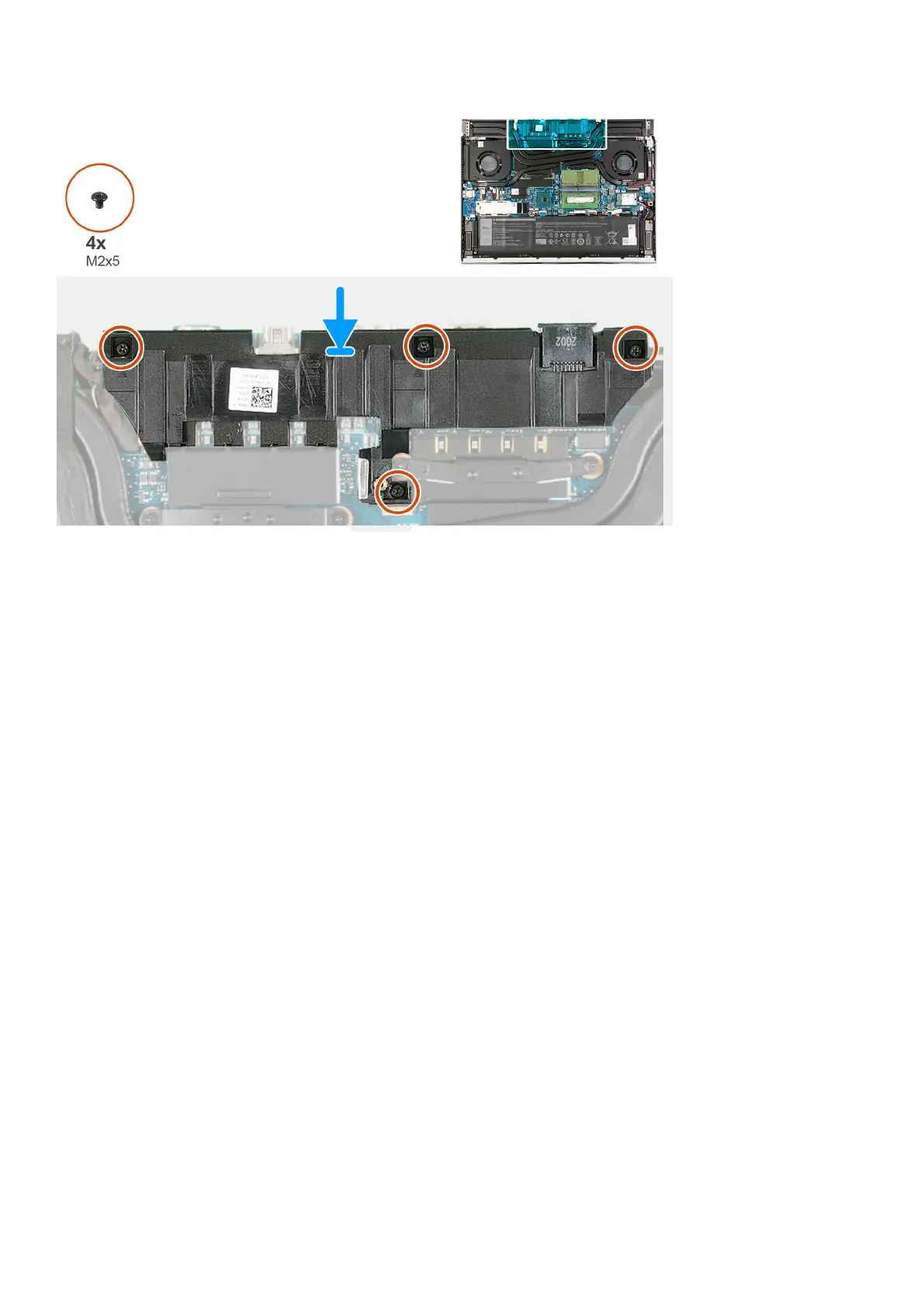

1. Align the screw holes on the rear-cover bracket with the screw holes on the system board.
2. Replace the four screws (M2x5) that secure the rear-cover bracket to the system board.
Next steps
1. Install the rear cover.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear cover.
4. Remove the rear-cover bracket.
About this task
The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.
Removing and installing components
23
