Installing the M.2 2280 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2
2280 solid-state drive.

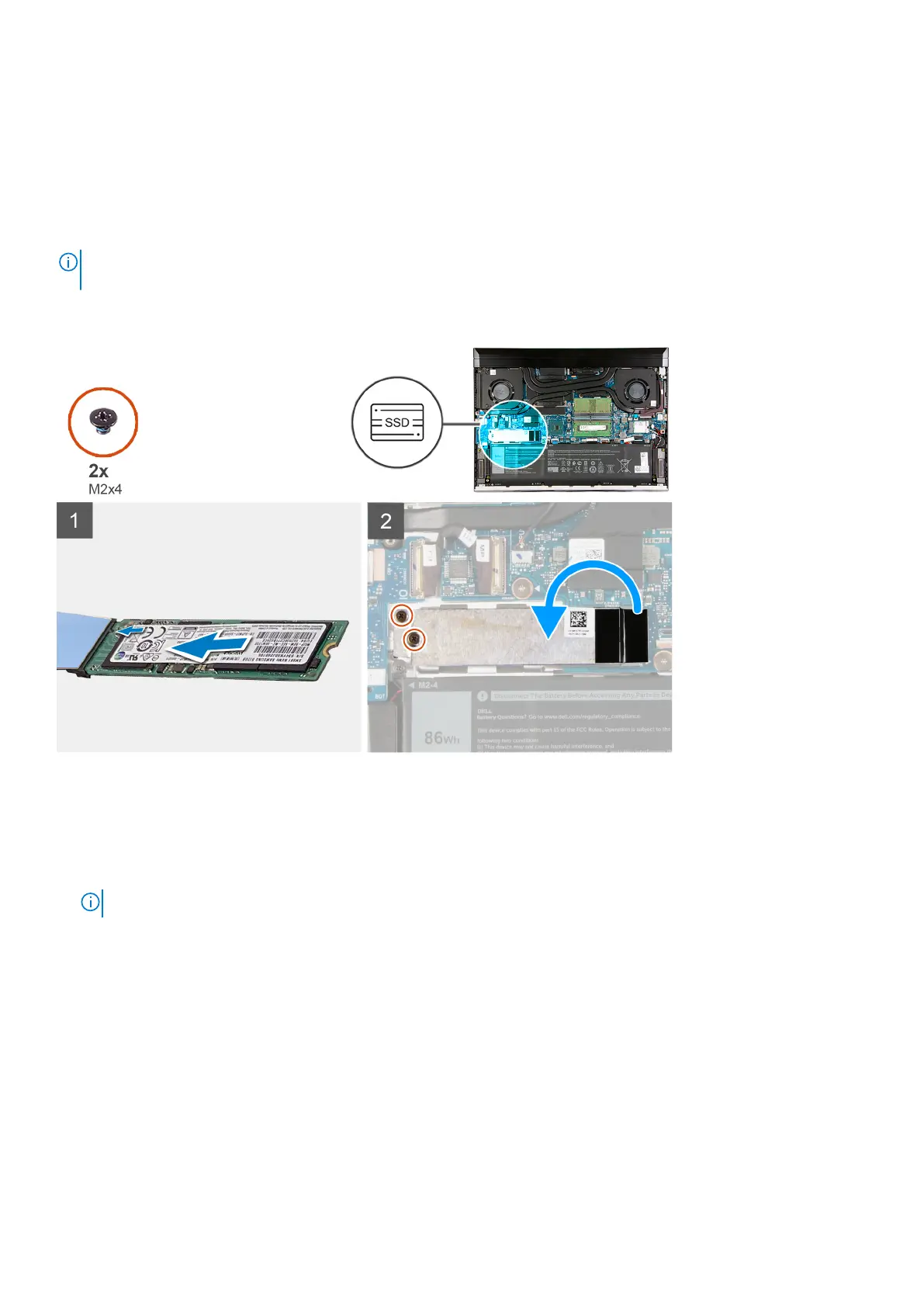

The following image indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the installation
procedure.
Steps
1. Align the notch on the solid-state drive with the tab on the solid-state drive slot.
2. Slide the solid-state drive into the solid-state drive slot.
3. Using the alignment post, place the solid-state thermal bracket over the solid-state drive.
4. Replace the two screws (M2x4) that secure the solid-state thermal bracket and the solid-state drive to the system board.
NOTE: Adhere the tape to secure the solid-state drive thermal bracket to the system board, if applicable.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
34
Removing and installing components
