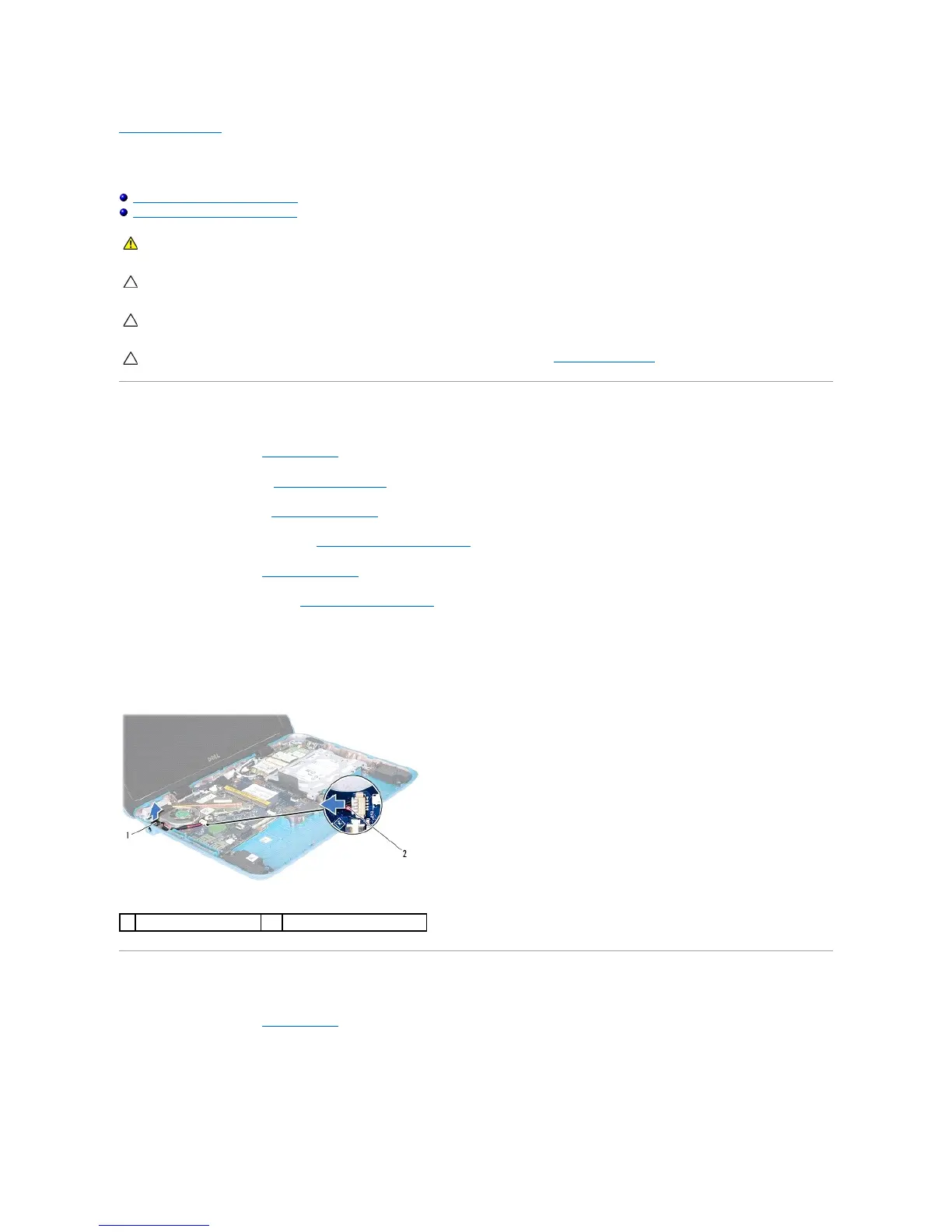

AC-Adapter Connector
Dell™Inspiron™1090ServiceManual
Removing the AC-Adapter Connector
Replacing the AC-Adapter Connector
Removing the AC-Adapter Connector
1. Follow the instructions in Before You Begin.
2. Remove the label door (see Removing the Label Door).
3. Remove the keyboard (see Removing the Keyboard).
4. Remove the palm-rest assembly (see Removing the Palm-Rest Assembly).
5. Remove the battery (see Removing the Battery).
6. Remove the memory module (see Removing the Memory Module).
7. Disconnect the AC-adapter connector cable from the connector on the system board.
8. Make note of the AC-adapter connector cable routing and remove the cable from the routing guide.
9. Lift the AC-adapter connector off the system board.
Replacing the AC-Adapter Connector
1. Follow the instructions in Before You Begin.
2. Place the AC-adapter connector on the computer base.
3. Route the AC-adapter connector cable through the routing guide.
4. Connect the AC-adapter connector cable to the connector on the system board.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
