Replacing the Mini-Card(s)
1. Follow the instructions in Before You Begin.
2. Remove the new Mini-Card(s) from its packaging.

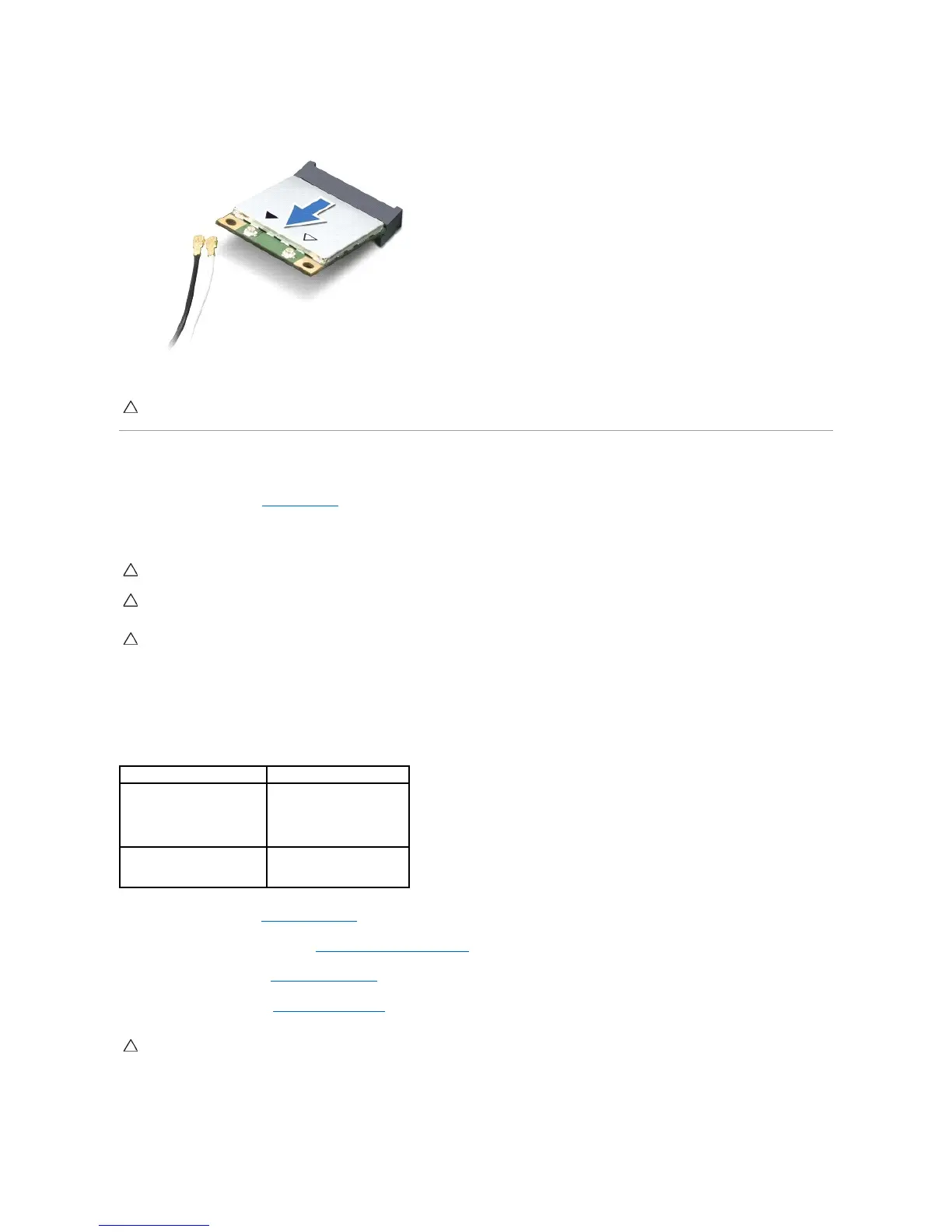

3. Insert the Mini-Card connector at a 45-degree angle into the system-board connector.
4. Press the other end of the Mini-Card down into the slot on the system board and replace the screw that secures the Mini-Card to the system board.
5. Connect the appropriate antenna cables to the Mini-Card you are installing. The following table provides the antenna cable color scheme for the Mini-
Cards supported by your computer.
6. Replace the battery (see Replacing the Battery).
7. Replace the palm-rest assembly (see Replacing the Palm-Rest Assembly).
8. Replace the keyboard (see Removing the Keyboard).
9. Replace the label door (see Replacing the Label Door).
10. Install the drivers and utilities for your computer, as required.
CAUTION: When the Mini-Card is not in the computer, store it in protective antistatic packaging. For more information, see "Protecting Against
Electrostatic Discharge" in the safety information that shipped with your computer.
CAUTION: Use firm and even pressure to slide the card into place. If you use excessive force, you may damage the connector.
CAUTION: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors on the card and on the system
board, and realign the card.
CAUTION: To avoid damage to the Mini-Card, never place cables under the card.
Connectors on the Mini-Card
Antenna Cable Color Scheme
WLAN (2 antenna cables)
Main WLAN (white triangle)
Auxiliary WLAN (black triangle)
WWAN (1 antenna cable)
Auxiliary WWAN (black triangle)
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
