Dell OptiPlex 745 User Manual



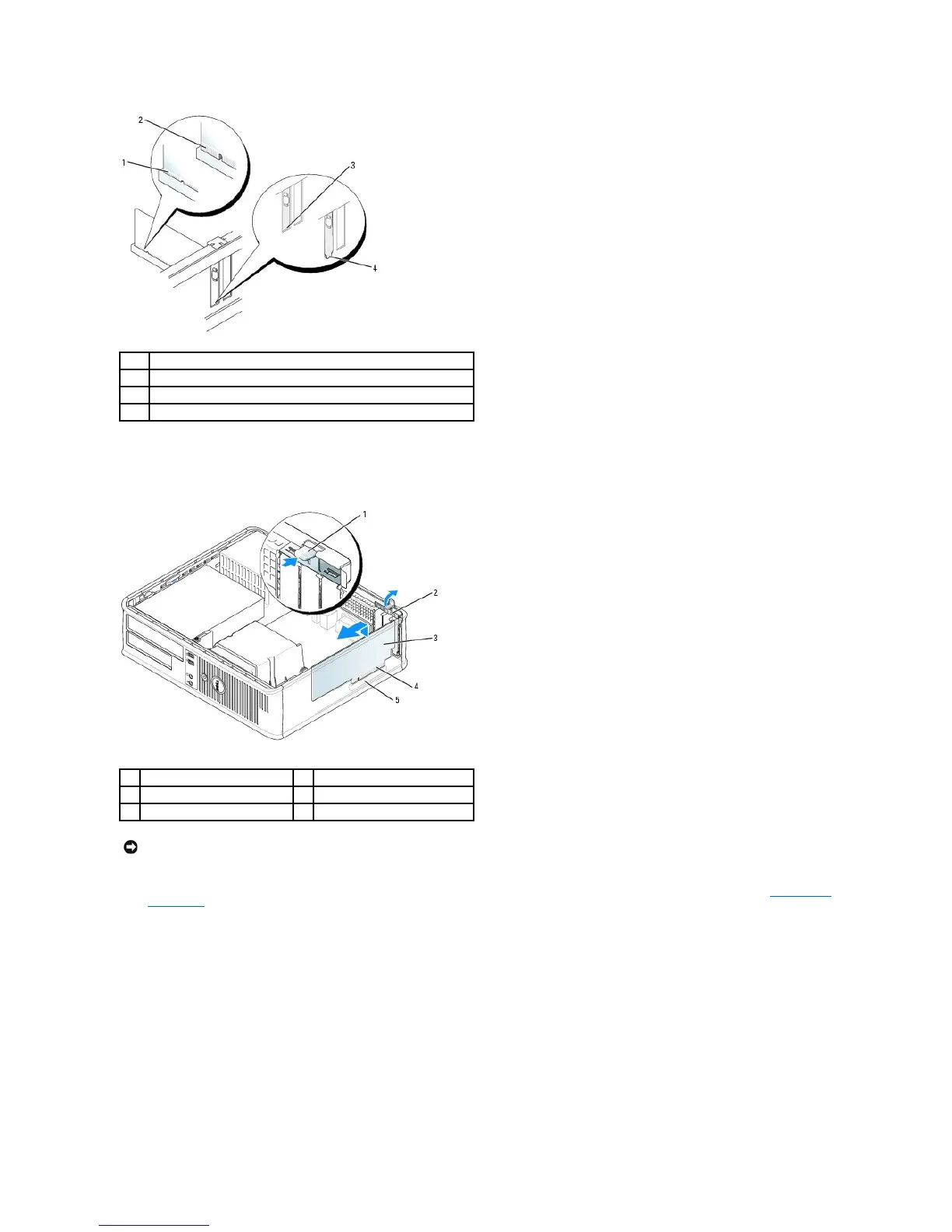

9. If you are installing a PCI Express card, release the lever on the securing tab, and ensure that the securing tab fits into the notch on the front end of
the card.

10. Gently press down on the card-retention latch to secure the card.

11. If you are installing a serial port adapter, connect the adapter cable to the serial port adapter connector (SER2) on the system board (see System Board
Components).
1
fully seated card
2
not fully seated card
3
bracket within slot
4
bracket caught outside of slot
1
release tab
4
card-edge connector
2
card-retention latch
5
card connector
3
card


NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly or
cause damage to the equipment.

Dell OptiPlex 745 Specifications

General

Chipset	Intel Q965 Express
Memory	Up to 8GB DDR2 SDRAM
Form Factor	Mini Tower, Desktop, Small Form Factor, Ultra Small Form Factor
Audio	Integrated High Definition Audio
Power Supply	305W (Mini Tower)
Processor	Intel Core 2 Duo, Pentium D
Graphics	Integrated Intel Graphics Media Accelerator 3000
Networking	Integrated Gigabit Ethernet
Expansion Slots	2 PCI, 1 PCIe x16, 1 PCIe x1
Ports	USB 2.0, Serial, Parallel, RJ-45, Audio jacks
Operating System	Windows XP, Windows Vista
Optical Drive	DVD-ROM, DVD+/-RW
