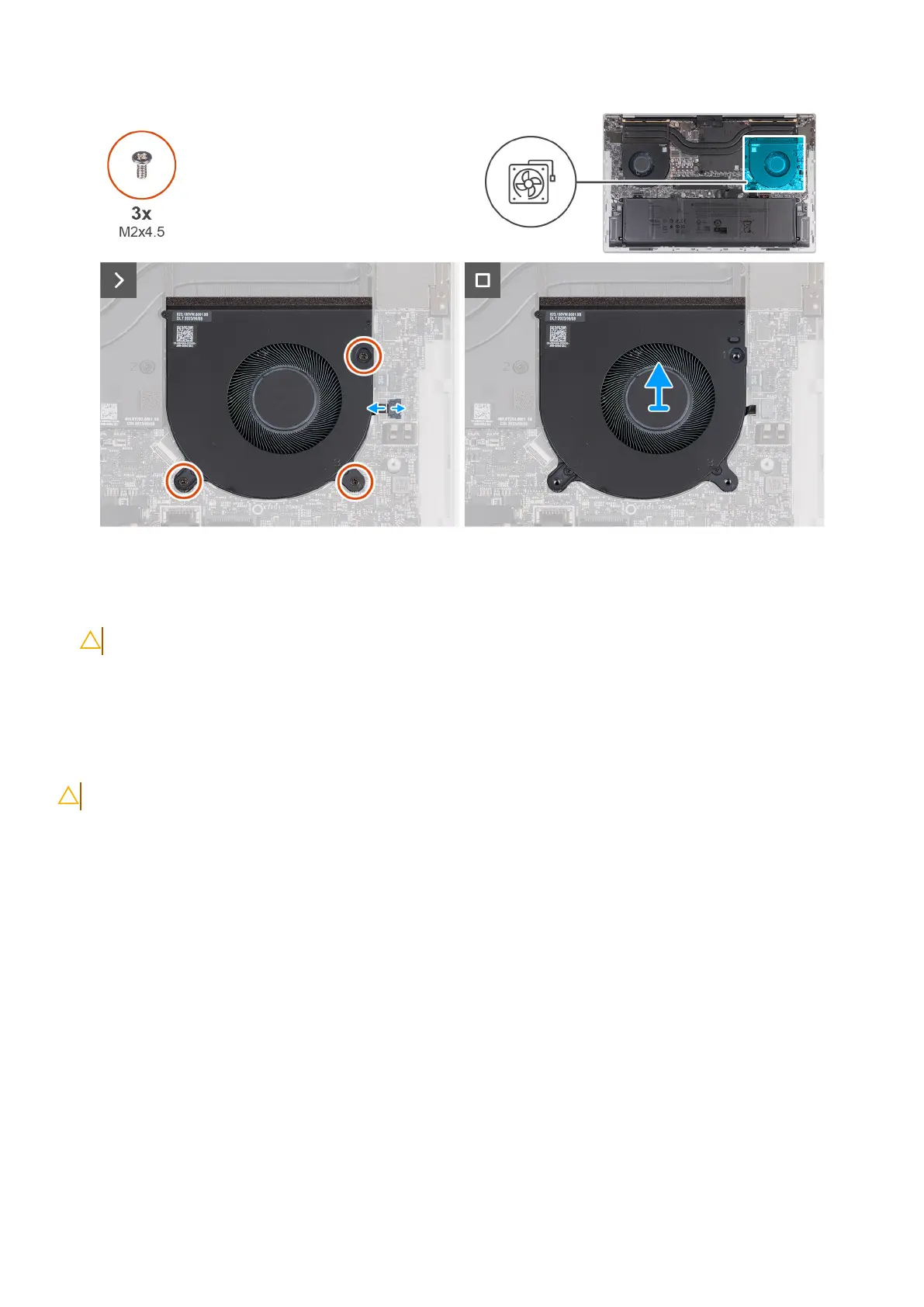

Figure 24. Removing the CPU fan
Steps
1. Remove the three screws (M2x4.5) that secure the fan to the system board and palm rest and keyboard assembly.
CAUTION: Do not hold the fan assembly at the center, as it may damage the center bearing.
2. Open the latch and disconnect the fan cable from the connector (FAN2) on the system board.
3. Lift the fan off the palm rest and keyboard assembly.
Installing the CPU fan
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
About this task
The following images indicate the location of the CPU fan and provides a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
47
