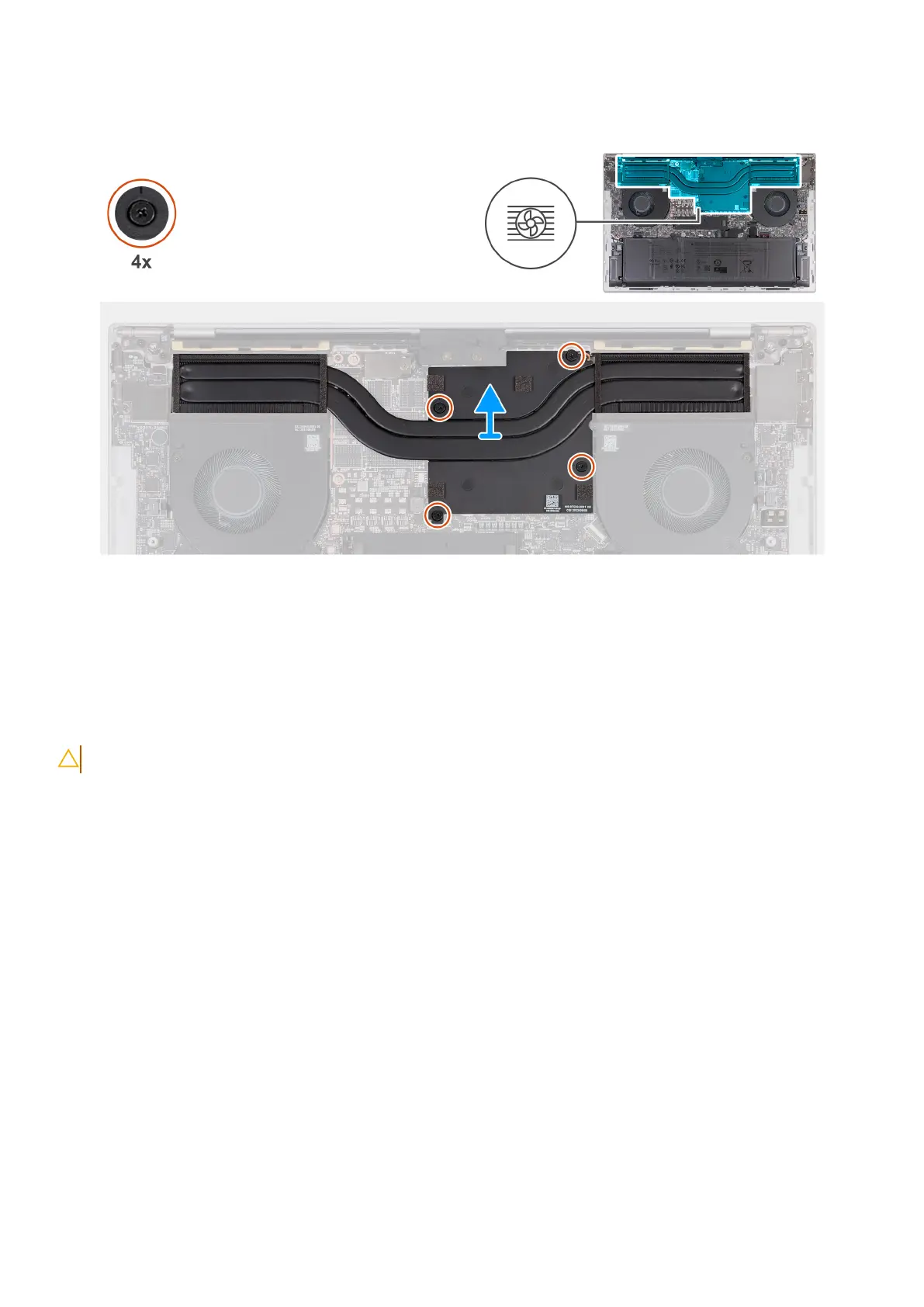

The following image(s) indicate the location of the heat sink on computers that are shipped with integrated GPUs and provides
a visual representation of the removal procedure.
Figure 30. Removing the heat sink—Integrated GPUs
Steps
1. In reverse sequential order (4>3>2>1), loosen the four captive screws that secure the heat sink to the system board.
2. Lift the heat sink off the system board.
Installing the heat sink—Integrated GPU
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the heat sink on computers that are shipped with integrated GPUs and provides
a visual representation of the installation procedure.
