Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image(s) indicate the location of the Type-C bracket and provides a visual representation of the removal
procedure.

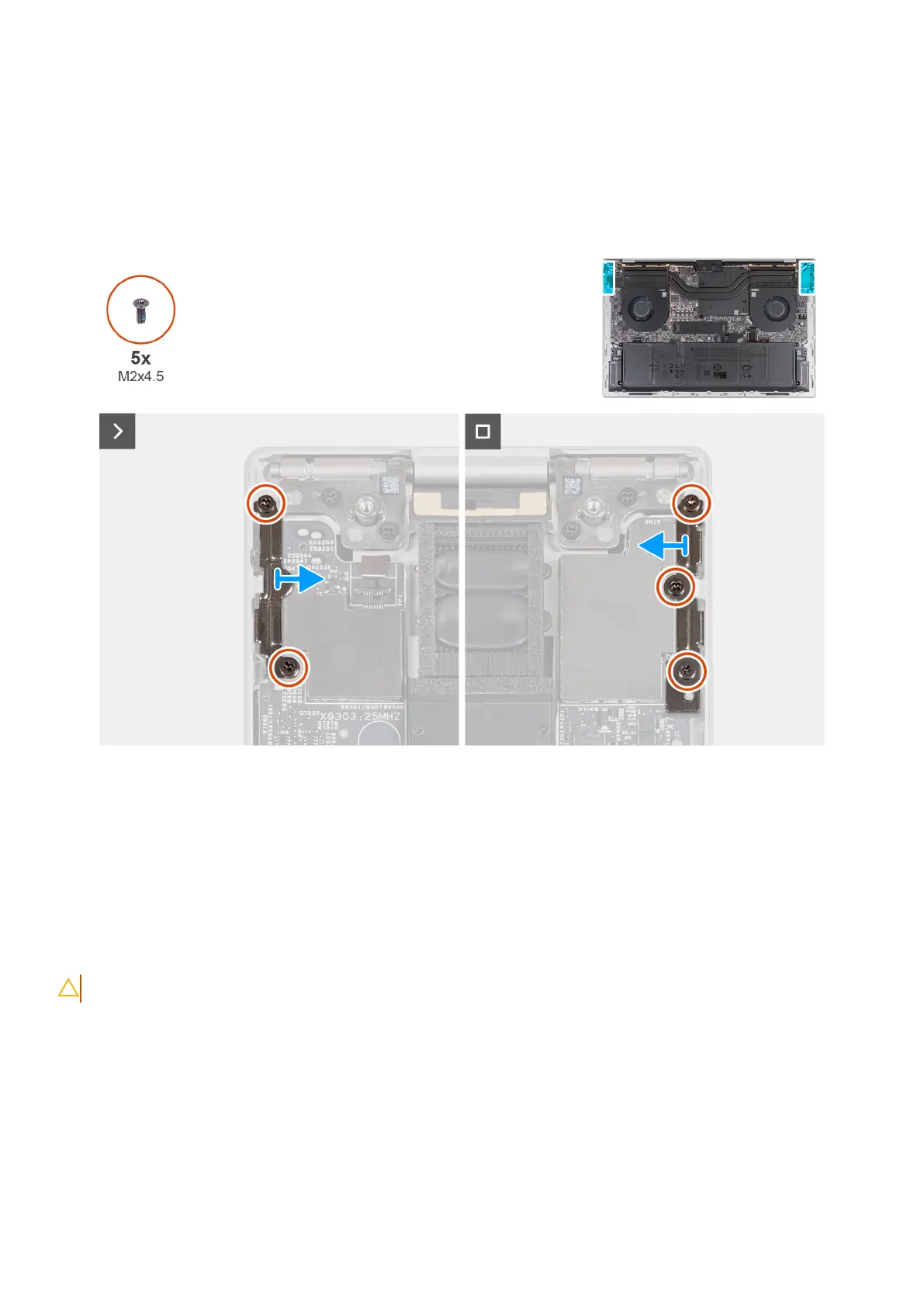

Figure 43. Removing the Type-C brackets
Steps
1. Remove the two screws (M2x4.5) that secure the right Type-C bracket to the system board.
2. Remove the three screws (M2x4.5) that secure the left Type-C bracket to the palm rest and keyboard assembly and system
board.
3. Lift the Type-C brackets off from the palm rest and keyboard assembly.
Installing the Type-C brackets
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the Type-C bracket and provides a visual representation of the installation
procedure.
64
Removing and installing Field Replaceable Units (FRUs)
