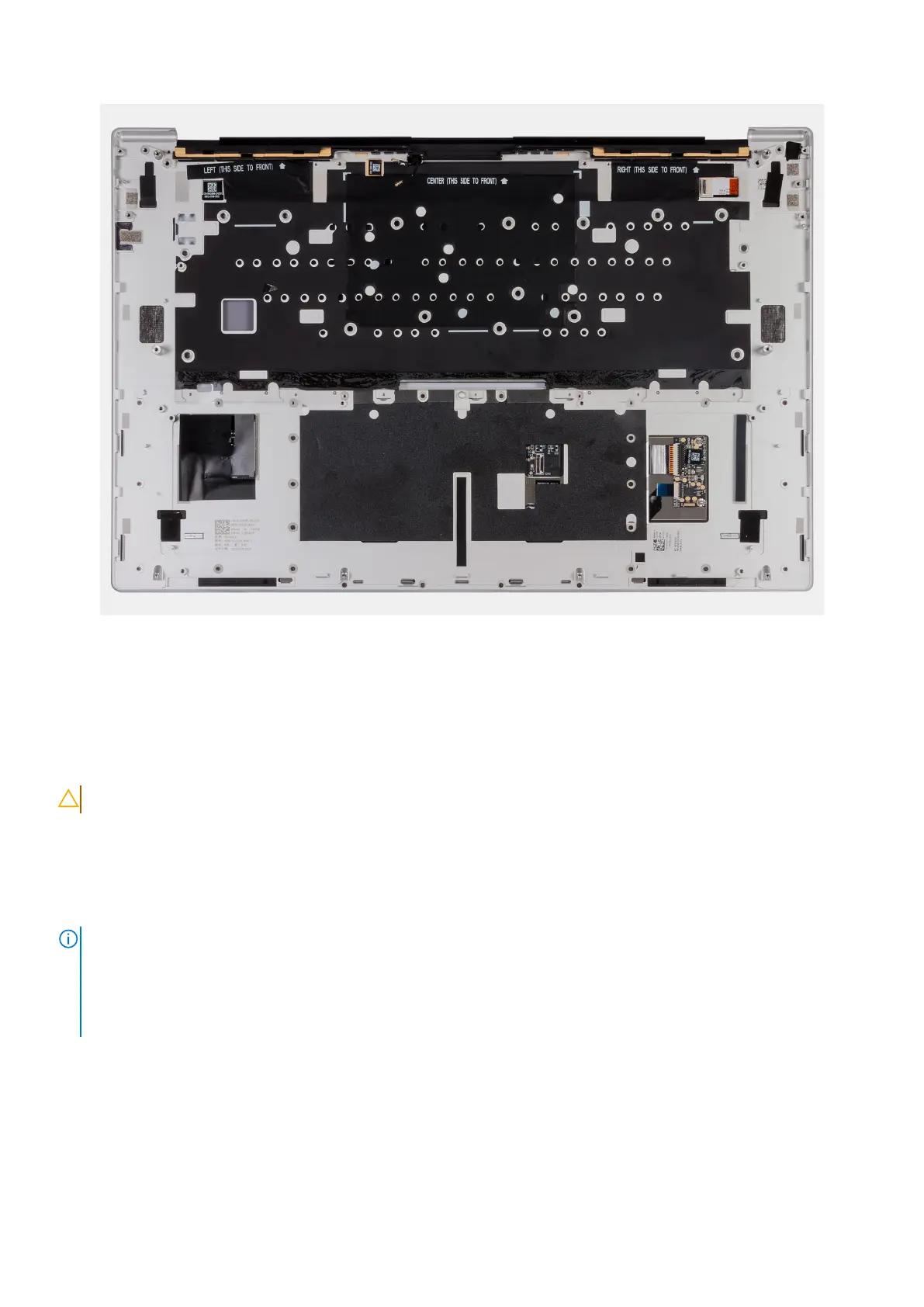

Figure 61. Palm-rest assembly
Steps
After performing the steps in the pre-requisites, you are left with the palm-rest assembly.
Installing the palm-rest assembly
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE:
The replacement palm-rest assembly comes preassembled with these components:
● Palm rest
● Touchpad
● Haptic touch-panel module
● Keyboard-control board
The following image indicates the location of the palm-rest assembly and provides a visual representation of the removal
procedure.
