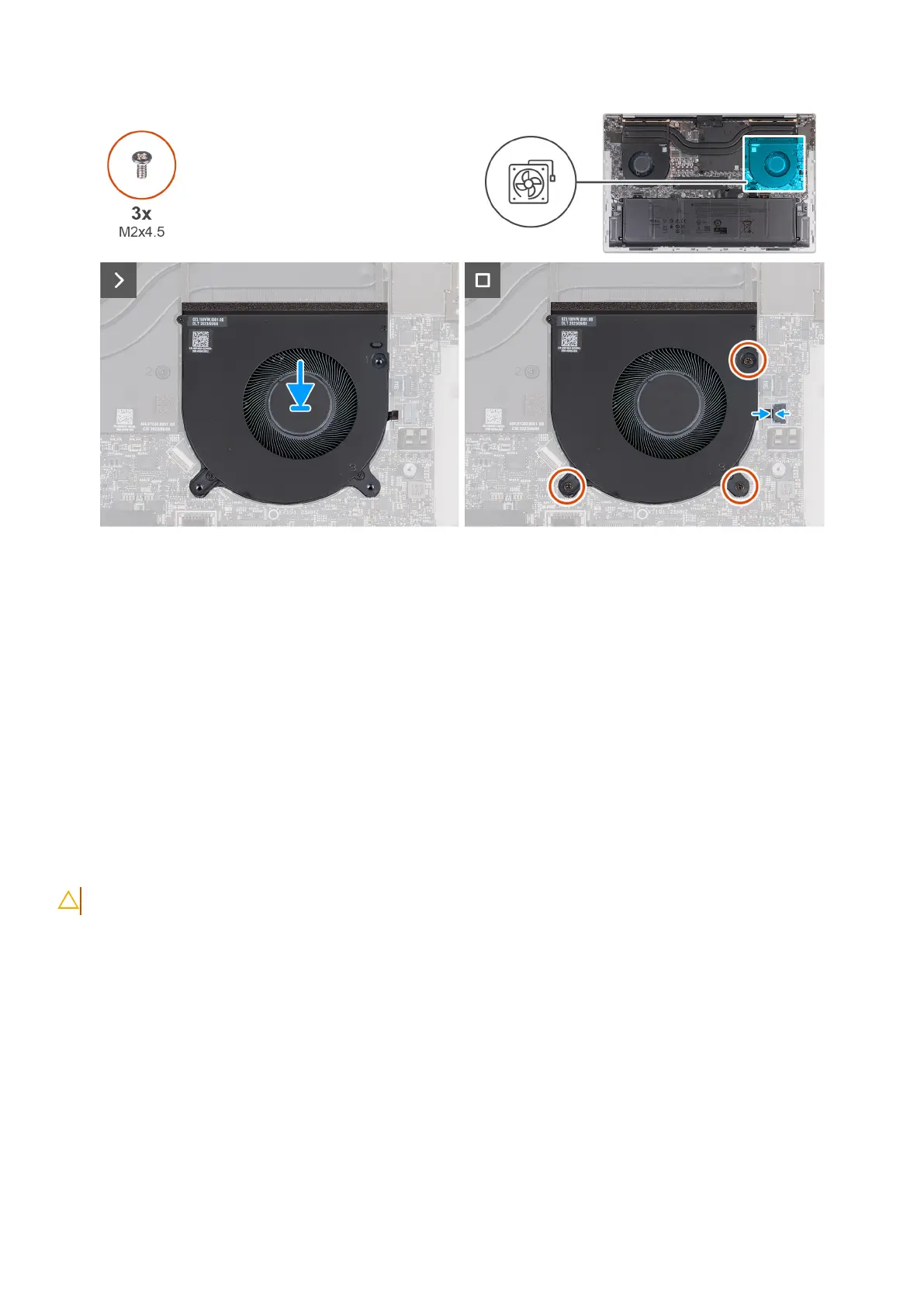

Figure 25. Installing the CPU fan
Steps
1. Align the screw holes on the fan with the screw holes on the system board and palm rest and keyboard assembly.
2. Replace the three screws (M2x4.5) that secure the fan to the system board and palm rest and keyboard assembly.
3. Connect the fan cable to the connector (FAN1) on the system board and close the latch.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the solid-state drive
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image(s) indicate the location of the solid-state drive and provides a visual representation of the removal
procedure.
48
Removing and installing Field Replaceable Units (FRUs)
