Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Phillips screwdriver #1
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

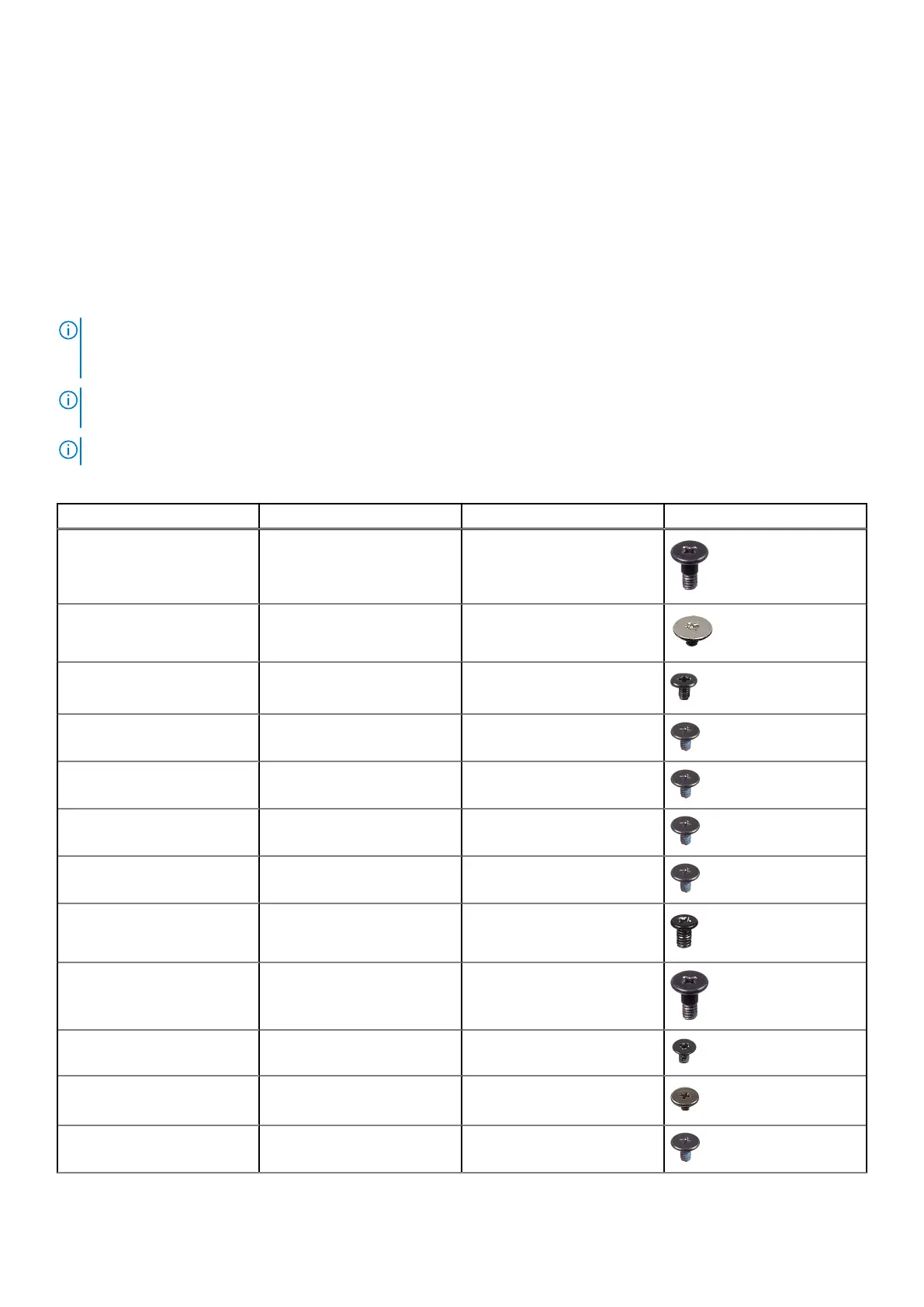

Table 25. Screw list
Component Screw type Quantity Image
Base cover Captive screws 6
Solid-state drive Captive screw 1
WWAN card M1.6x2.3 1
Right fan M1.6x3 2
Left fan M1.6x3 2
Display cable/Left Type-C
bracket
M1.6x3 2
Right Type-C bracket M1.6x3 3
Display assembly M2.5x4 6
Heat sink Captive screws 3
Battery
M2x3 6
Image: M2x3
Right speaker M1.6x1.8 2
WLAN antenna module
M1.6x2
2
36 Working inside your computer
