About this task

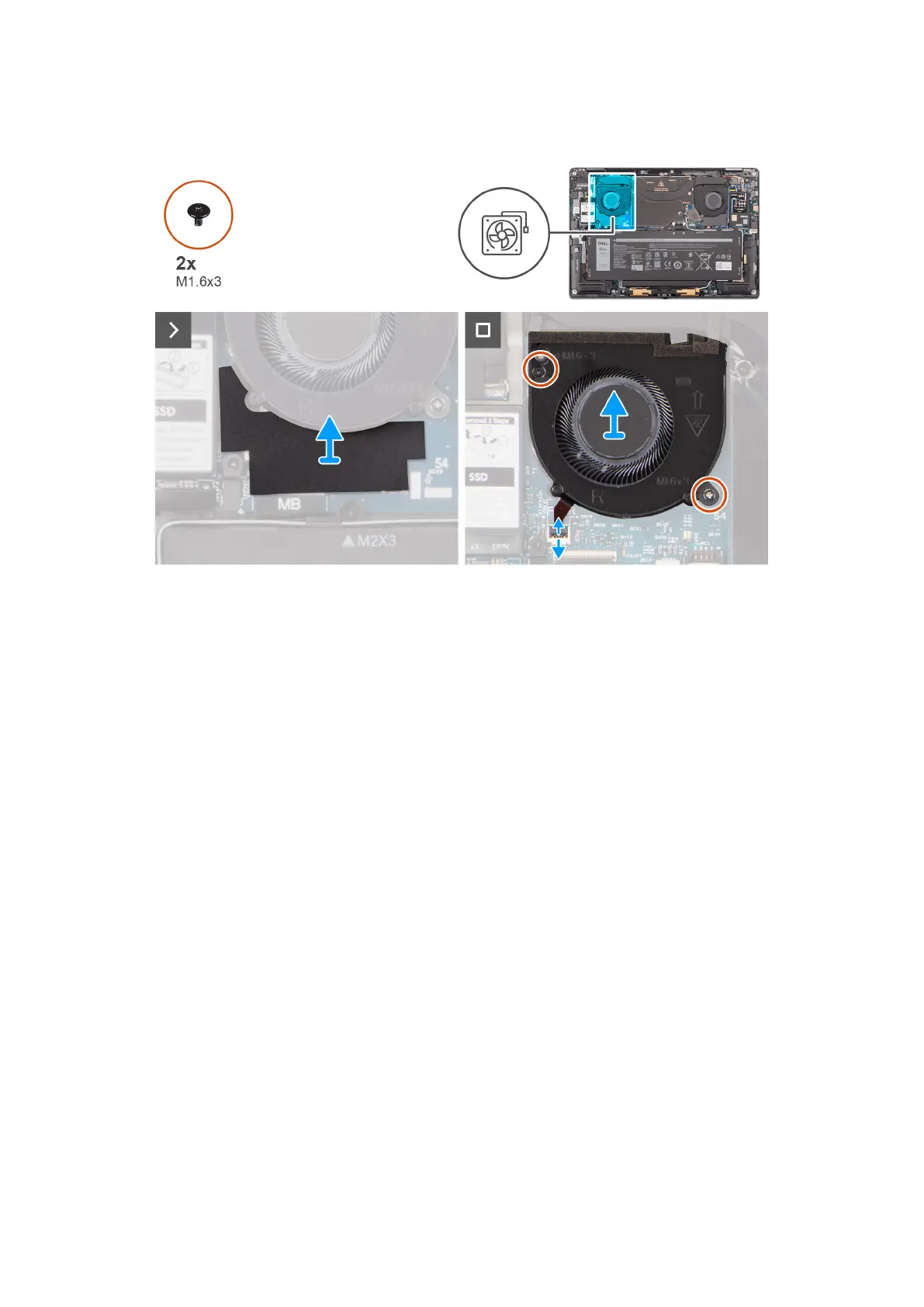

The following image indicates the location of the right fan and provides a visual representation of the removal procedure.
Figure 24. Removing the right fan
Steps
1. Peel off the mylar sticker from the system board.
2. Disconnect the right-fan FPC cable from the connector (FANR) on the system board.
3. Remove the two (M1.6x3) screws that secure the right fan to the palm-rest assembly and keyboard.
4. Lift the right fan off the palm-rest assembly and keyboard.
Installing the right fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the right fan and provides a visual representation of the installation procedure.
