Installing the heat sink
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

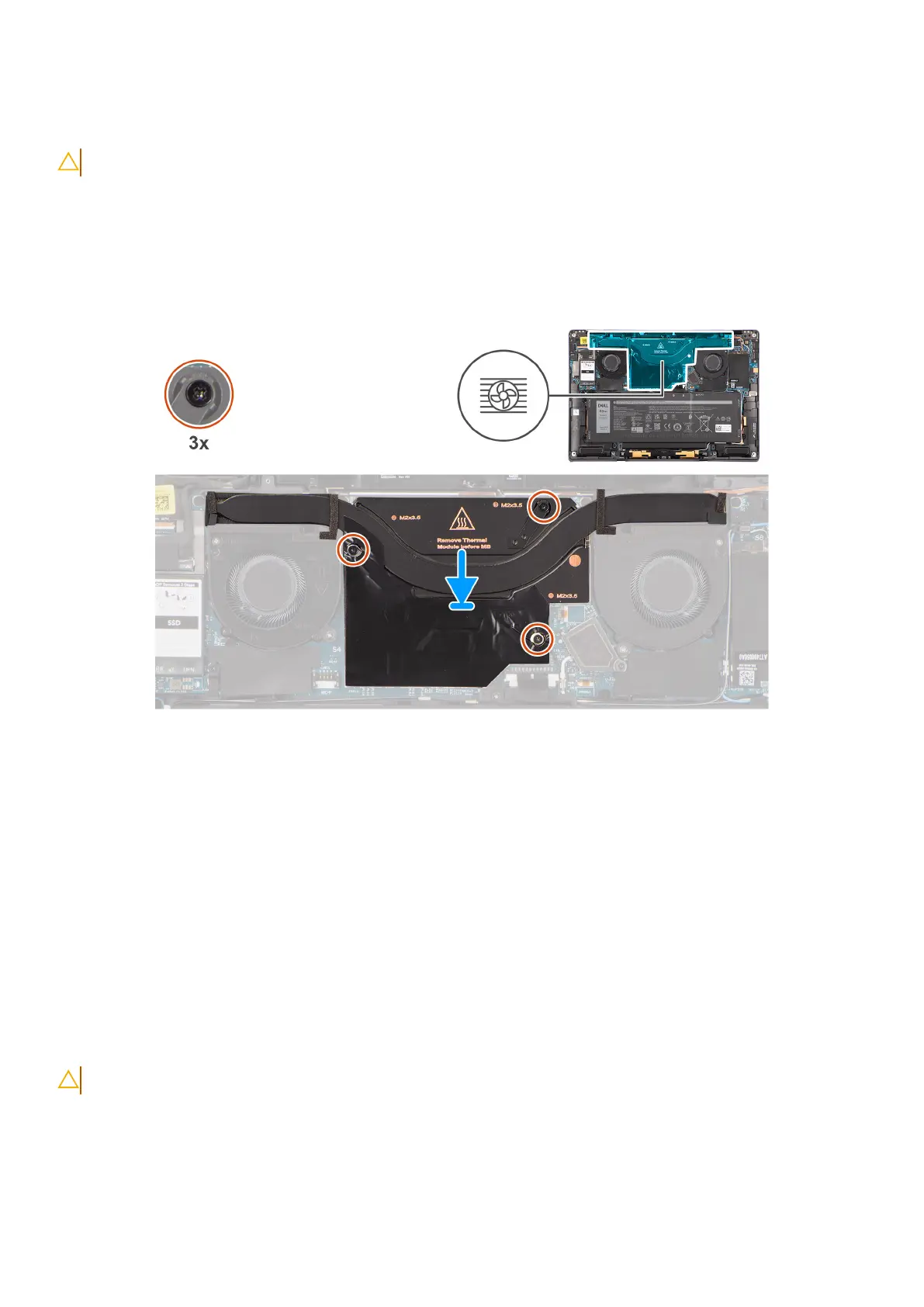

The following image indicates the location of the heat sink and provides a visual representation of the installation procedure.
Figure 44. Installing the heat sink
Steps
1. Align the screw holes on the heat sink with the screw holes on the system board.
2. Tighten the three captive screws that secure the heat sink to the system board.
Next steps
1. Install the base cover.
2. Install the Nano-SIM card slot.
3. Follow the procedure in after working inside your computer.
Display assembly
Removing the display assembly
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in before working inside your computer.
