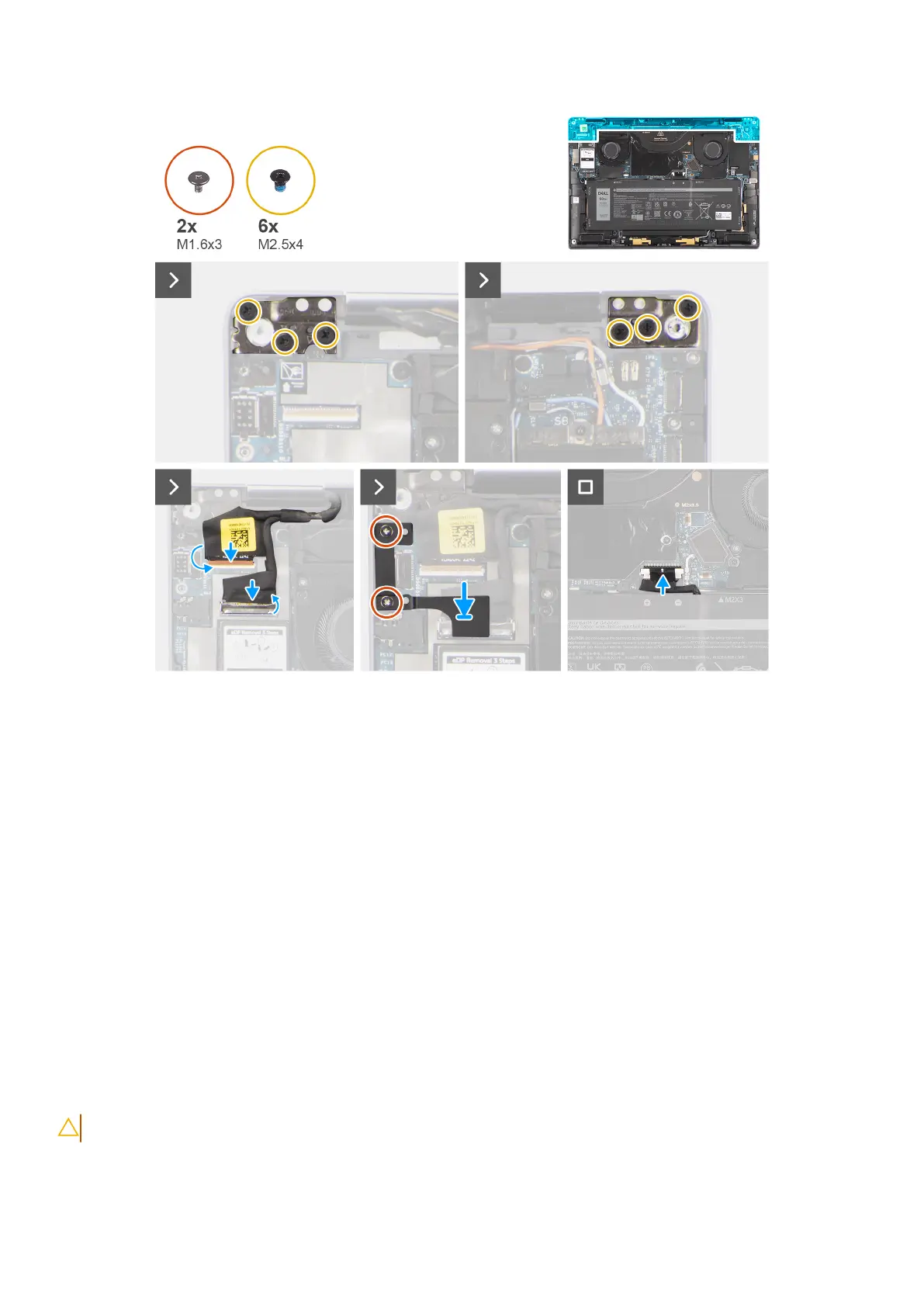

Figure 49. Installing the display assembly
Steps
1. Align and place the palm-rest assembly under the hinges of the display assembly.
2. Replace the six (M2.5x4) screws to secure the display assembly to the computer.
3. Connect the display and camera cable to the connectors (CAMERA) on the system board.
4. Align and place the display cable/Type-C bracket over the screw holes on the system board.
5. Replace the two (M1.6x3) screws to secure the display cable and Type-C bracket in place.
6. Connect the battery cable to the battery cable connector on the system board.
Next steps
1. Install the base cover.
2. Install the Nano-SIM card tray.
3. Follow the procedure in after working inside your computer.
System-board
Removing the system board
CAUTION: The information in this removal section is intended for authorized service technicians only.
