NOTE: The cables for the WLAN antennas are routed over the plastic bracket at the upper-right corner and within the
routing guides along the bottom-right side of the battery. You must be careful when unrouting the antenna cables from
their routing guides while they are still attached to the WLAN card.
7. Remove the Darwin cable (D2) and unroute it from the routing guides along the top side of the battery.
8. Unroute the black and white WWAN antenna cables from the routing guides along the side of the battery.
9. Unroute the M1 blue WWAN antenna cable from the routing guides along the left side of the WWAN card and the upper-
right corner of the battery.
10. Remove the six (M2x3) screws that secure the battery to the palm-rest and keyboard assembly.
11. Lift the battery away from the computer.
Installing the battery
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the battery and provide a visual representation of the installation procedure.

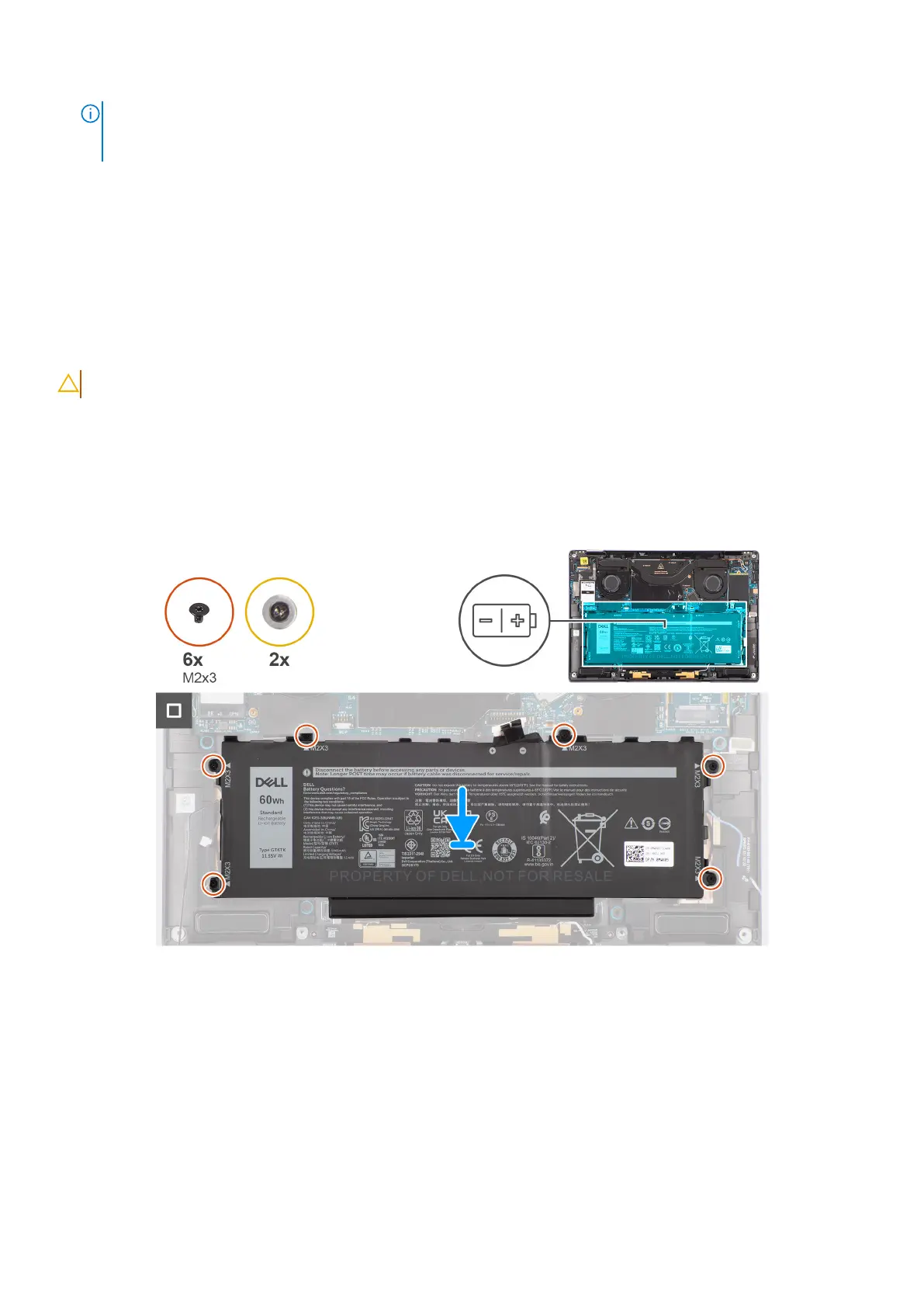

Figure 40. Installing the battery
60
Removing and installing Field Replaceable Units (FRUs)
