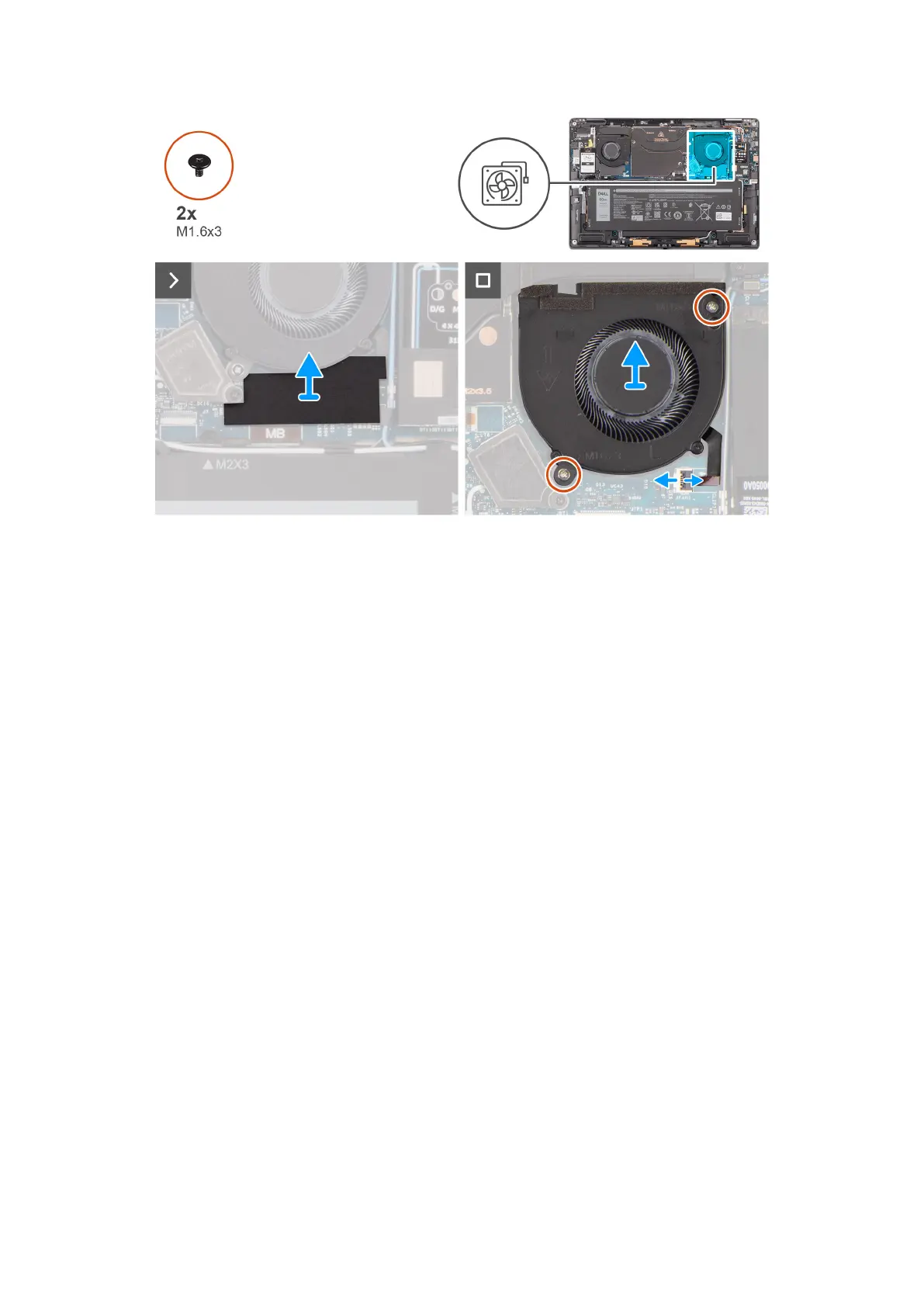

Figure 26. Removing the left fan
Steps
1. Peel off the mylar sticker from the system board.
2. Disconnect the left-fan FPC cable from the connector (FANL) on the system board.
3. Remove the two (M1.6x3) screws that secure the left fan to the palm-rest assembly.
4. Lift the left fan off the palm-rest assembly.
Installing the left fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the left fan and provides a visual representation of the installation procedure.
48
Removing and installing Customer Replaceable Units (CRUs)
