2. Affix the adhesive tapes to secure the battery to the system.
3. Connect the battery cable to the connector on the battery.
4. Replace the three M2x3 screws to secure the battery to the computer.
5. Install the:
a. base cover
6. Follow the procedure in After working inside your computer.
Solid State Drive
Removing M.2 Solid State Drive
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

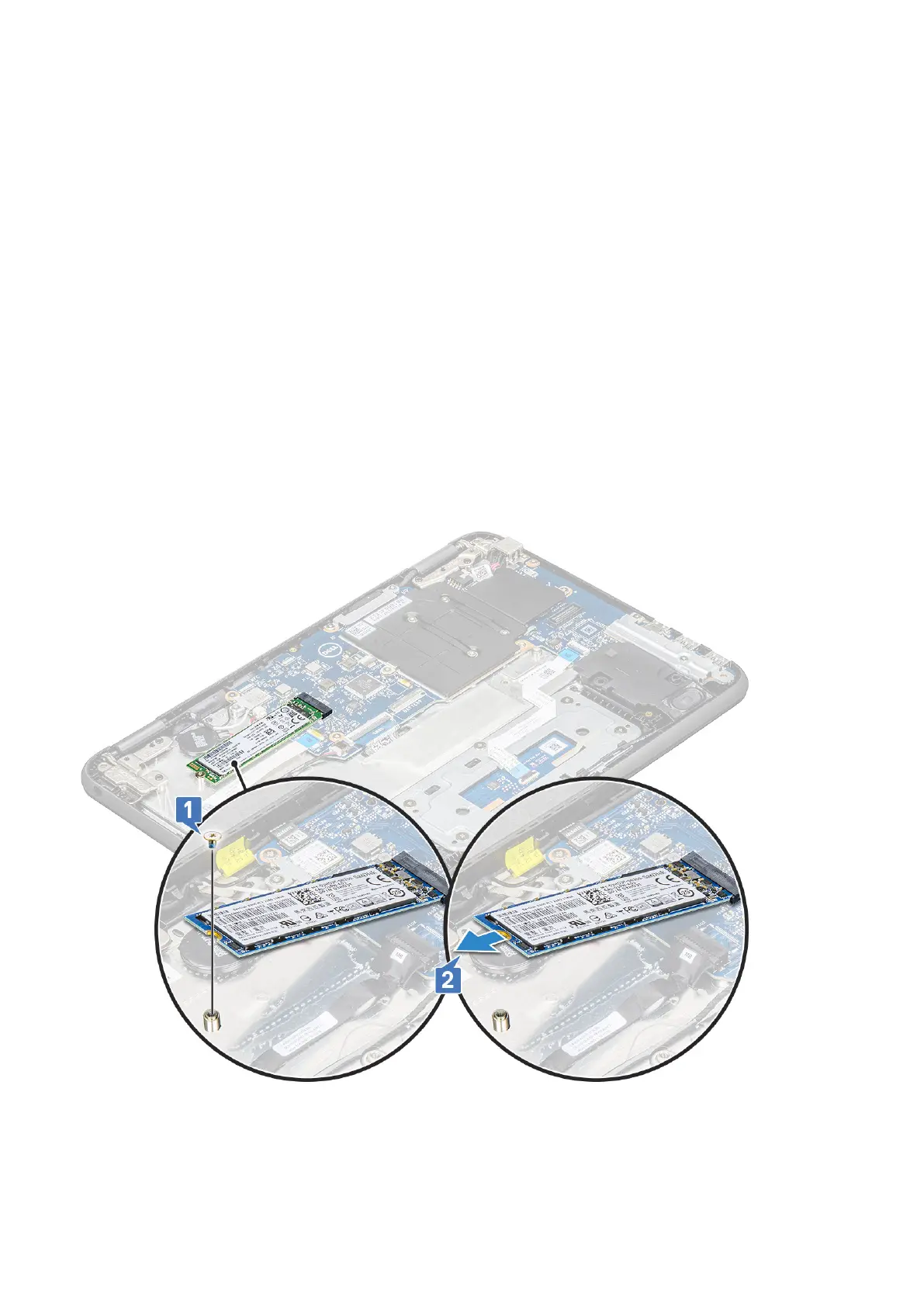

3. To remove the SSD:
a. Remove the M2x3 screw that secures the SSD card [1].
The SSD pops up.
b. Slide and lift the SSD card from the system board [2].
Installing M.2 Solid State Drive
1. Align the notch on the SSD card with the tab on the SSD card connector and slide the card into the slot.
28
