Display assembly
Removing display assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

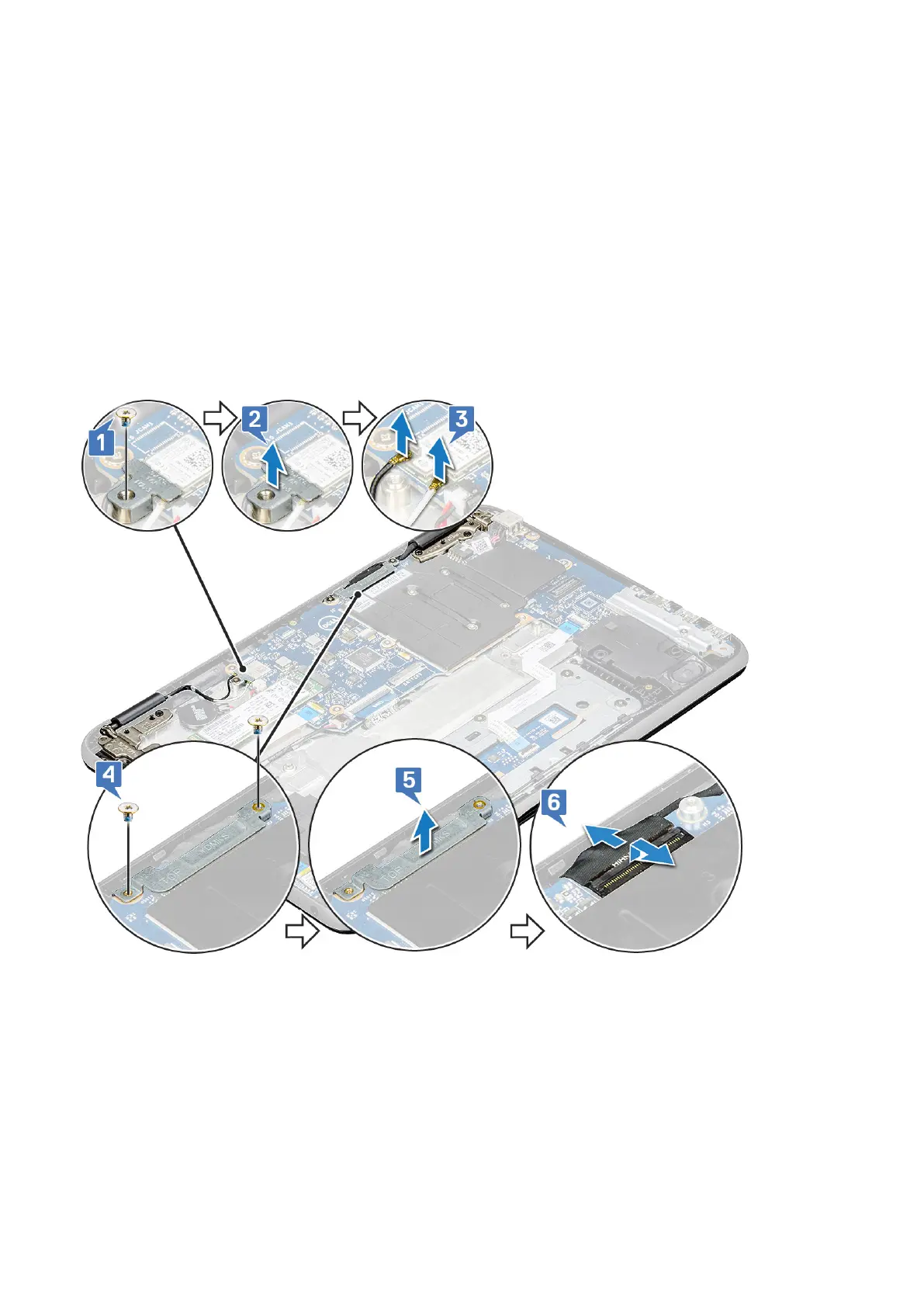

3. To remove cables:
a. Remove the M2x3 screw [1] and lift the metal bracket that secures the WLAN card on the system board [2].
b. Disconnect the WLAN cables [3].
c. Remove the two M2x3 screws [4] and lift the metal bracket that secures the display cable on the computer [5].
d. Lift the latch, and disconnect the cable [6].
4. Open the palm rest, turn over the system and place it at 90 degree angle with the keyboard facing the table [2].
Disassembly and reassembly
43
