Power connector port
Removing power connector port
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
3. To remove the power connector port:

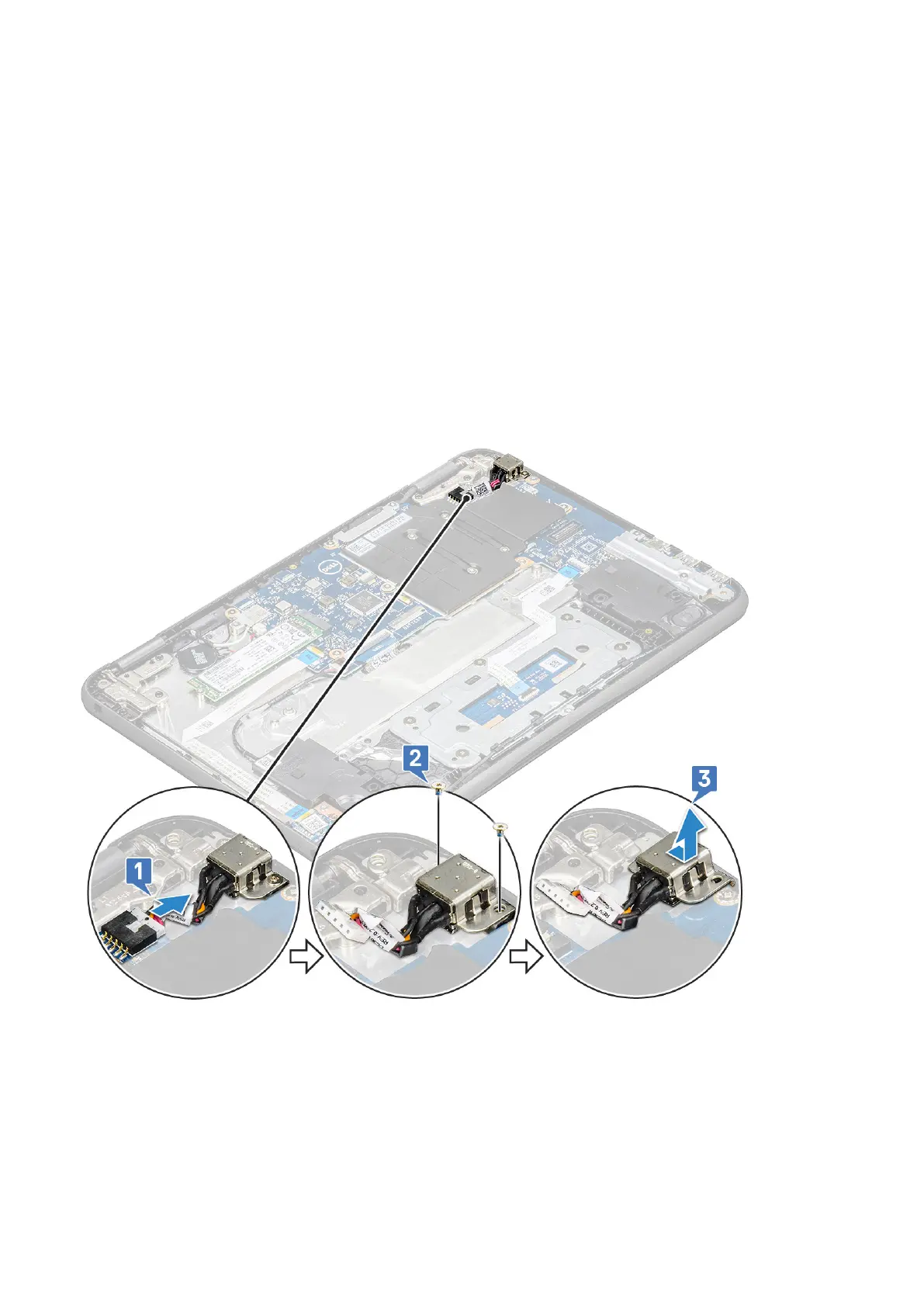

a. Disconnect the power connector cable from the connector on the system board [1].
b. Remove the two M2x3 screws that secure the power connector port on the computer [2].
c. Slide and lift the power connector port from the computer [3].
Installing power connector port
1. Insert the power connector port into the slot on the computer.
2. Replace the two M2x3 screws that secure the power connector port to the computer.
3. Connect the power connector cable to the connector on the system board.
4. Install the:
a. battery
