Audio board
Removing audio board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
3. To remove the audio board:

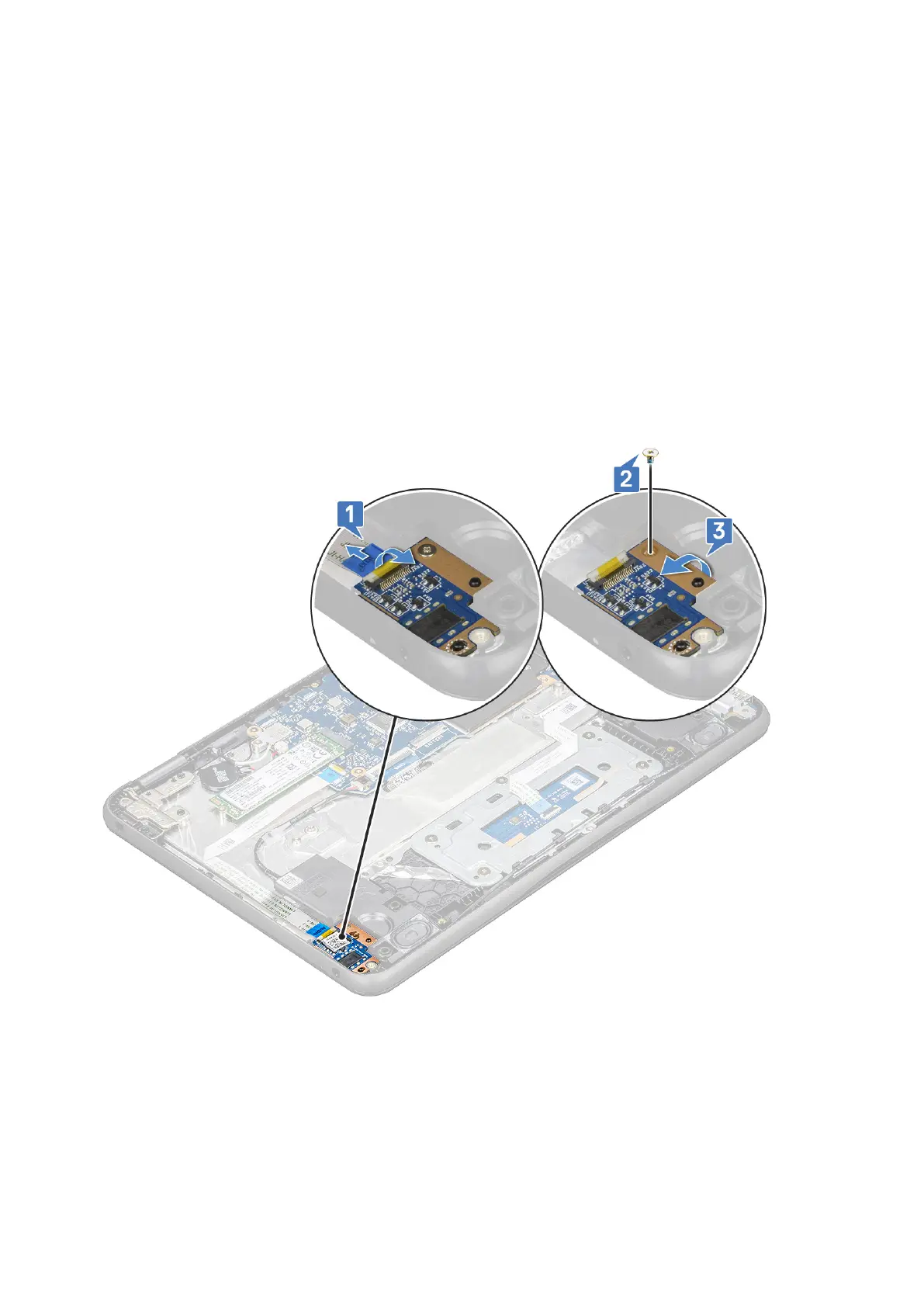

a. Lift the latch and disconnect the audio cable from the connector on the audio board [1].
b. Remove the M2x3 screw that secures the audio board to the system [2].
c. Slide and lift the audio board from the system [3].
Installing audio board
1. Insert the audio board into the slot on the computer.
2. Replace the M2x3 screw that secure the audio board to the computer.
3. Connect the audio cable to the connector on the audio board.
4. Install the:
a. battery
Disassembly and reassembly
