2. Replace the display panel to align with the screw holders on the display assembly.

3. Replace the four M2x3 screws to secure the display panel to the display assembly.

4. Install the:

a. display bezel

b. display assembly

c. battery

d. base cover

5. Follow the procedure in After working inside your computer

Camera

Removing camera

1. Follow the procedure in Before working inside your computer.

NOTE: When replacing the display cable onto the display back- cover of the Latitude 3190, on-site technicians must

first disconnect the cable from the camera module, and carefully peel back the pieces of aluminum foil securing the

display cable to the display back-cover, and then re-adhere the foil after replacing the display cable, as indicated in the

image below.

NOTE: Technicians should note that the display hinges, display cable, and camera are also separate service parts that

can be individually replaced

Remove the:

a. base cover

b. battery

c. display assembly

d. display bezel

e. display panel

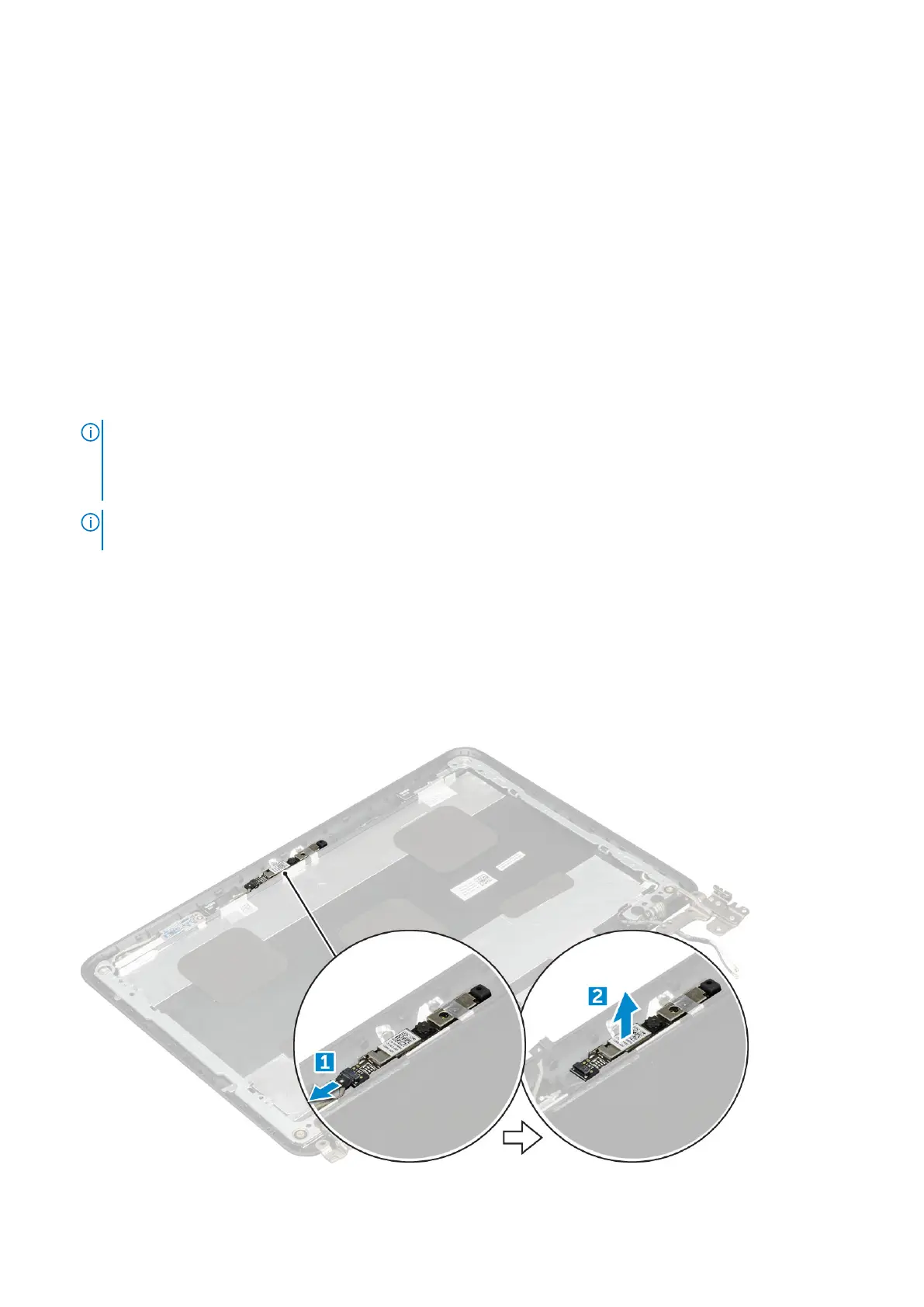

3. To remove camera:

a. Disconnect the camera cable from the connector [1].

b. Lift the camera from the display back cover [2].

Disassembly and reassembly
