Replacing the display hinges
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

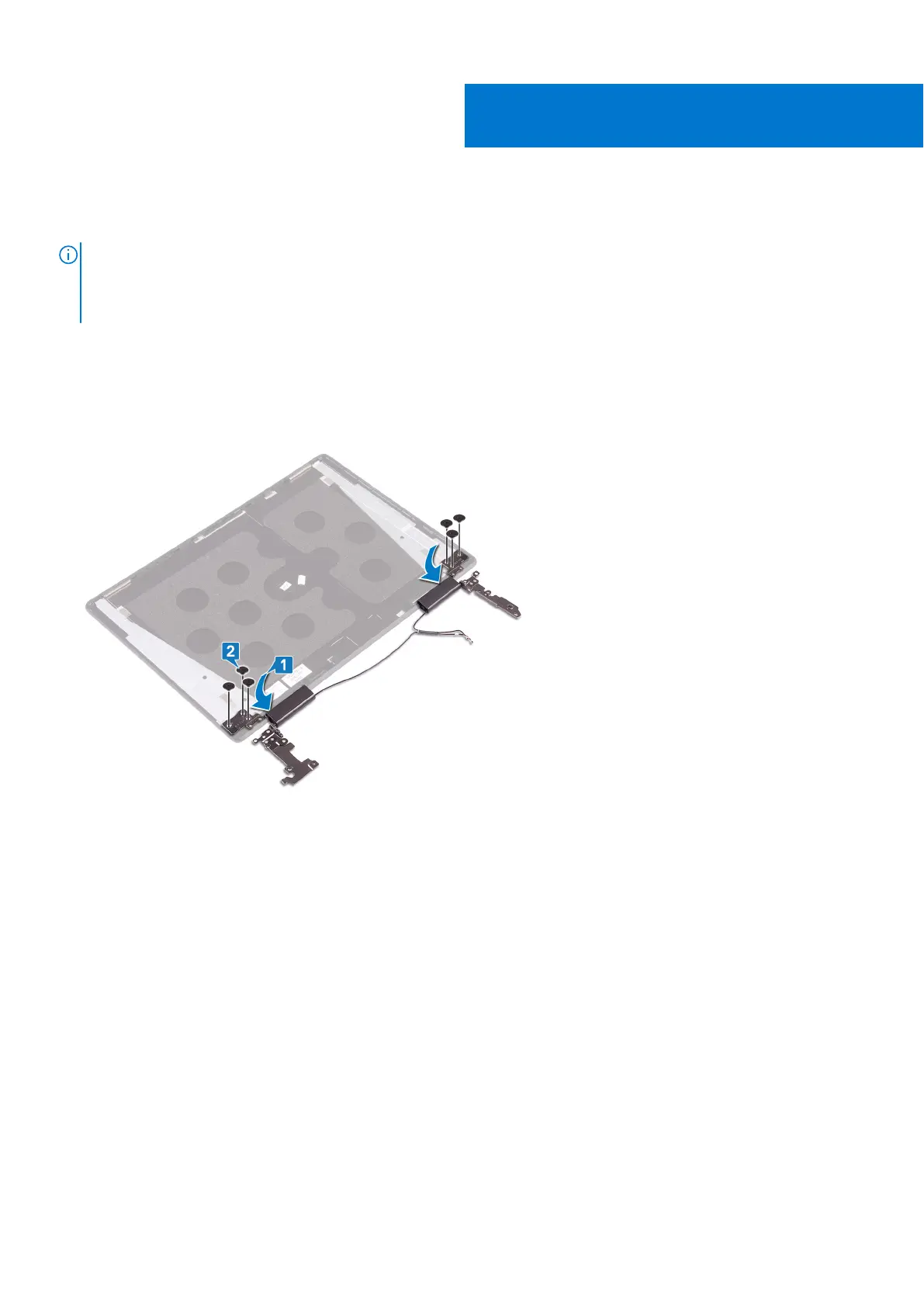

1. Align the screw holes on the hinges and brackets with the screw holes on the display back cover.
2. Replace the six screws (M2.5x2.5) that secure the hinges to the display back cover.
Post-requisites
1. Replace the display panel.
2. Replace the display assembly.
3. Replace the heat sink.
4. Replace the fan.
5. Replace the wireless card.
6. Replace the base cover.
