100 Installing System Components
Removing the Central Riser Board
CAUTION: Only trained service technicians are authorized to remove the system cover and access any of the
components inside the system. See your Product Information Guide for complete information about safety
precautions, working inside the computer, and protecting against electrostatic discharge.
1 Press the blue release tab in the center of the central riser to release the board from the system board
socket while easing both ends of the riser upward.
2 Lift the central riser board from the two guide pins on either end, and draw the riser away from the
system board.

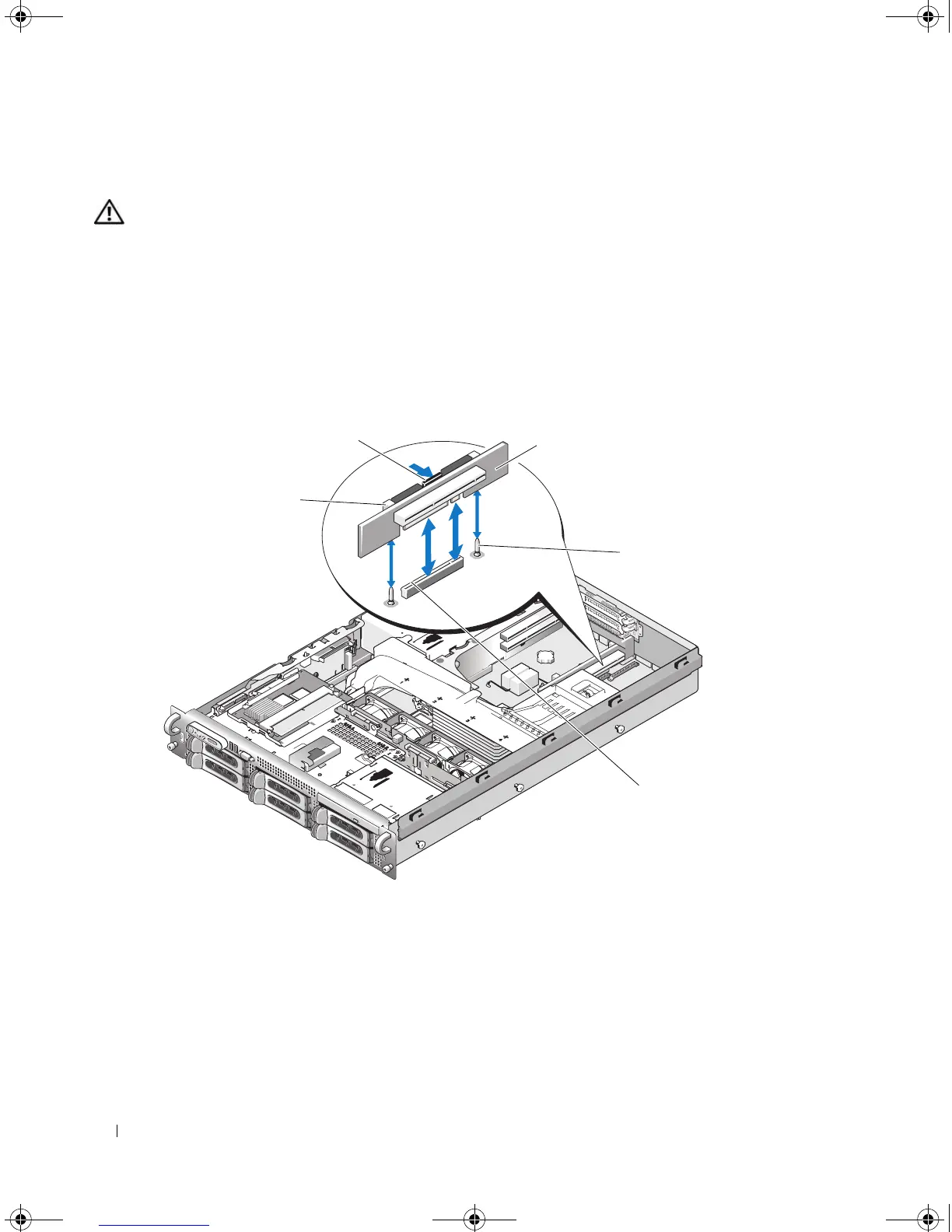

Figure 3-32. Replacing the Central Riser Board
Installing the Central Riser Board
1 Fitting the two guides over the guide pins on the system board, gently lower the central riser board
until the board connector is firmly seated into the system board socket. See Figure 3-32.
1 card guide (2) 2 release tab 3 central riser board
4 guide pins (2) 5 system board socket
4
3
2
5
1
Book.book Page 100 Friday, February 3, 2006 11:09 AM

Dell PowerEdge 2950 Specifications

General

Tcase	67 °C
Bus type	FSB
Stepping	E0
FSB Parity	Yes
Processor code	SLBBP
Processor cache	12 MB
Processor cores	4
Processor model	E5405
System bus rate	- GT/s
Processor series	Intel Xeon 5400 Series
Processor socket	LGA 771 (Socket J)
Processor codename	Harpertown
Motherboard chipset	Intel® 5000X
Processing Die size	214 mm²
Processor frequency	2 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	1333 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	6
Number of Processing Die Transistors	820 M
HDD size	3.5 \
HDD capacity	160 GB
HDD interface	Serial ATA
Total storage capacity	3320 GB
Maximum storage capacity	6 TB
Graphics card	ES1000
Memory slots	8x DIMM
Internal memory	4 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 2 GB
Maximum graphics card memory	16 MB
Networking features	Broadcom NetXtreme IITM 5708 Gigabit5 Ethernet NIC
Supported network protocols	TOE (TCP/IP)
Other network protocols supported	iSCSI Boot
PS/2 ports quantity	0
USB 2.0 ports quantity	5
Bundled software	Symantec Backup ExecTM 12.5 Symantec Backup ExecTM System Recovery 8.5 CommVault 7.0 Vizioncore
Compatible operating systems	Microsoft Windows Server 2008, Microsoft Windows Server 2003 Red Hat Linux Enterprise SUSE Linux Enterprise Server 10 x86-64 VMware ESX 3.5
Chassis type	Rack (2U)
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	-40 - 65 %
Operating relative humidity (H-H)	20 - 80 %
Certification	FCC (U.S. only) Class A ICES (Canada) Class B CE Mark (EN 55022 Class B, EN55024, EN61000-3-2, EN61000-3-3) VCCI (Japan) Class B BSMI (Taiwan) Class A C-Tick (Australia/New Zealand) Class B SABS (South Africa) Class B CCC (China) Class B MIC (Korea) Class B UL 60950 CAN/CSA C22.2 No. 60950 EN 60950 IEC 60950
Processor ARK ID	33079

Weight and Dimensions

Depth	744 mm
Width	444.3 mm
Height	86.4 mm
Weight	23000 g
