Installing System Components 87
4 Prepare the tape drive for installation.
Ground yourself by touching an unpainted metal surface on the back of the system, unpack the drive
(and controller card, if applicable), and compare the jumper and switch settings with those in the drive
documentation.
5 Aligning the four holes on the tape drive with the four screw holes on the tape drive rails, affix the rails
to the drive.
6 Insert the tape drive along the rails in the media bay. See Figure 3-25.

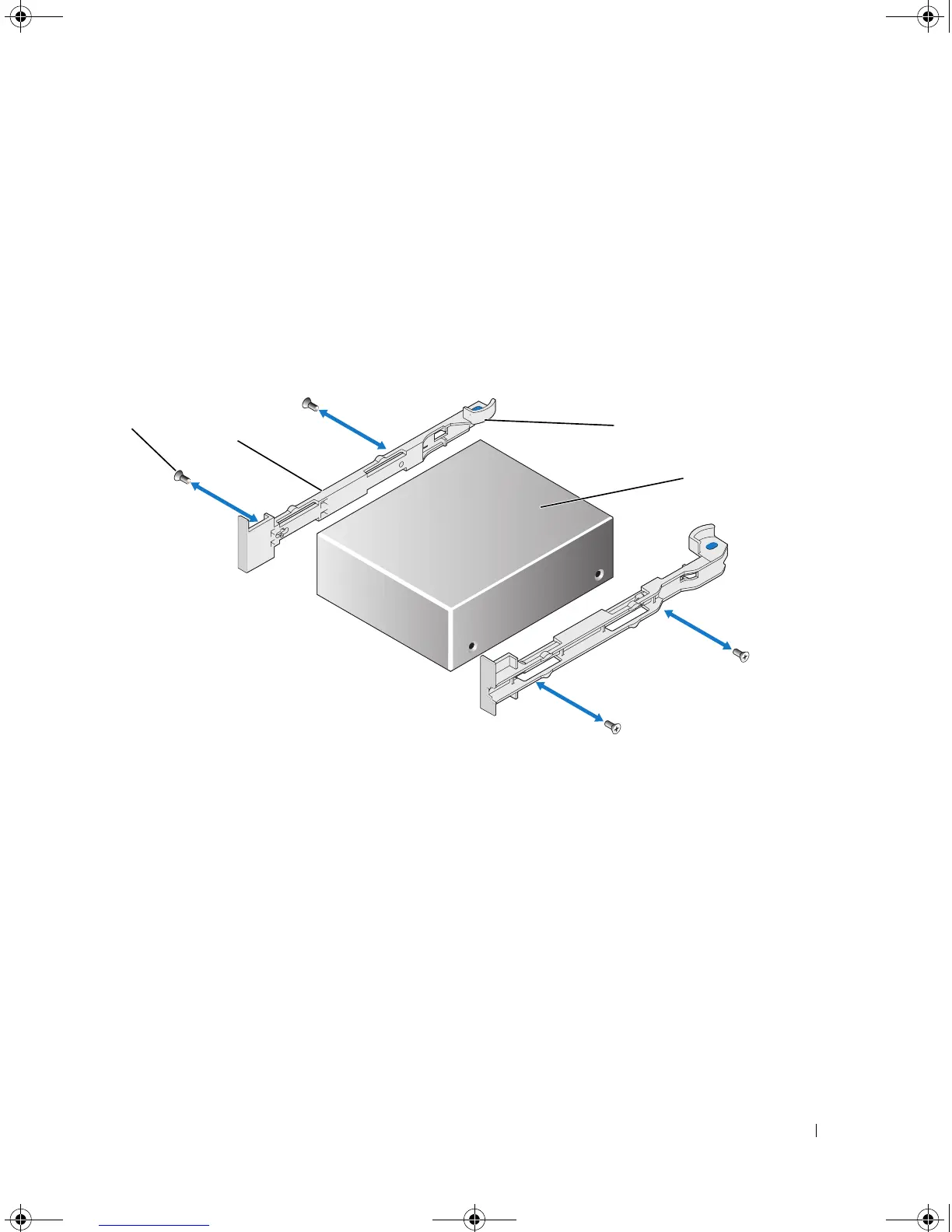

Figure 3-25. Removing and Installing an Internal SCSI Tape Drive
7 Route the tape drive's SCSI interface cable through the tape drive cable retention bracket and connect
it to the connector on the SCSI controller card. See "Removing and Replacing the Tape Drive Cable
Retention Bracket" on page 88.
8 Connect the tape drive power cable to the tape drive power connector on the backplane. See Figure 6-4
or Figure 6-5 for the connector location.
9 Reconnect the system to its electrical outlet and turn the system on, including any attached
peripherals.
10 Perform a tape backup and verification test with the drive as instructed in the software documentation
that came with the drive.
1 screws (4) 2 tape drive rails (2) 3 rail release tabs (2)
4 tape drive
1
2
4
3
Book.book Page 87 Friday, February 3, 2006 11:09 AM

Dell PowerEdge 2950 Specifications

General

Tcase	67 °C
Bus type	FSB
Stepping	E0
FSB Parity	Yes
Processor code	SLBBP
Processor cache	12 MB
Processor cores	4
Processor model	E5405
System bus rate	- GT/s
Processor series	Intel Xeon 5400 Series
Processor socket	LGA 771 (Socket J)
Processor codename	Harpertown
Motherboard chipset	Intel® 5000X
Processing Die size	214 mm²
Processor frequency	2 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	1333 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	6
Number of Processing Die Transistors	820 M
HDD size	3.5 \
HDD capacity	160 GB
HDD interface	Serial ATA
Total storage capacity	3320 GB
Maximum storage capacity	6 TB
Graphics card	ES1000
Memory slots	8x DIMM
Internal memory	4 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 2 GB
Maximum graphics card memory	16 MB
Networking features	Broadcom NetXtreme IITM 5708 Gigabit5 Ethernet NIC
Supported network protocols	TOE (TCP/IP)
Other network protocols supported	iSCSI Boot
PS/2 ports quantity	0
USB 2.0 ports quantity	5
Bundled software	Symantec Backup ExecTM 12.5 Symantec Backup ExecTM System Recovery 8.5 CommVault 7.0 Vizioncore
Compatible operating systems	Microsoft Windows Server 2008, Microsoft Windows Server 2003 Red Hat Linux Enterprise SUSE Linux Enterprise Server 10 x86-64 VMware ESX 3.5
Chassis type	Rack (2U)
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	-40 - 65 %
Operating relative humidity (H-H)	20 - 80 %
Certification	FCC (U.S. only) Class A ICES (Canada) Class B CE Mark (EN 55022 Class B, EN55024, EN61000-3-2, EN61000-3-3) VCCI (Japan) Class B BSMI (Taiwan) Class A C-Tick (Australia/New Zealand) Class B SABS (South Africa) Class B CCC (China) Class B MIC (Korea) Class B UL 60950 CAN/CSA C22.2 No. 60950 EN 60950 IEC 60950
Processor ARK ID	33079

Weight and Dimensions

Depth	744 mm
Width	444.3 mm
Height	86.4 mm
Weight	23000 g
