Table 3. Features available on the front of the system (continued)
Item Ports, panels, and
slots
Icon Description
2 VGA port Enables you to connect a display device to the system. For more
information, see the VGA port specifications section.
3 Right control panel N/A Contains the power button, USB port, iDRAC Direct micro port,
and the iDRAC Direct status LED.
4 Information tag
The Information tag is a slide-out label panel that contains
system information such as Service Tag, NIC, MAC address,
and so on. If you have opted for the secure default access
to iDRAC, the Information tag also contains the iDRAC secure
default password.
5 Drive N/A
Enables you to install drives that are supported on your system.
For more information about drives, see the Drives section.
For more information about the ports, see the Dell EMC PowerEdge R650xs Technical Specifications on the product
documentation page.
Left control panel view

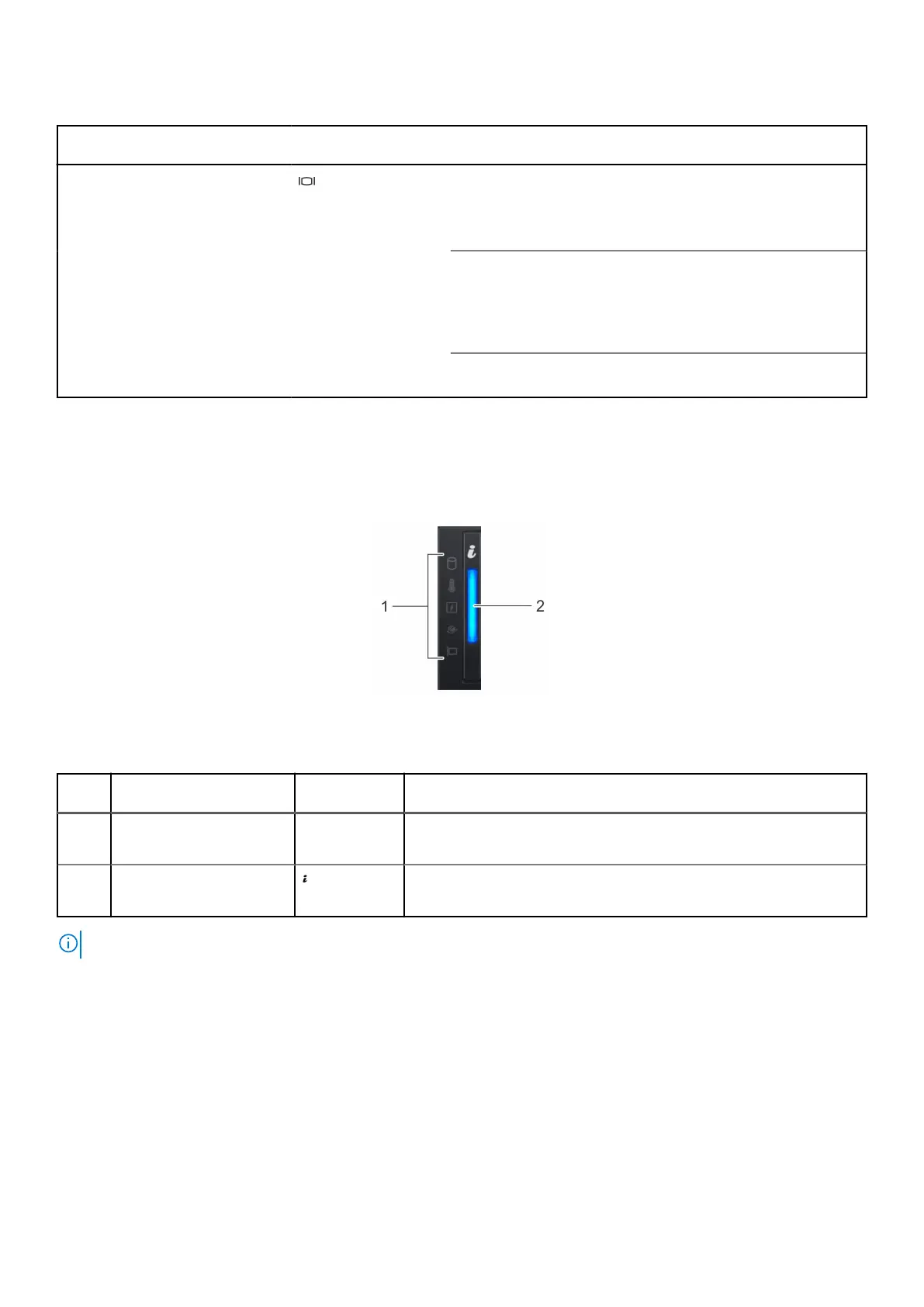

Figure 4. Left control panel
Table 4. Left control panel
Item Indicator, button, or
connector
Icon Description
1 Status LED indicators NA
Indicates the status of the system. For more information, see the
Status LED indicators section.
2 System health and system
ID indicator
Indicates the status of the system. For more information, see the
System health and system ID indicator codes section.
NOTE: For more information about the indicator codes, see the System diagnostics and indicator codes section.
Dell EMC PowerEdge R650xs system overview 11

Dell PowerEdge R650XS RD8NP Specifications

General

Brand	Dell
Model	PowerEdge R650XS RD8NP
Category	Server
Language	English
