Table 6. Rear view of the system (continued)
Item Ports, panels, or slots Icon Description
12 NIC ports
The NIC ports that are integrated on the system board provide
network connectivity. These NIC ports can also be shared with
iDRAC when iDRAC network settings is set to shared mode.
For more information about the ports, see the Dell EMC PowerEdge R650xs Technical Specifications on the product
documentation page.
Inside the system

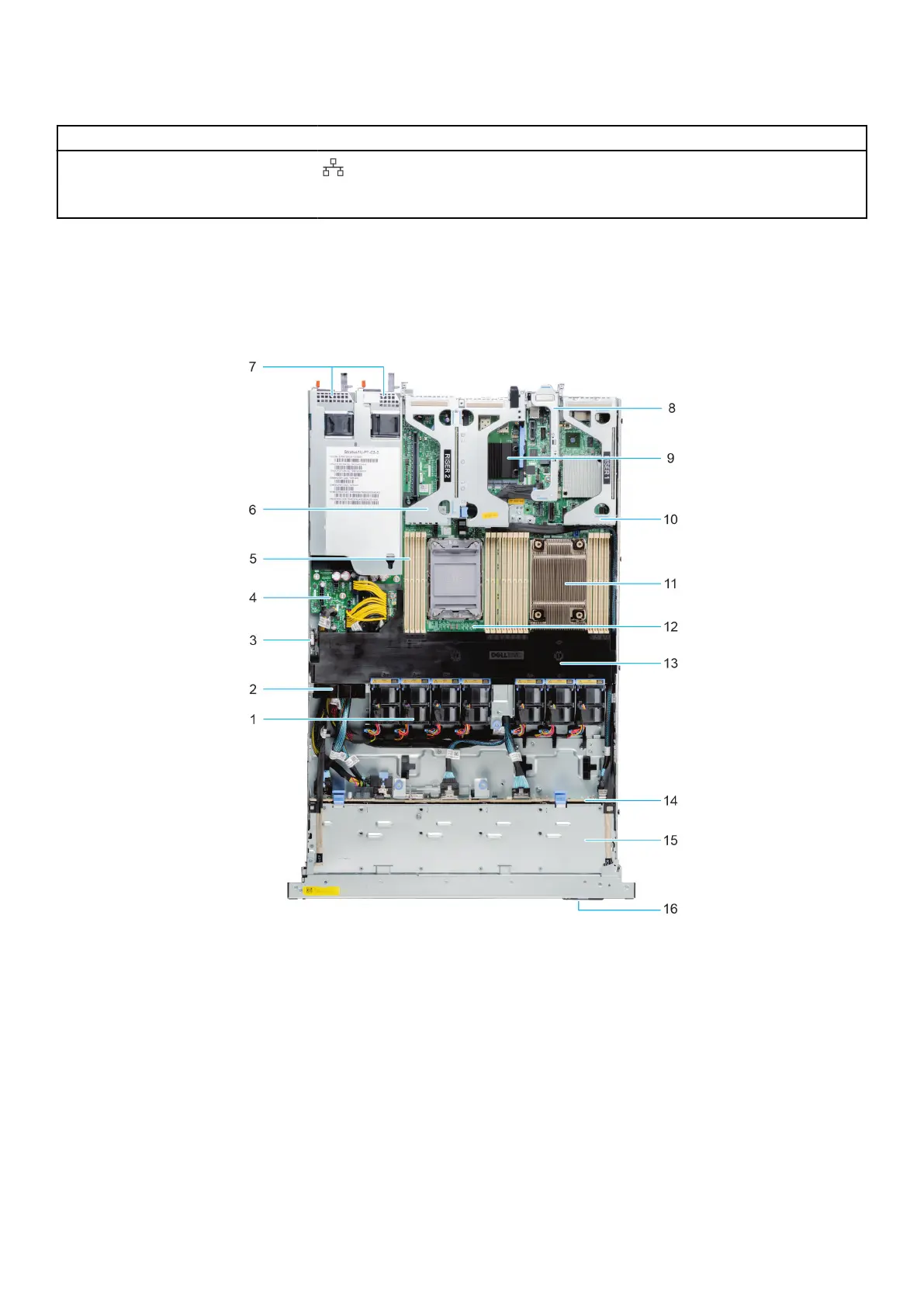

Figure 7. Inside the system
1.
Fan 2. Cable retention latch
3. Intrusion switch 4. Power interposer board
5. Memory module slots 6. Riser 2a/2b/2c
7. PSU 1 and PSU 2 8. BOSS riser
9. OCP 10. Riser 1
11. Heat sink 12. System board
13. Air shroud 14. Drive backplane
15. Backplane cover 16. Information tag
14 Dell EMC PowerEdge R650xs system overview
