Rear view of the system

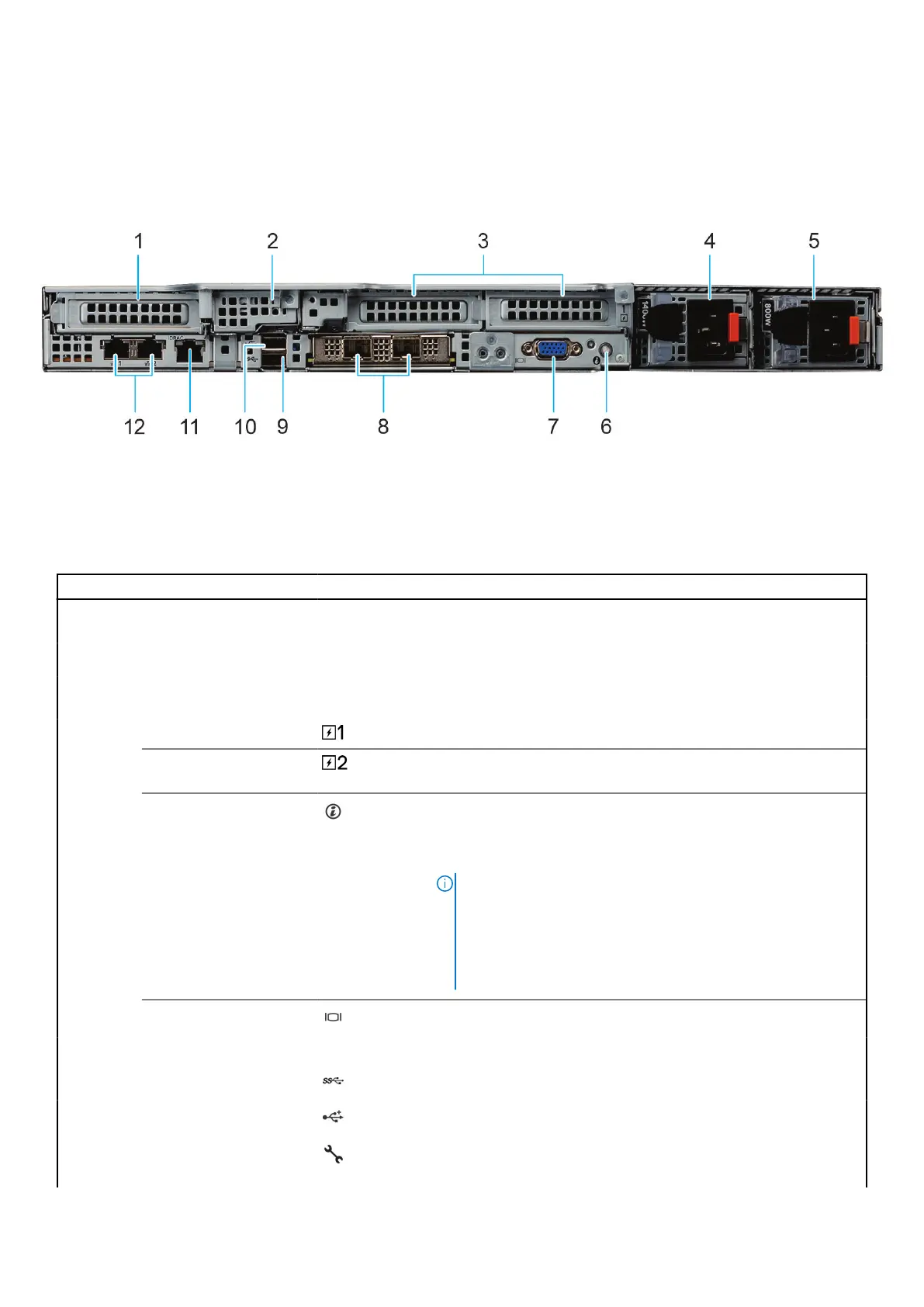

Figure 6. Rear view of the system
Table 6. Rear view of the system
Item Ports, panels, or slots Icon Description
1 PCIe expansion card riser
1
N/A
Enables you to connect PCI Express expansion cards.
2 BOSS riser N/A
Enables you to connect BOSS card.
3 PCIe expansion card riser
2c
N/A
Enables you to connect PCI Express expansion cards.
4 Power supply unit (PSU 1) Indicates the PSU.
5
Power supply unit (PSU
2)
Indicates the PSU.
6
System identification
button
Press the system ID button:
● To locate a particular system within a rack.
● To turn the system ID on or off.
To reset iDRAC, press and hold the button for 16 seconds.
NOTE:
● To reset iDRAC using system ID, ensure that the system ID
button is enabled in the iDRAC setup.
● If the system stops responding during POST, press and hold
the system ID button (for more than five seconds) to enter
the BIOS progress mode.
7
VGA port Enables you to connect a display device to the system.
8 OCP NIC port N/A This port supports OCP 3.0.
9 USB 3.0 port This port is USB 3.0-compliant.
10 USB 2.0 port This port is USB 2.0-compliant.
11 iDRAC dedicated port
Enables you to remotely access iDRAC. For more information, see
the iDRAC User’s Guide at www.dell.com/poweredgemanuals.
Dell EMC PowerEdge R650xs system overview 13
